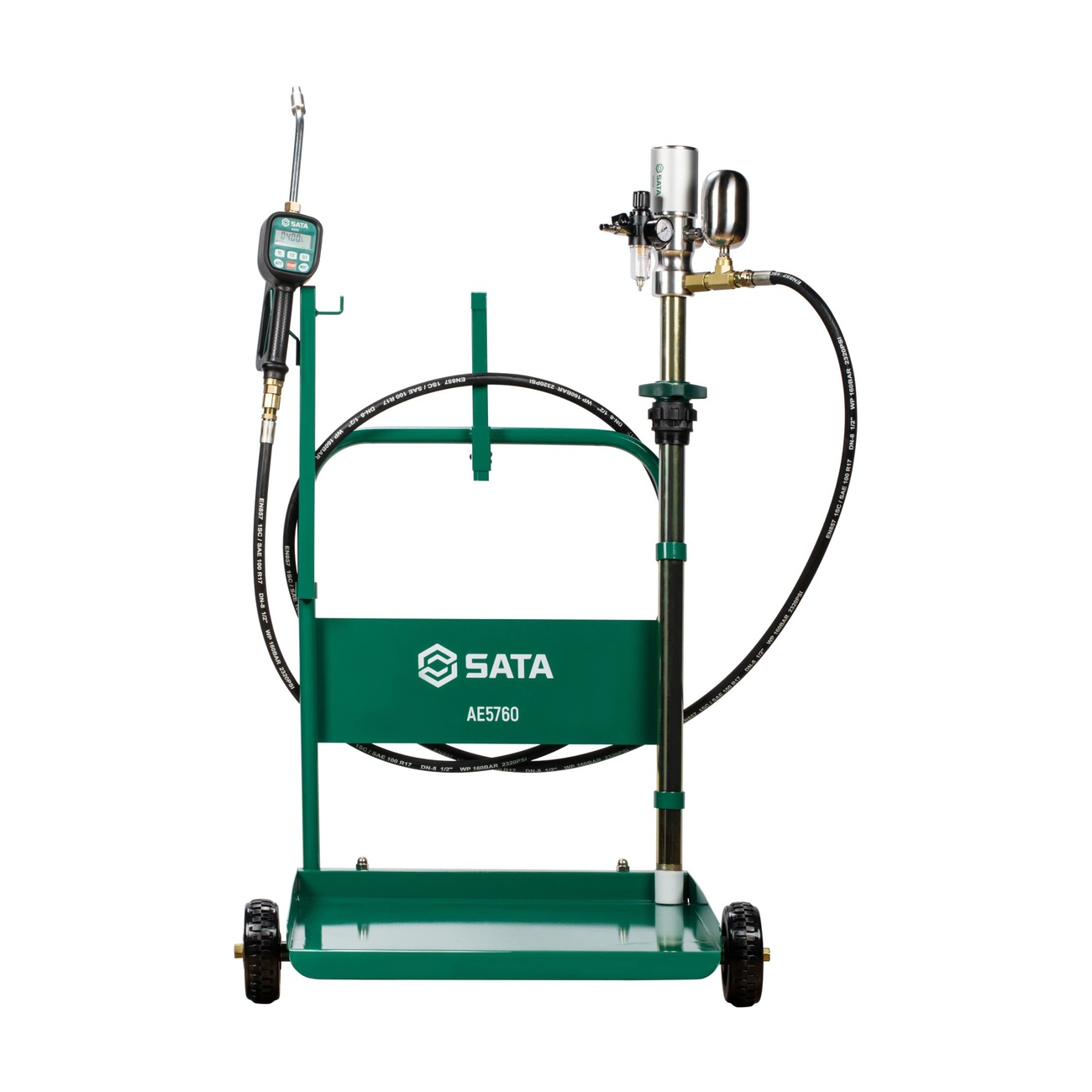

Product No. AE5760
Trolley load capacity 180KG-220KG
Pump compression ratio 3:1
Pump working pressure 5-8bar
Pump maximum output pressure <24bar
Pump gas consumption 100L/min
Pump output flow <18L/min
Pump suction pipe diameter 42mm
Noise of pneumatic oil pump ≤90 dB(A)
Flow range of the filling gun 1-35L/min
Accuracy range of filling gun ±0.3%
Pre-set filling gun range 0.1-99.9L
Minimum oil discharge pressure of the filling gun 1bar
Max. oil pressure of the filling gun 67bar
Filling gun pipe Fully automatic stainless steel nozzle
Warranty term One-year warranty
Preset number of oil guns, accurate measurement (± 0.3%)
When the amount of oil reaches the set value, it will be closed automatically. It adopts a new structure and sealing method and a new automatic opening and closing oil nozzle design
Heavy push car, using weighing casters, wear resistance, corrosion resistance, reduce noise, long service life, suitable for 180-220kg oil drum
Pneumatic oil pump, high output pressure, equipped with oil-water separator, controllable oil production speed, while filtering the water in the compressed air, rust prevention, prolong the service life. The 1/2" hose is made of special synthetic rubber,
Instead of filling up in small bottles. Save costs and improve work efficiency
Increase the pressure regulator bottle, reduce the oil gun jitters
