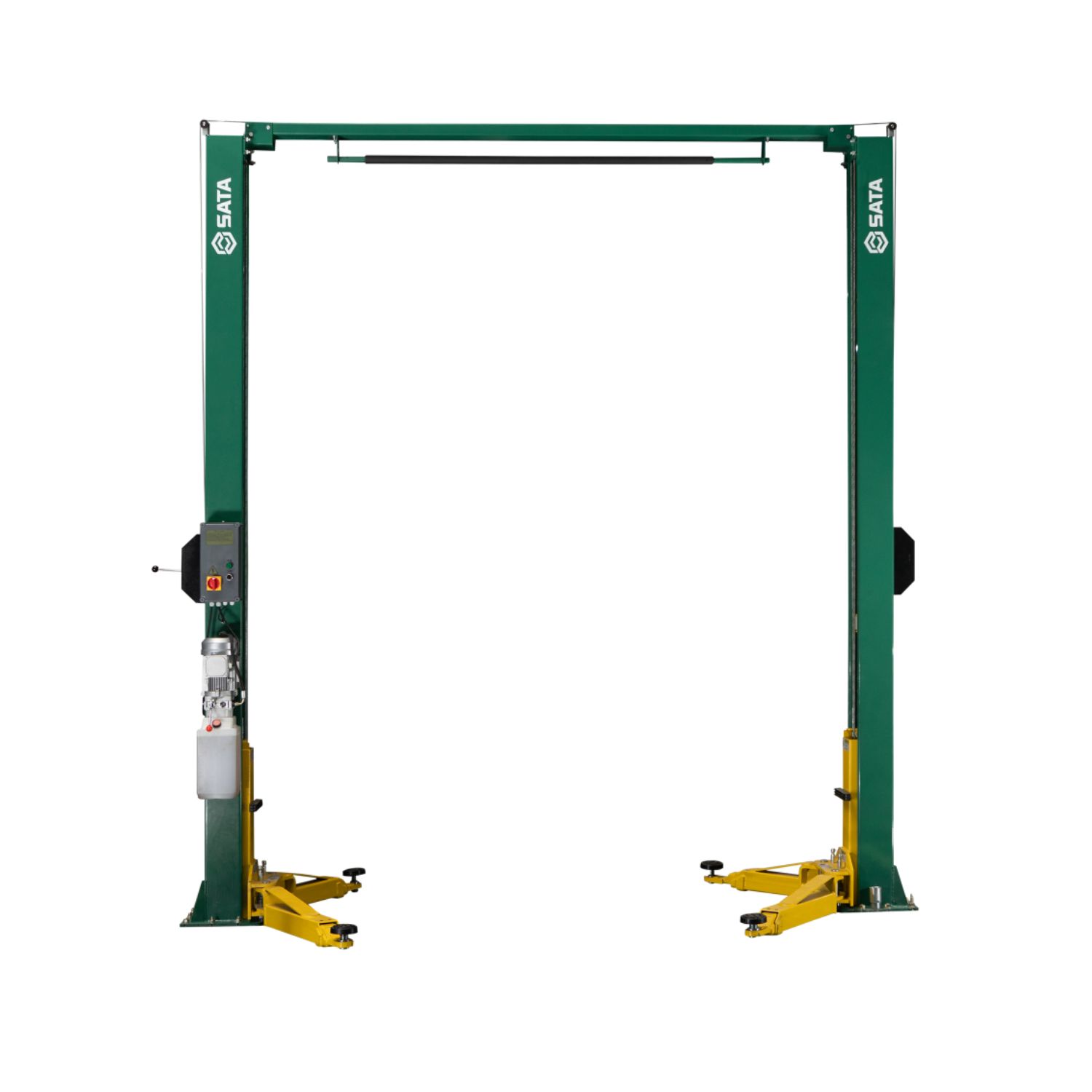

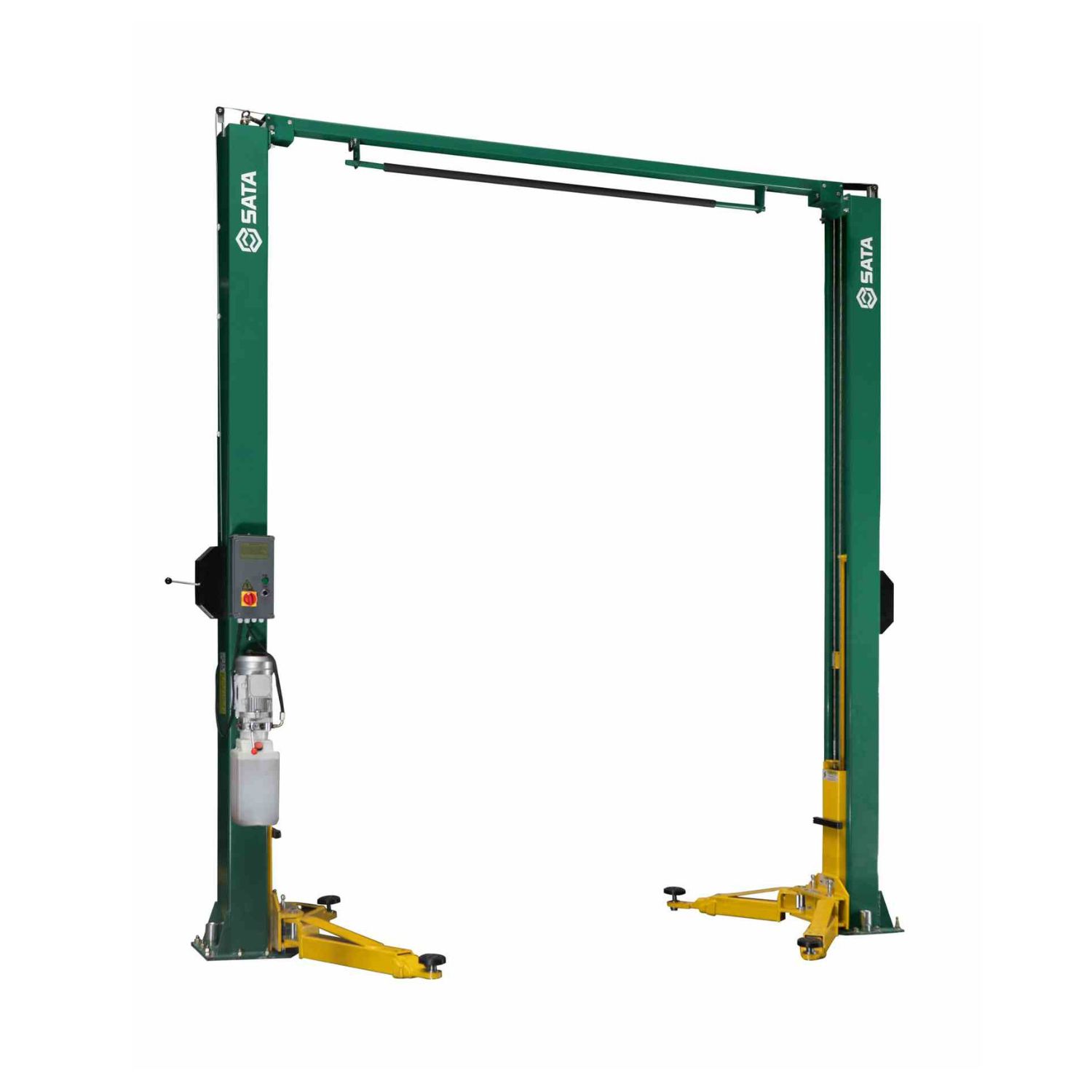

| Product No. | AE5102-3 | ||
| Motor power | 2.2kW | ||
| Lifting height | 1990MM | ||
| Unlocking method | Manual unilateral | ||
| Bracket type | 2+3 straight arms | ||
| Height of the whole machine | 3900MM | ||
| Motor shell | Aluminum | ||
| Frontal load drop time | 50s | ||
| Frontal load rise time | 60s | ||
| Minimum Height | 95MM | ||
| Inside width of column | 3000MM | ||
| Outside width of base plate | 3580MM | ||
| Pallet Threads | 3 sections of 70MM adjustable | ||
| Electric control method | 24V safety voltage control box (standard) | ||
| Base plate fixing holes | 16pcs | ||
| Rated load | 4 tons | ||
| Voltage | 380V | ||
| Pallet Raising Sleeve | 70MM | ||
| Warranty Terms | 1 year | ||
| ◆ | With an safety mechanism on one side for manual unlocking; the safety mechanism automatically locks itself when a hand is away from the mechanism | ||||
| ◆ | Directly-driven oil cylinder, avoiding chain fracture risks | ||||
| ◆ | Tray with high bush as standard, for SUV models | ||||
| ◆ | Sliding table lengthened to 1950MM with strength improved | ||||
| ◆ | Sliding table welded by 16mm steel sheets, with strength improved | ||||
| ◆ | Bracket arm safety mechanism with helical teeth design, ensuring perfect gear mesh |
