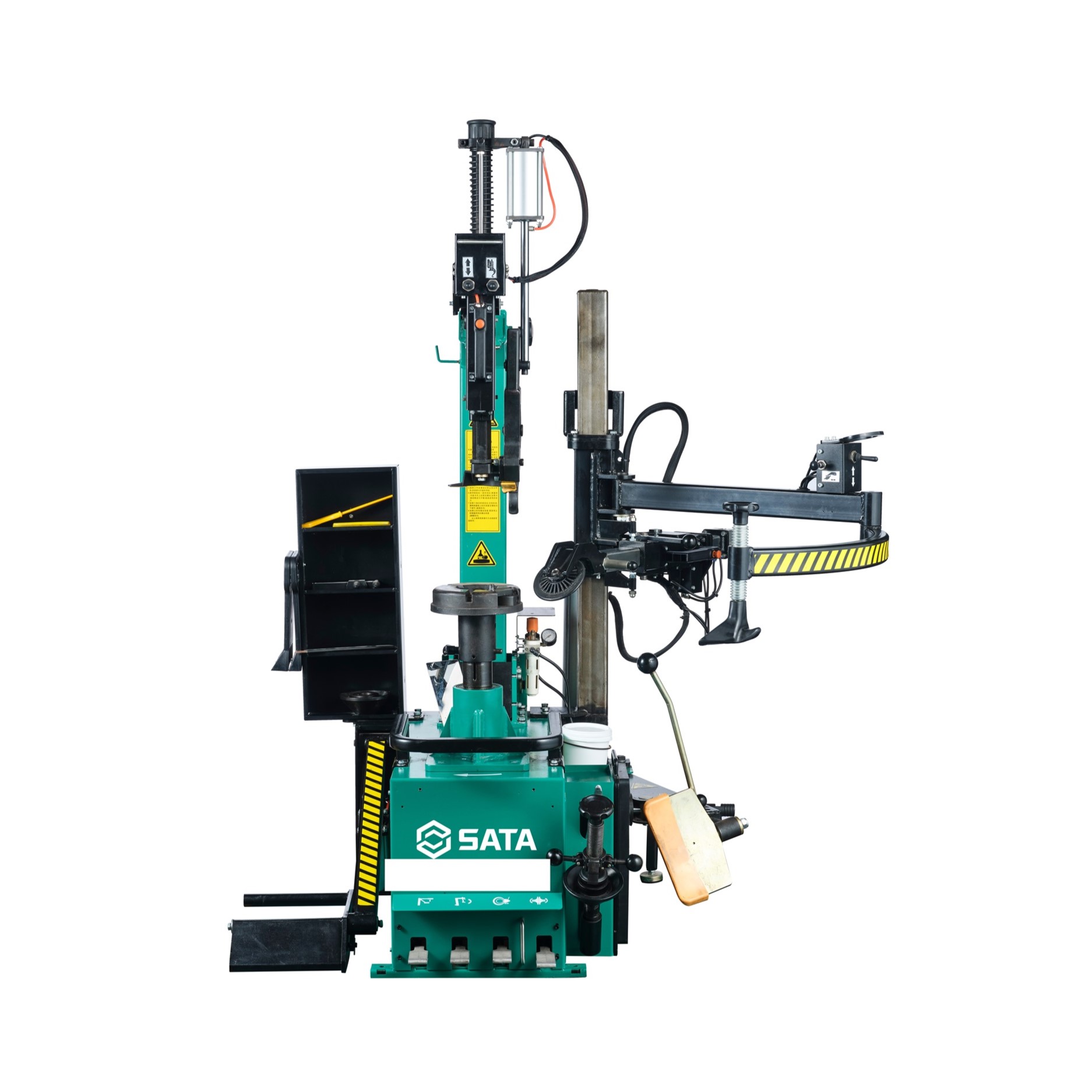

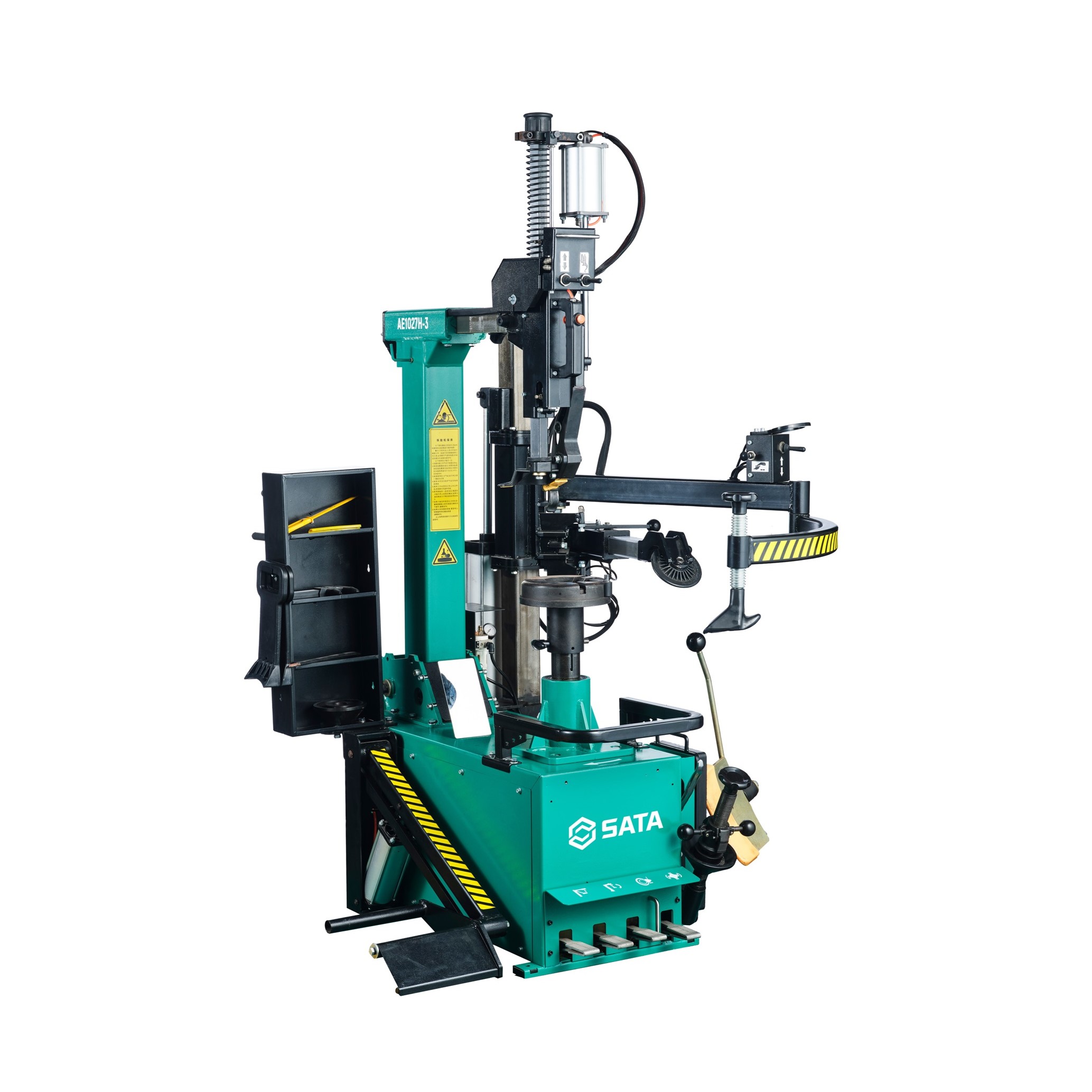

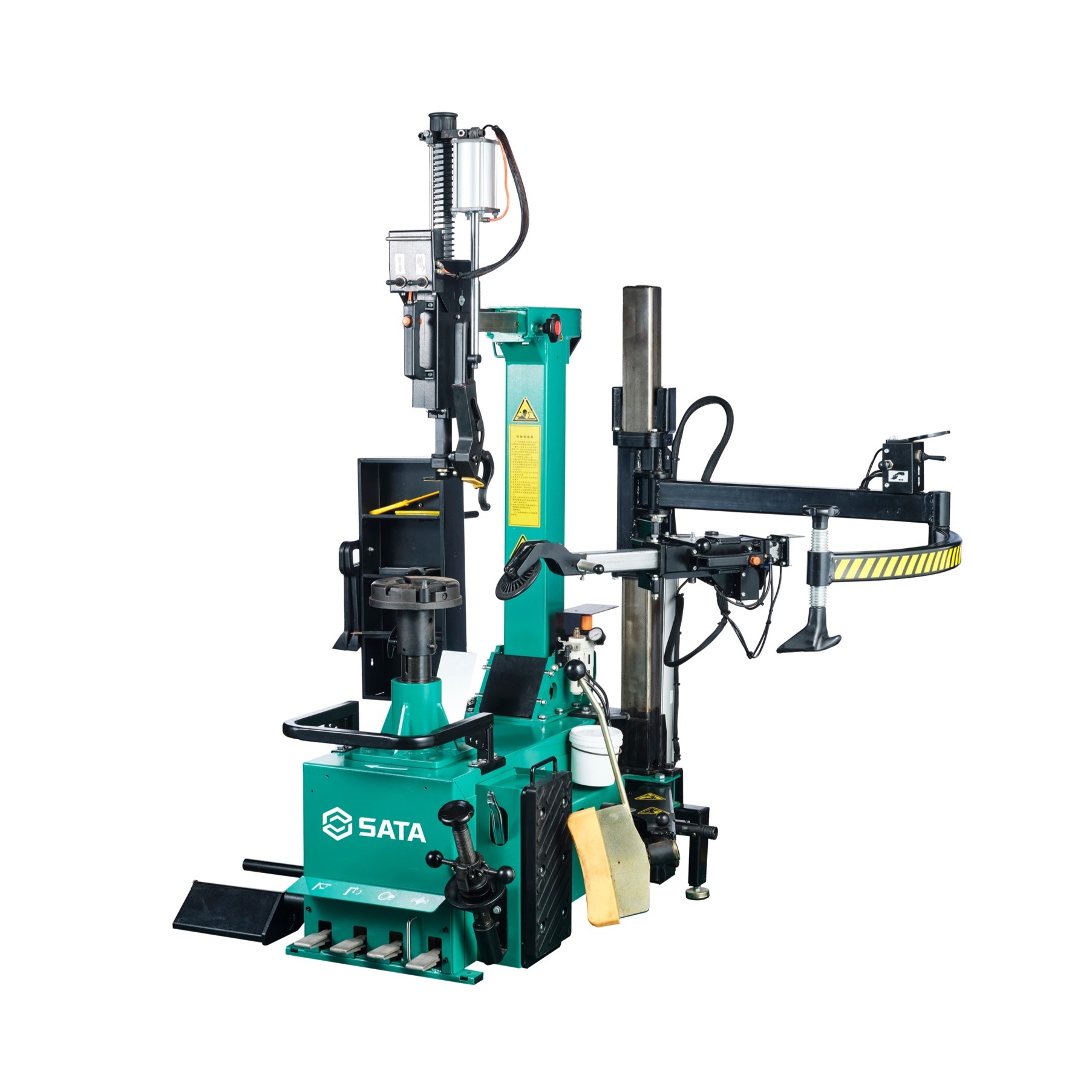

Product No. AE1027H-3
Gross/Net weight 432KG/ 380KG
Operating noise ≦70db
Maximum tire width 350MM
Large disk rotation speed 6-12rpm
Push-pull force of large cylinders 2500kgf
Operating air pressure 8-10Bar
Maximum tire diameter 1100MM
Warranty Terms 1 year (except consumable parts)
Rim diameter 13-28"
Package dimensions 1380x1130x1840MM
The pry-free module solves the troubles of flat tires and run-proof tires disassembly and scraping, and the operation is easier
The upper seat of the box column and the base are stiffened, the front end is closed, and the tire column is not easy to deform
Operate the mirror to improve work efficiency
Safety guardrails to protect the safety of people and tires
Aluminum alloy atmospheric cylinder, strong corrosion resistance

The three-speed tire pressure shovel adjusts the opening and closing degree, which is more applicable

The high-pressure oil-water separator comes with a metal protective sleeve and is not easily damaged
