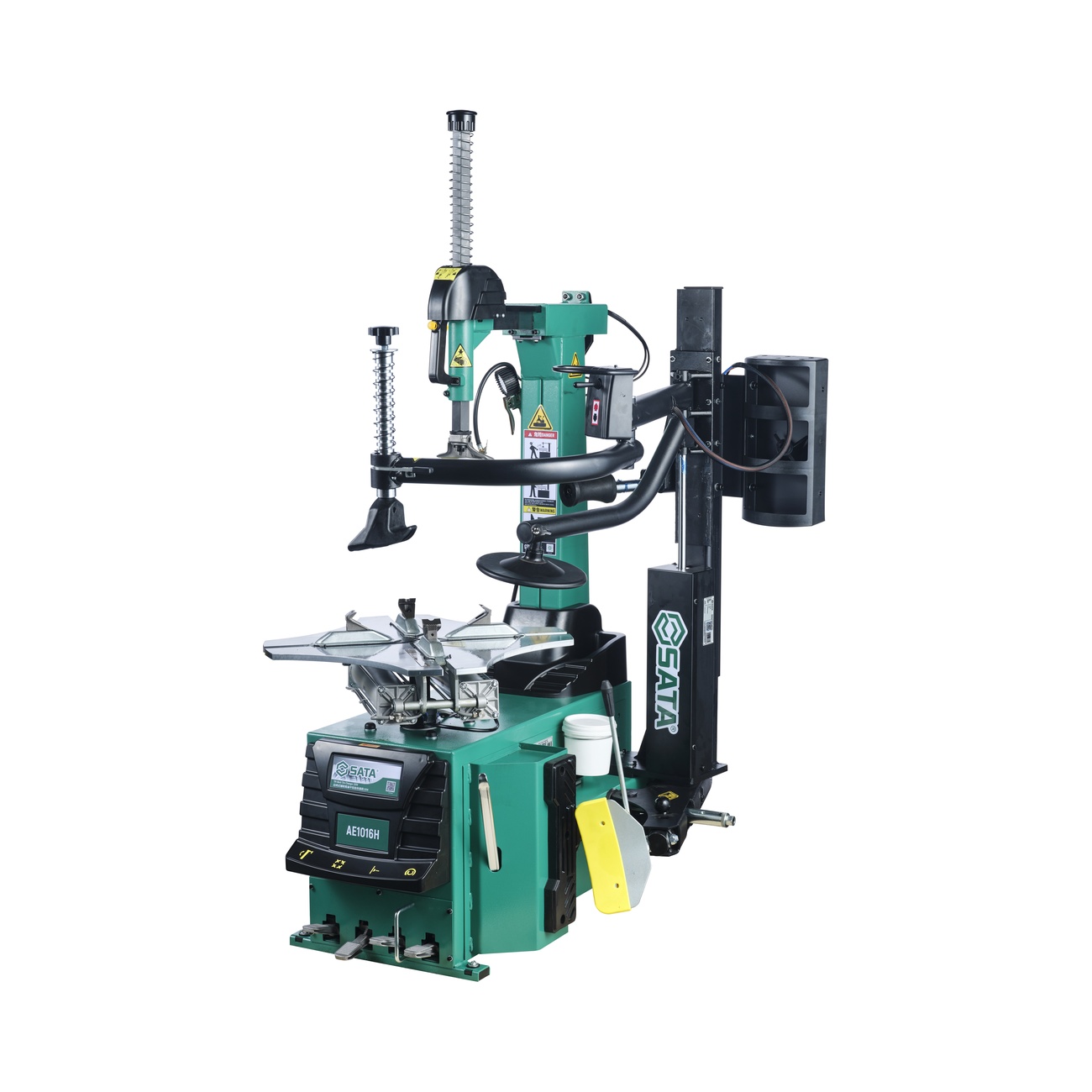

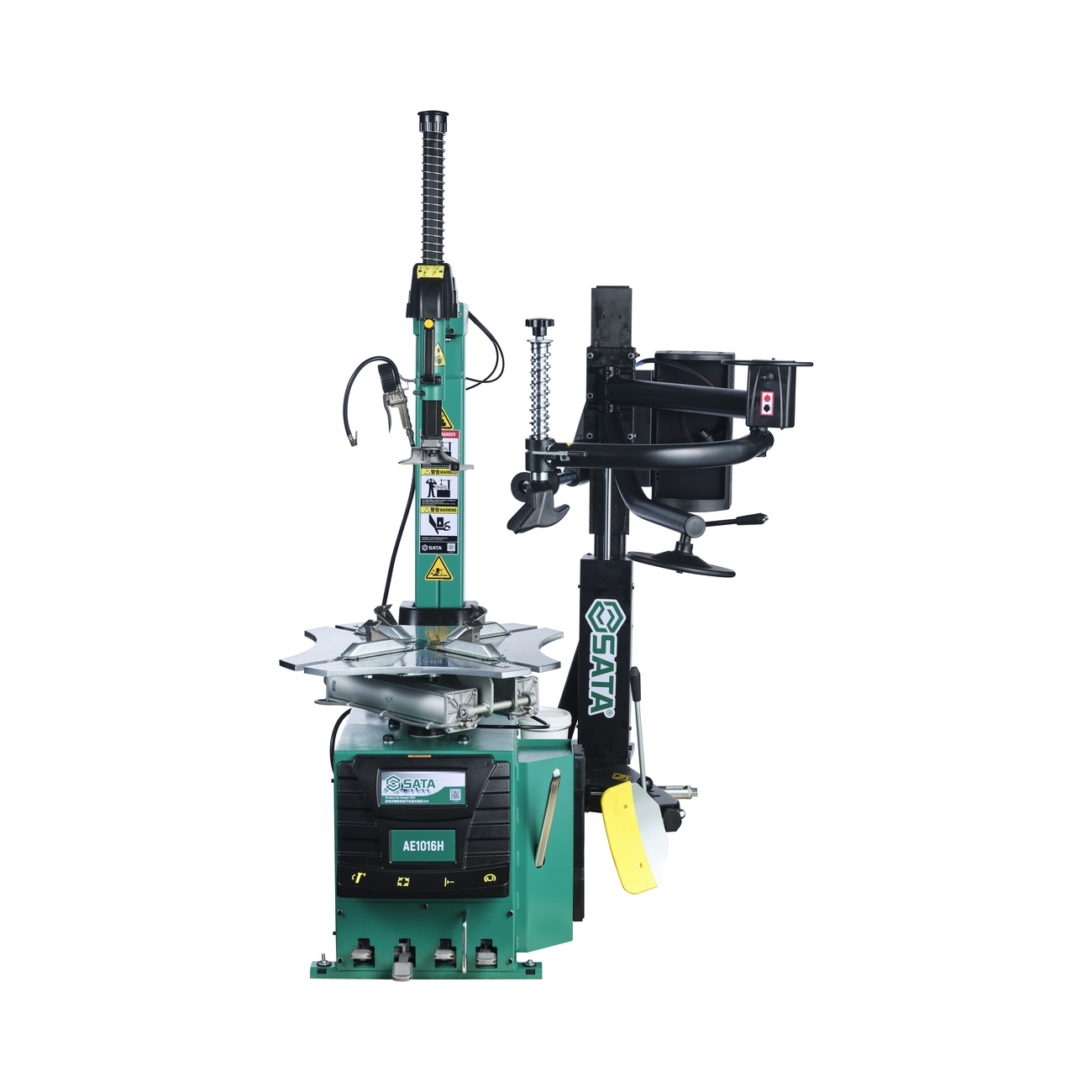

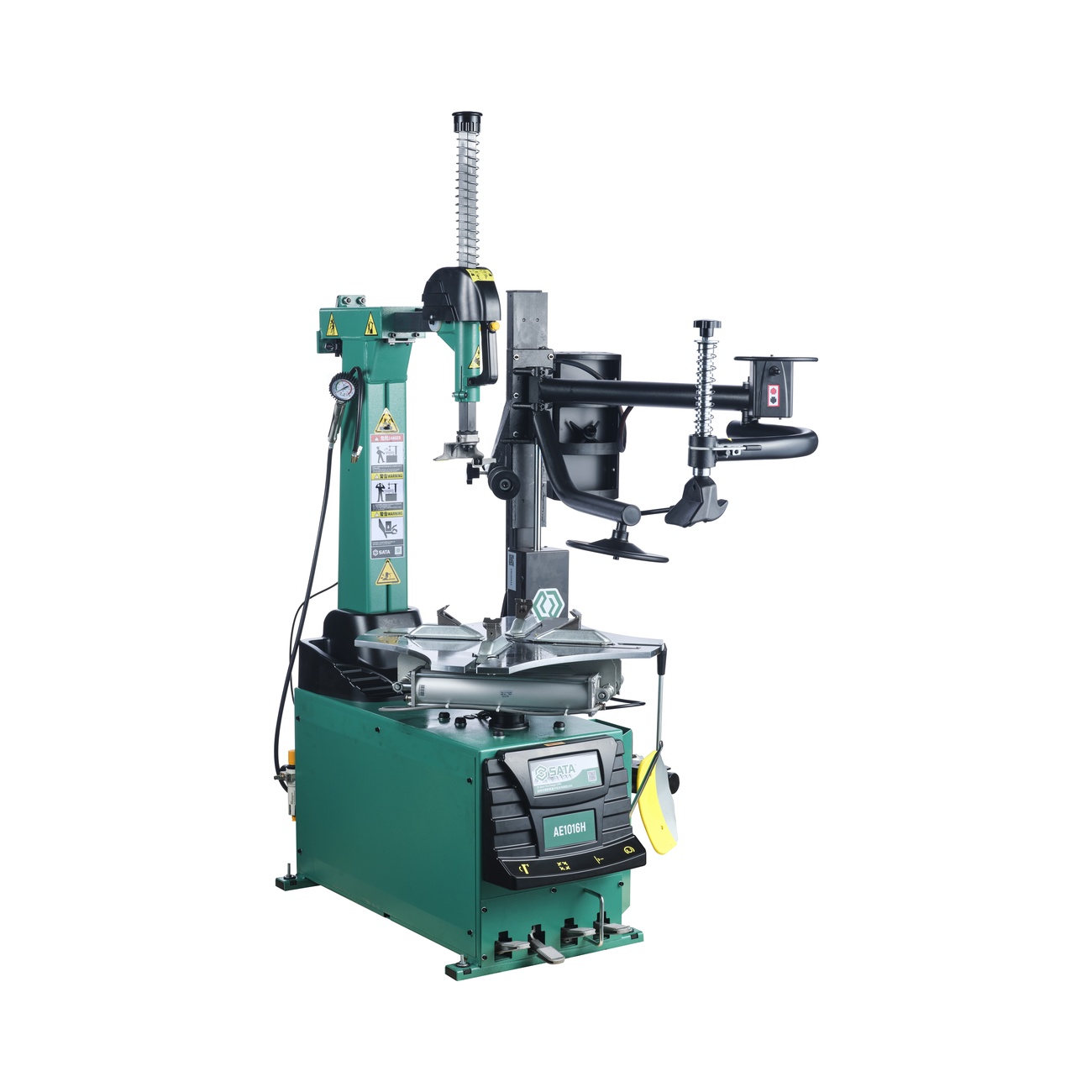

Product No. AE1016H-3
Tire width 3"-15"
Internal support hub diameter 13"-26"
Gross/Net weight 303/260KG
Large disk size 22" built-in adjustable jaws
Oil-water separator pressure resistance 12KGf/CM²
Diameter of the outer clamping rim 11"-24"
Warranty Terms 1 year (except consumable parts)
Large disk rotation speed 6.5rpm
Operating air pressure 8-10bar
Push-pull force of large cylinders 2500KGf
Operating noise <70db
Maximum tire diameter 40"(1040MM)
Package dimensions 1180x1000x1000MM

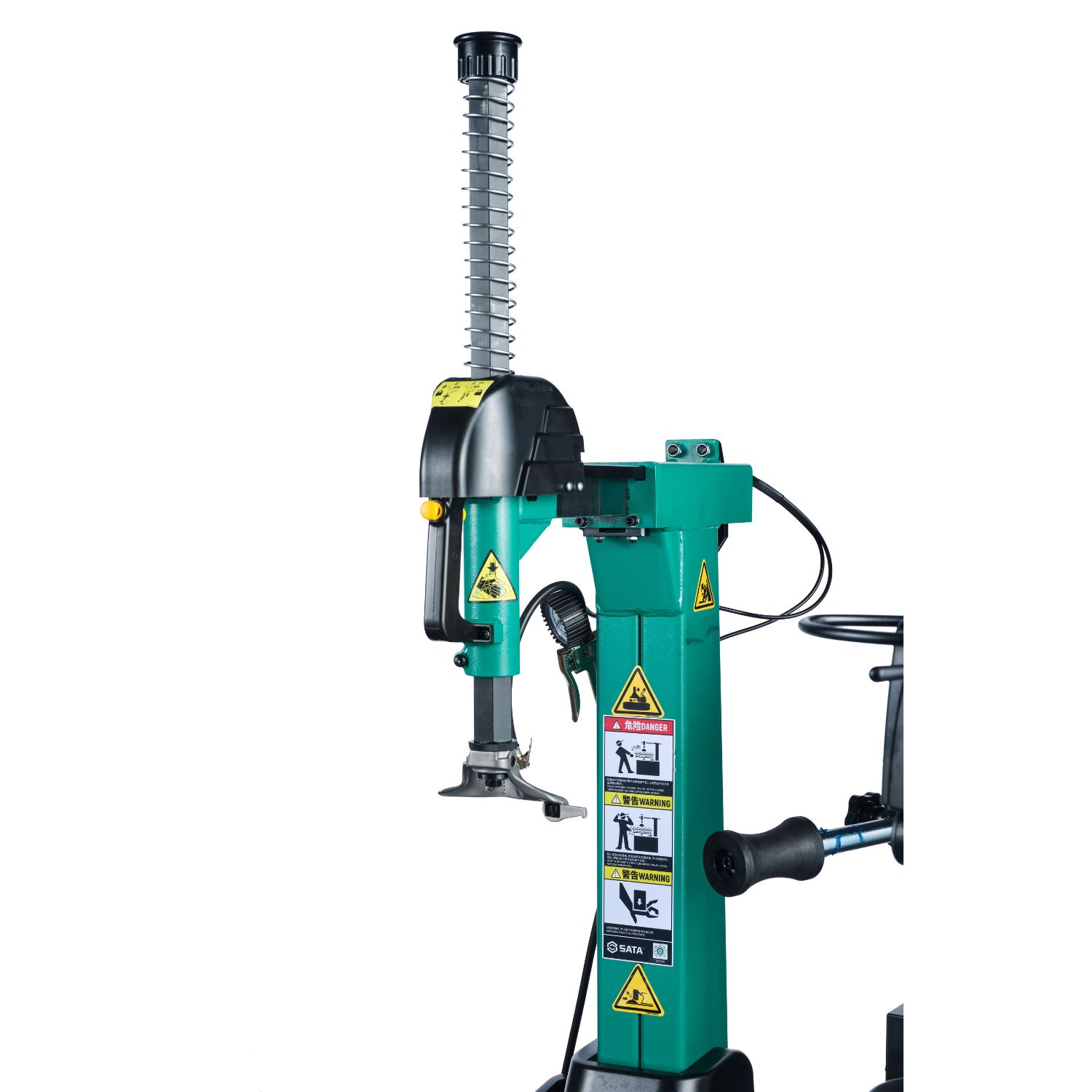

◆Birdhead-shaped puller of retroverted tire changer without radial deformation, avoiding damages of rims and available for removal and installation of high-end and luxury tires

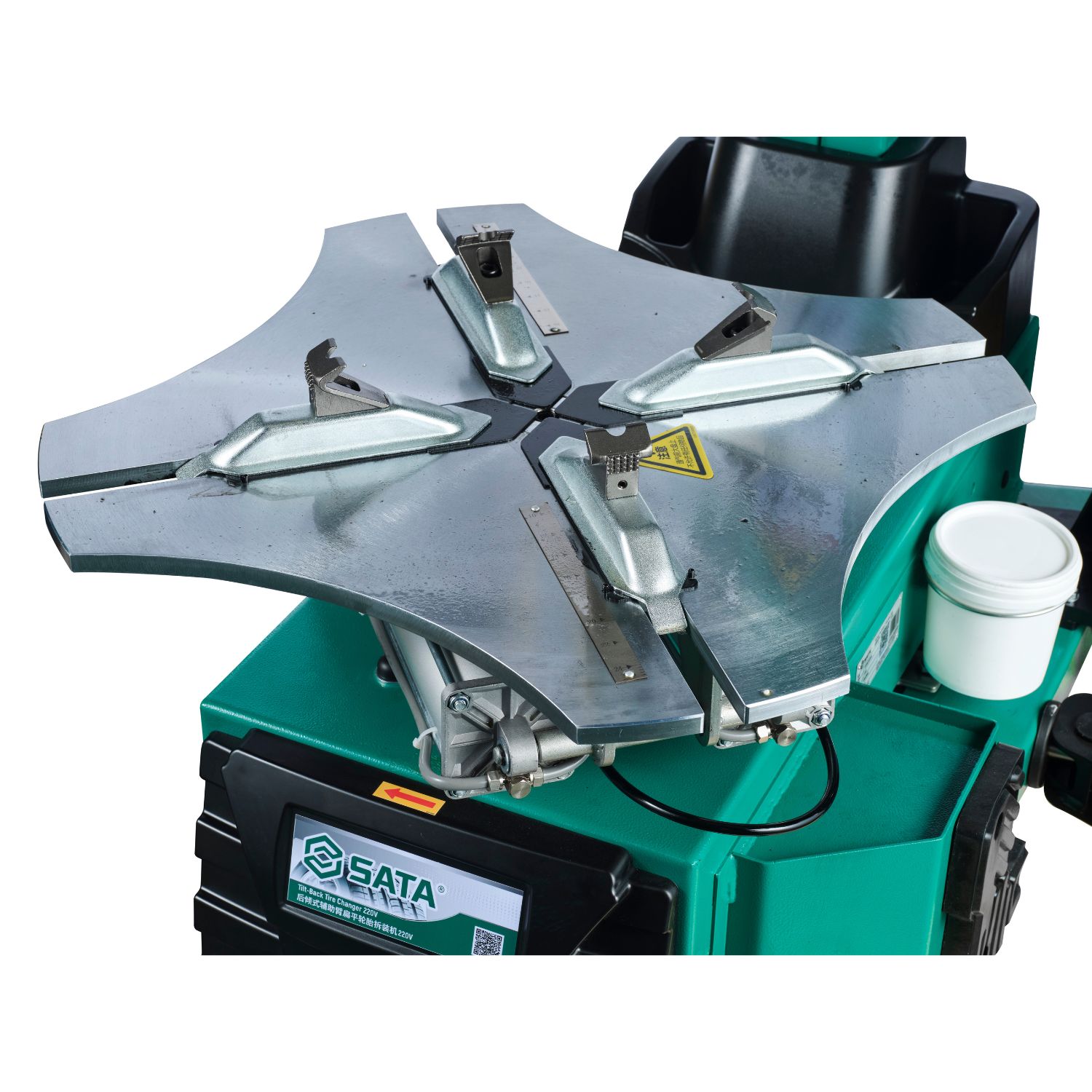

◆Adjustable alloy steel jaws, suitable for a wide range of applications
◆Alloy steel birdhead-shaped puller, ensuring a longer service life
◆Torx large disc with wear resistant gasket and scale, allowing accurate alignment
◆Chassis stepping function, enabling stop in multiple positions and improving the clamping efficiency
◆Large aluminum cylinder, highly resistant to corrosion
◆Rear cover with quick exhaust valve as standard configuration, improving bead-breaking efficiency

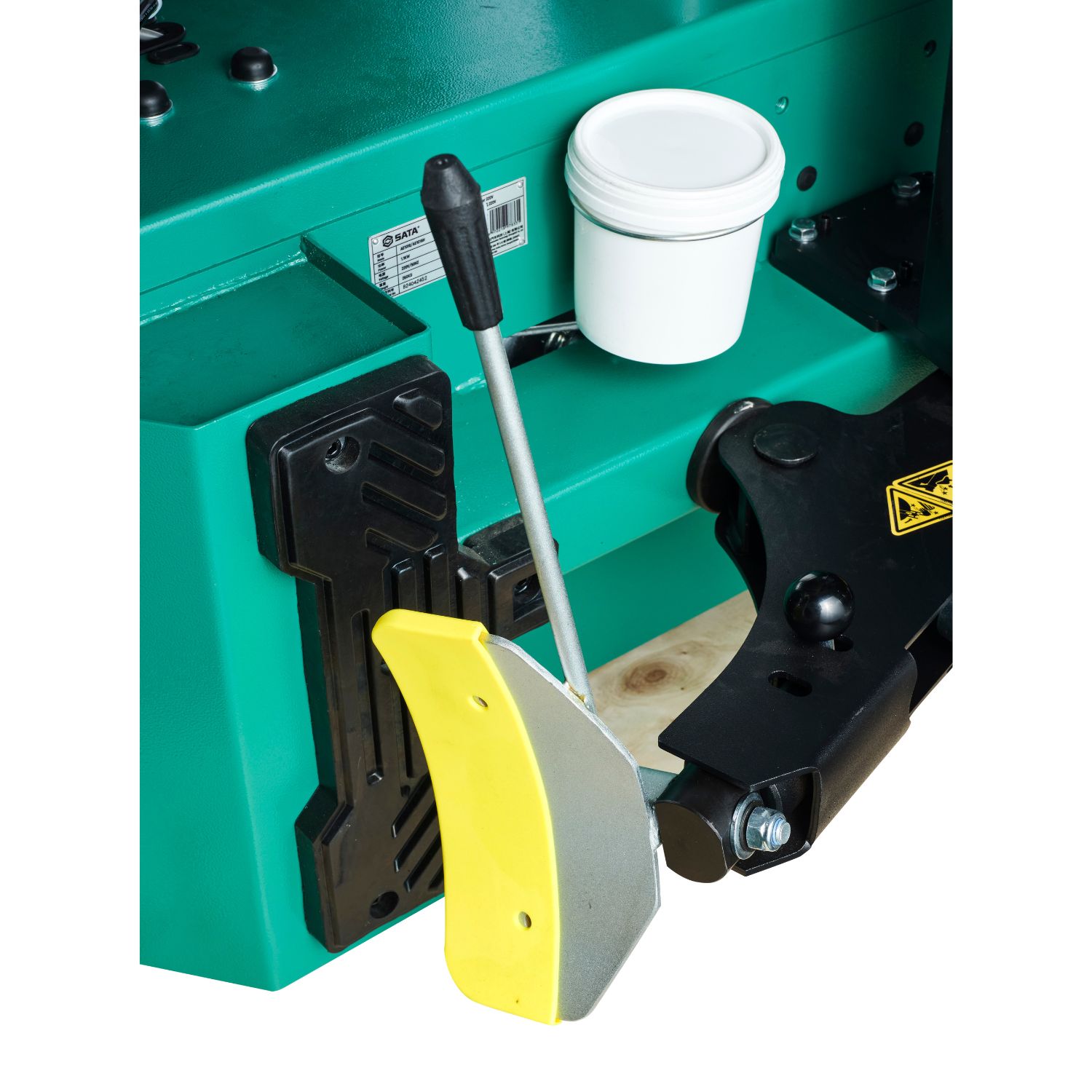

◆Bead breaker with two-position regulation, applicable in a wider range

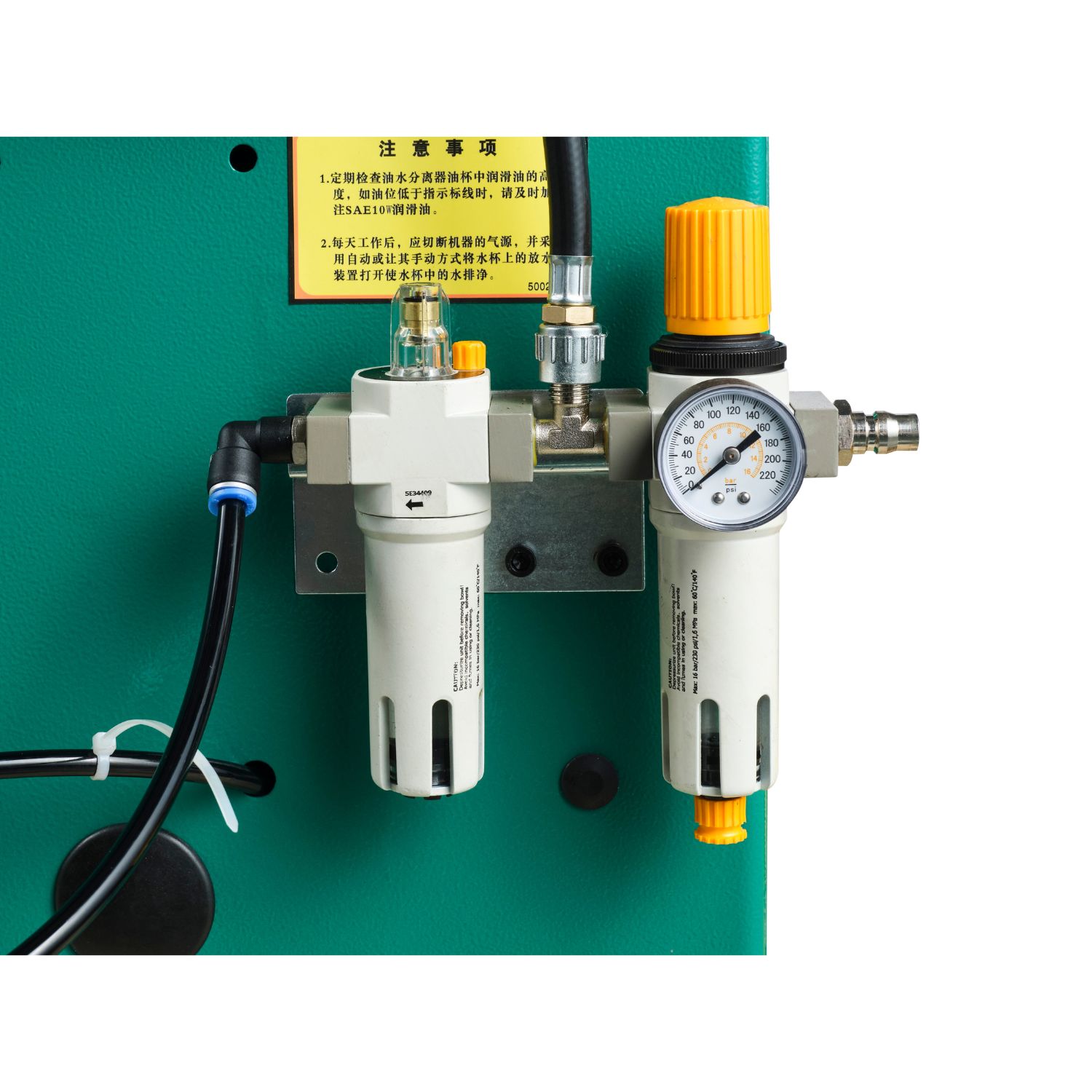

◆High pressure resistant oil-water separator with metal protection cover, not easy to be damaged
