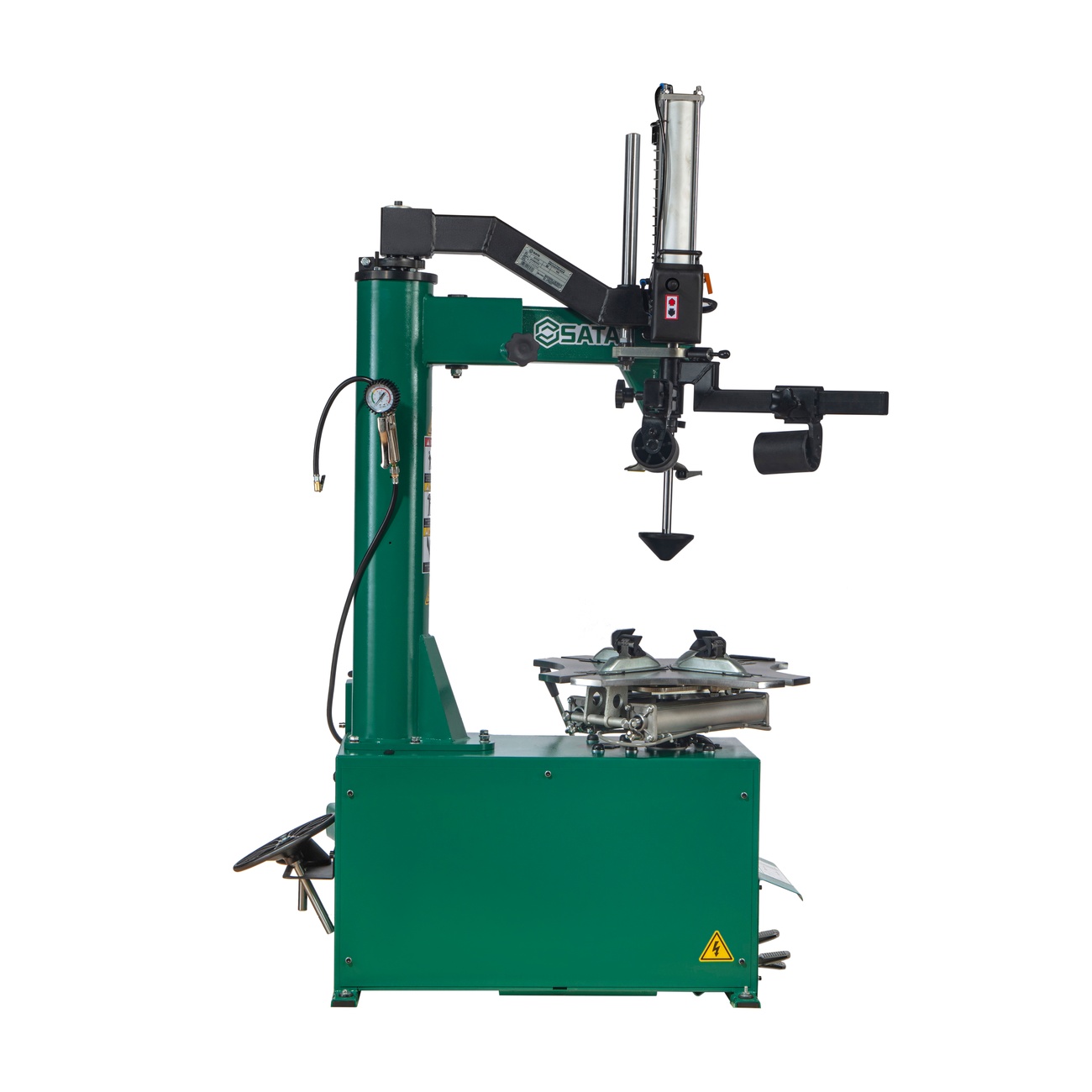

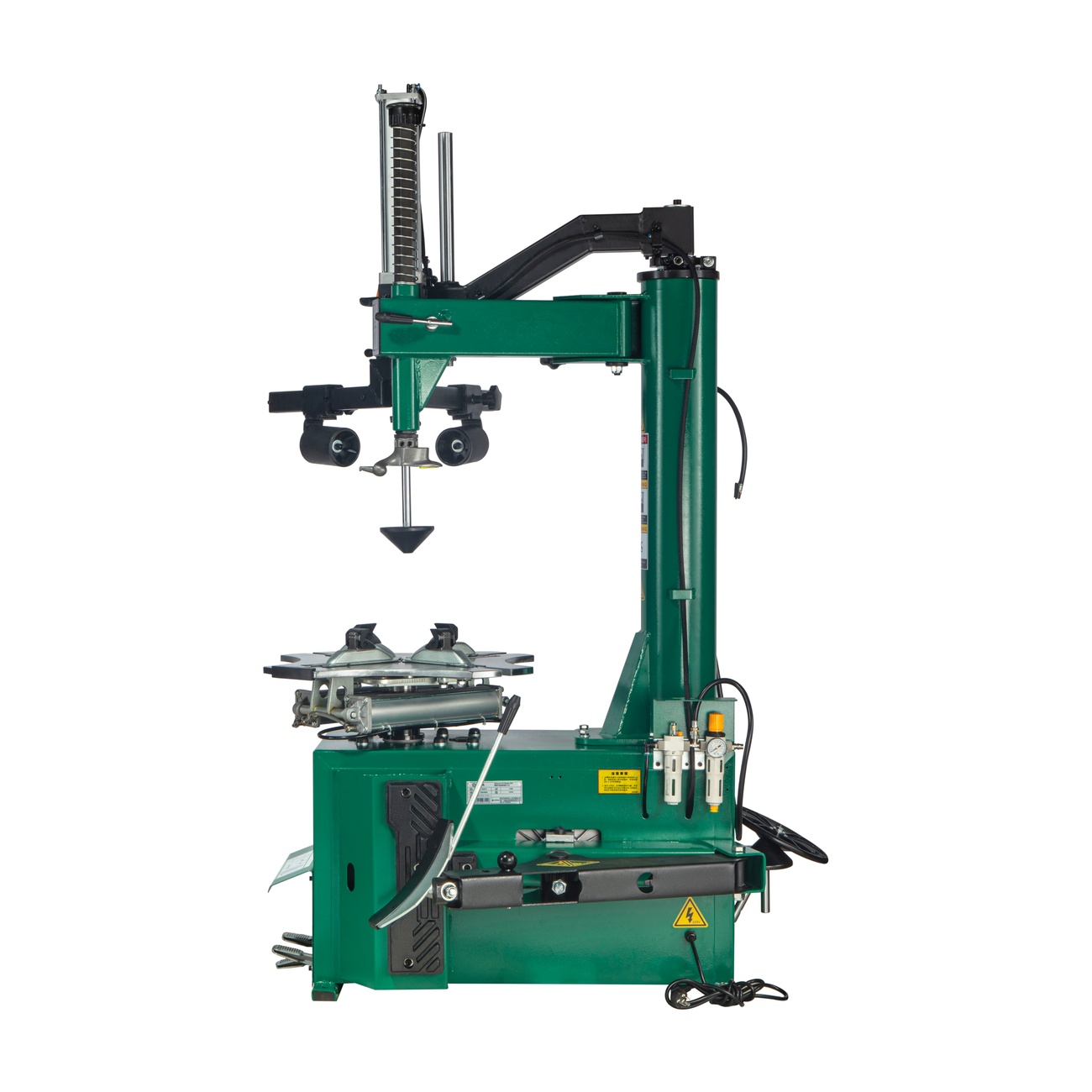

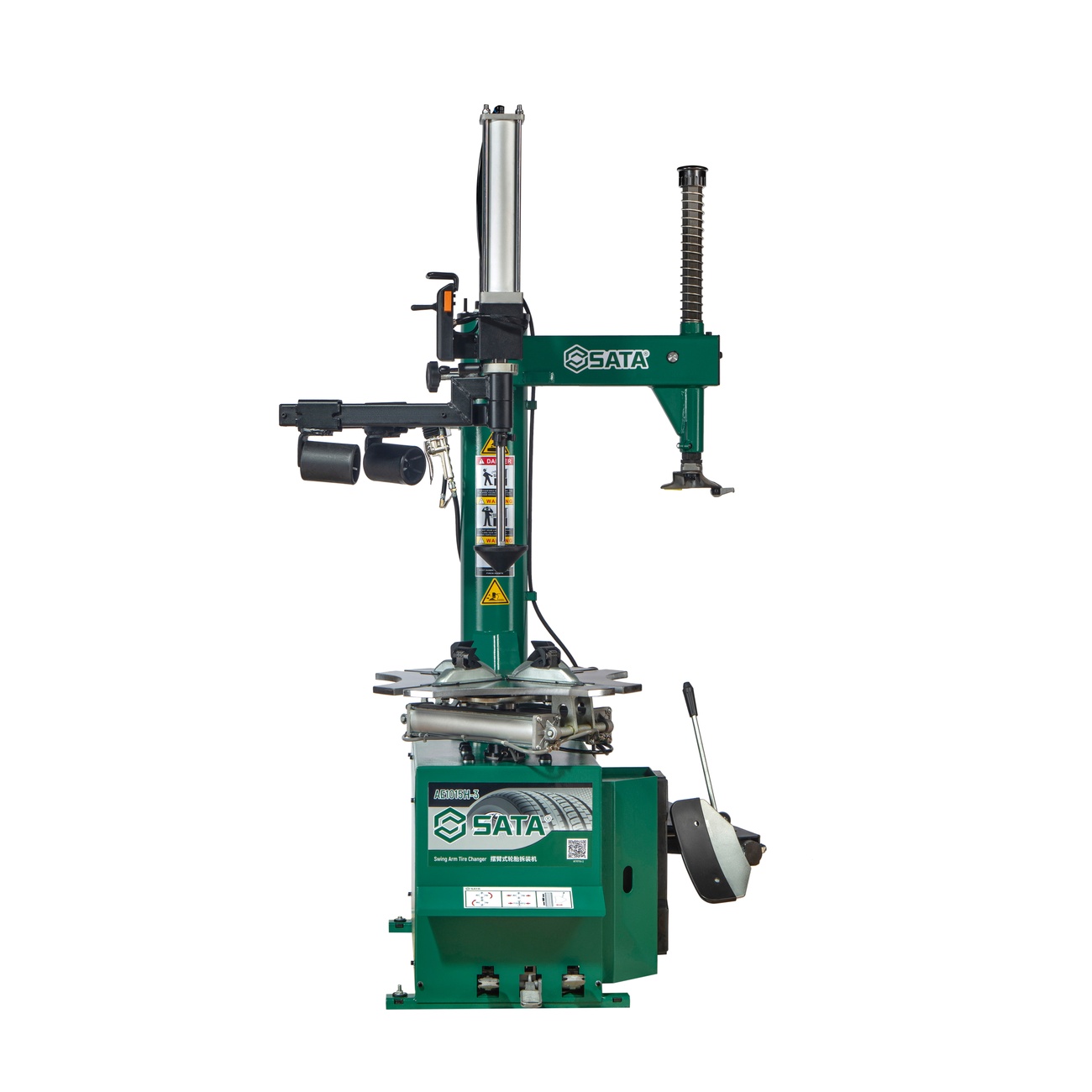

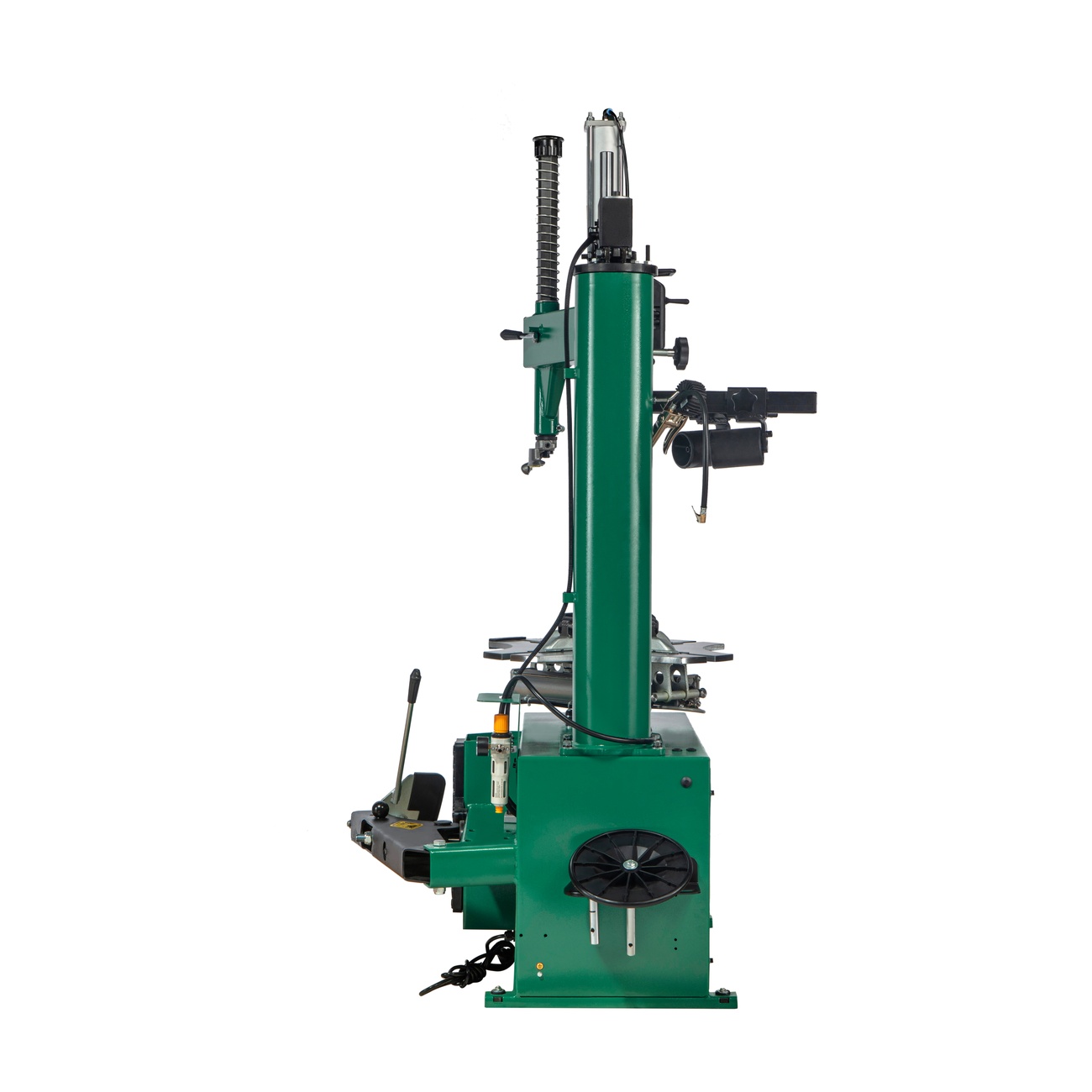

Product No. AE1015H-3
Tire width 3"-13"
Internal support hub diameter 12"-24"
Gross/Net weight 275/235KG
Large disk size 21"
Diameter of the outer clamping rim 10"-21"
Oil-water separator pressure resistance 12KGf/CM²
Operating air pressure 8-10bar
Warranty Terms 1 year (except consumable parts)
Large disk rotation speed 6.5rpm
Push-pull force of large cylinders 2100KGf
Operating noise <70db
Maximum tire diameter 39" (1010MM)
Package dimensions 1180x920x1100MM
◆Suspended auxiliary arm, widely applicable and easy to use



◆Alloy steel jaws plus protective cover, effectively avoiding damages to the rim



◆Alloy steel birdhead-shaped puller, ensuring a longer service life



◆Torx large disc with wear resistant gasket and scale, allowing accurate alignment



◆Chassis stepping function, enabling stop in multiple positions and improving the clamping efficiency



◆Stainless steel large cylinder, highly resistant to corrosion



◆Rear cover with quick exhaust valve as standard configuration, improving bead-breaking efficiency



◆Bead breaker with two-position regulation, applicable in a wider range



◆High pressure resistant oil-water separator with metal protection cover, not easy to be damaged
