| Product No. | 3 58710 | ||
| Capacity load（KG） | 3000 | ||
| Saddle lowest height（MM） | 83 | ||
| Saddle highest height（MM） | 470 | ||
| Lift stroke（MM） | G3-F3 | ||
| L (CM) | 61.2 | ||
| W (CM) | 32.4 | ||
| H (CM) | 21.4 | ||
| Net Weight (kg) | 28 | ||
| Warranty Terms | 3 years warranted for Pump Unit | ||

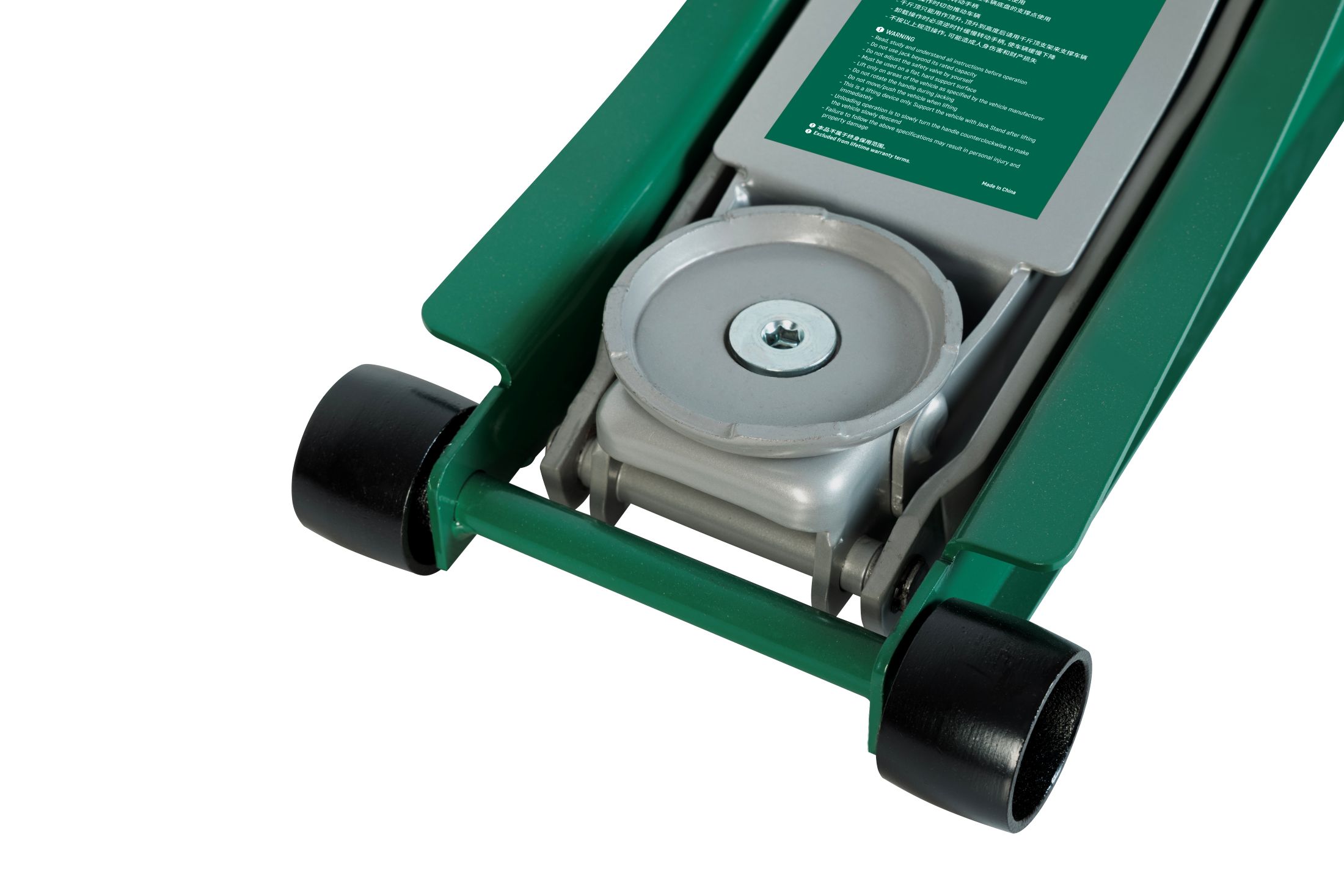

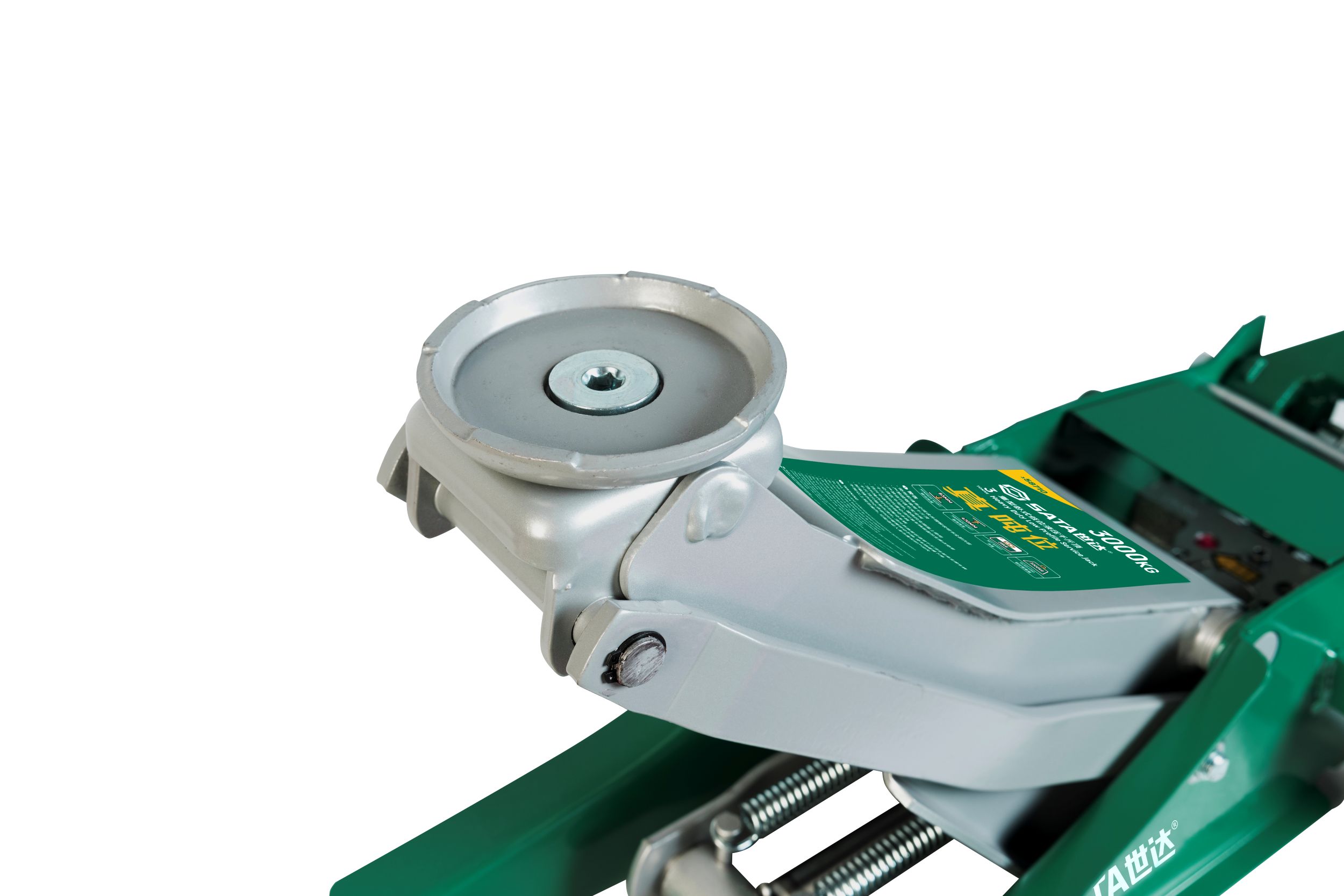

| ◆ | Saddle lowest height is 85MM, suitable for the chassis of most passenger vehicles |
| ◆ | Actual load capacity meets rated tonnage |

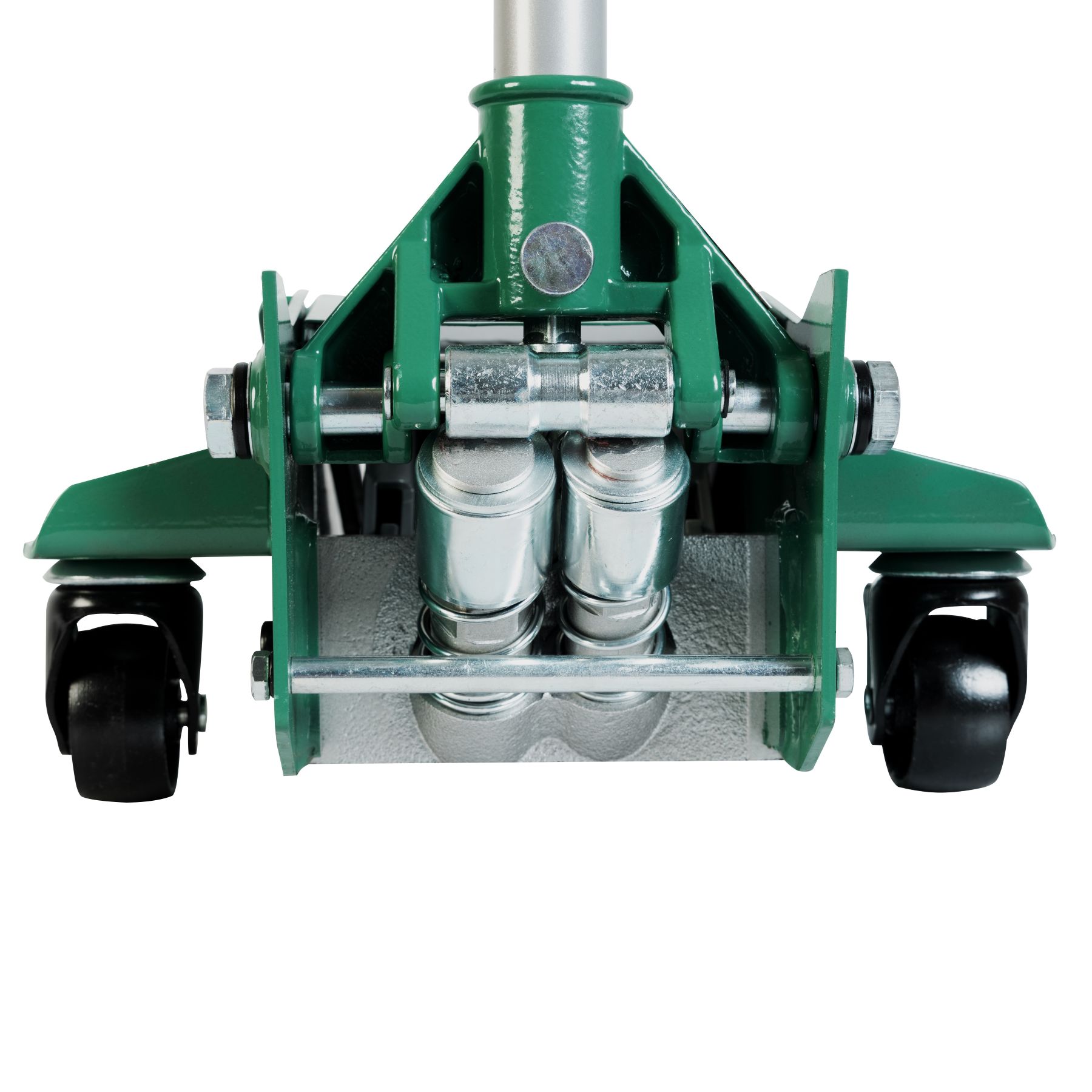

| ◆ | Dual-circuit hydraulic pump, auto fast/slow lifting by real-time load |
| ◆ | Passed static and dynamic overload tests (lab conditions only; no user overload) |
| ◆ | Complies with JB/T 5315-2017 |
