| Product No. | 3 55110 | ||
| Voltage | 220V | ||
| Rated load | 3.5T | ||
| Minimum Height | 330mm | ||
| Lifting height | 2080mm | ||

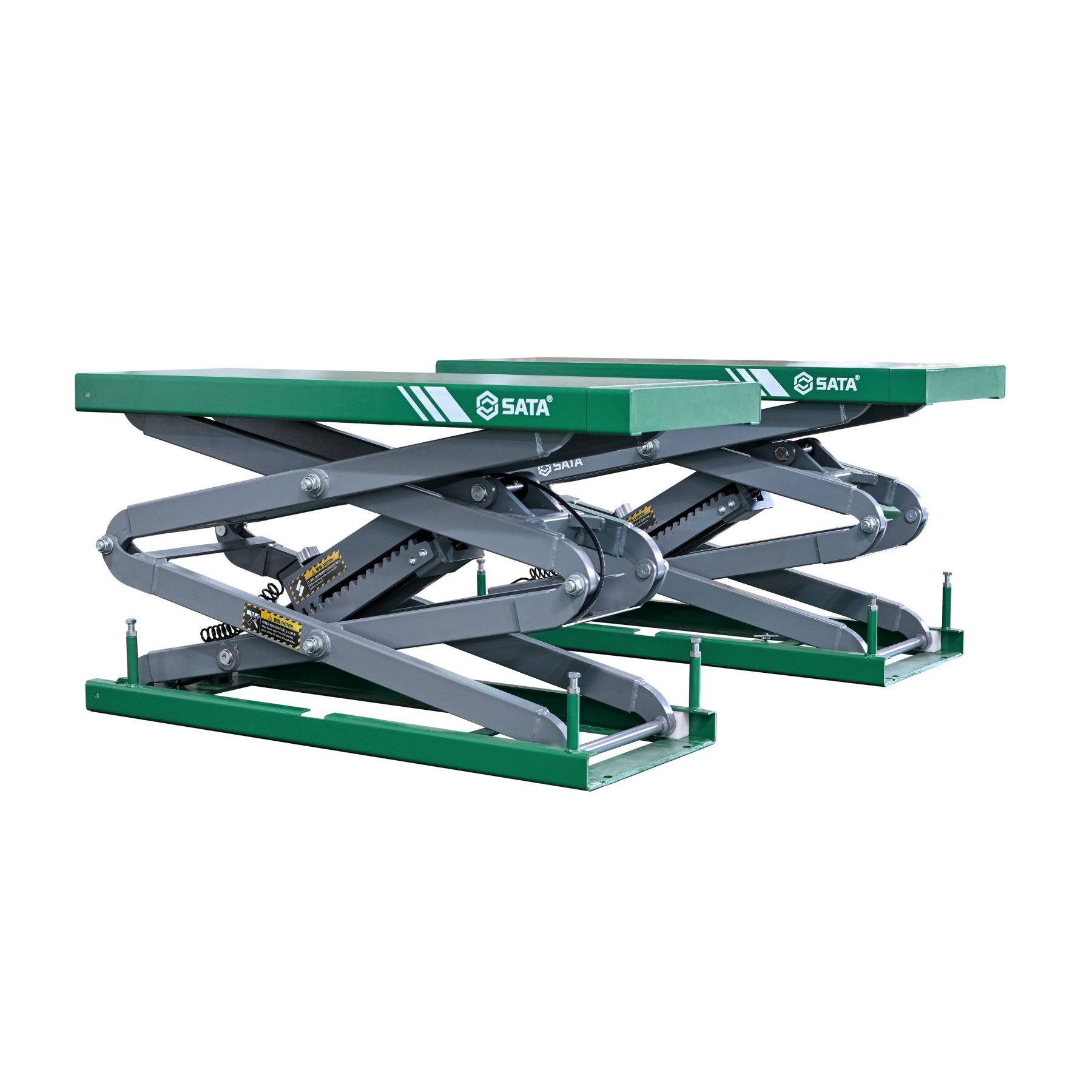

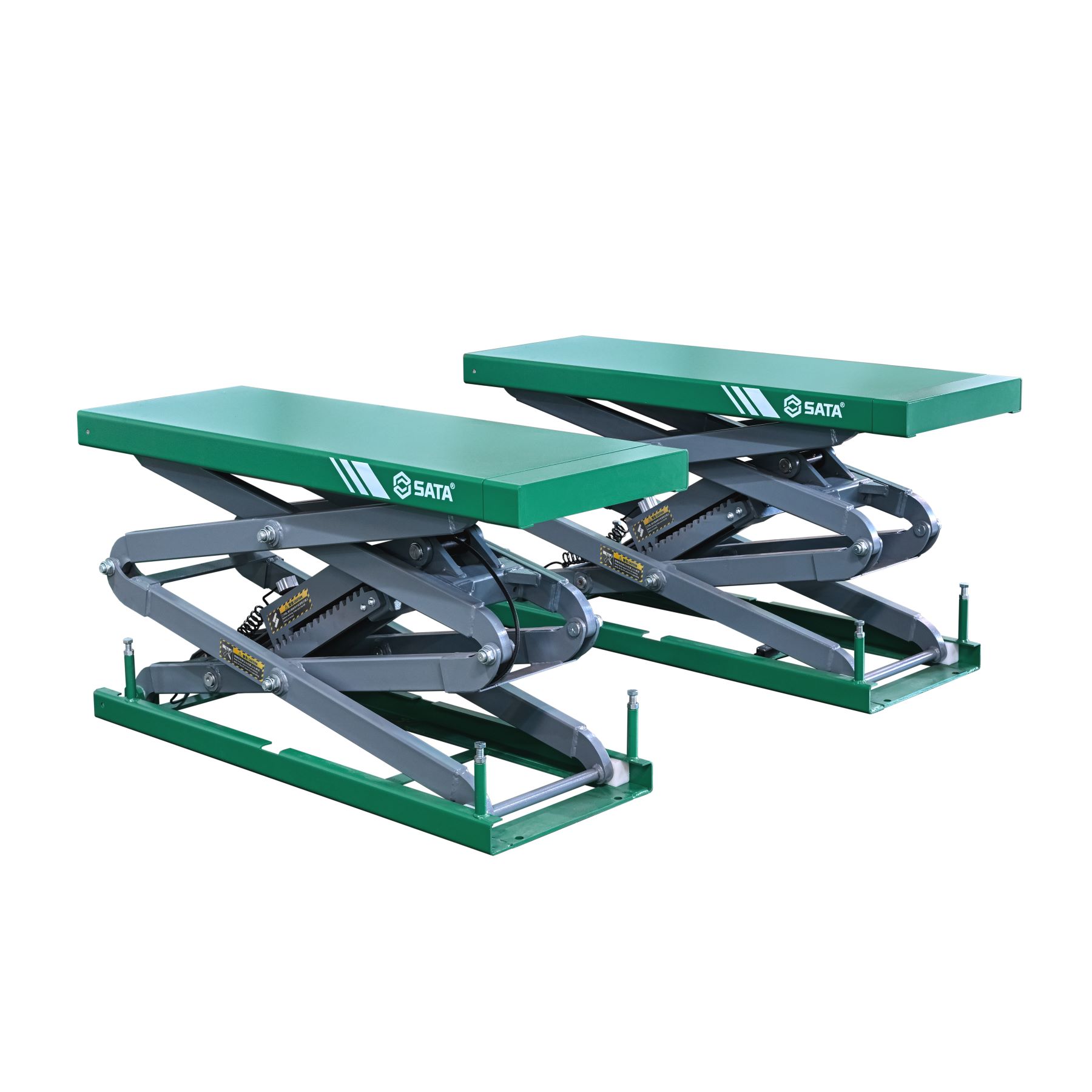

| Platform length (Single pull-out) | 1550mm-1760mm | ||
| Platform length (Matching double pull-out) | 1650mm-2070mm | ||
| Platform width | 550mm | ||
| Total width | 1980mm | ||
| Frontal load rise time | 60s | ||
| Frontal load drop time | 50s | ||
| Air supply pressure | 6-8Bar | ||
| Motor power | 2.2KW | ||
| Motor shell | Aluminum | ||

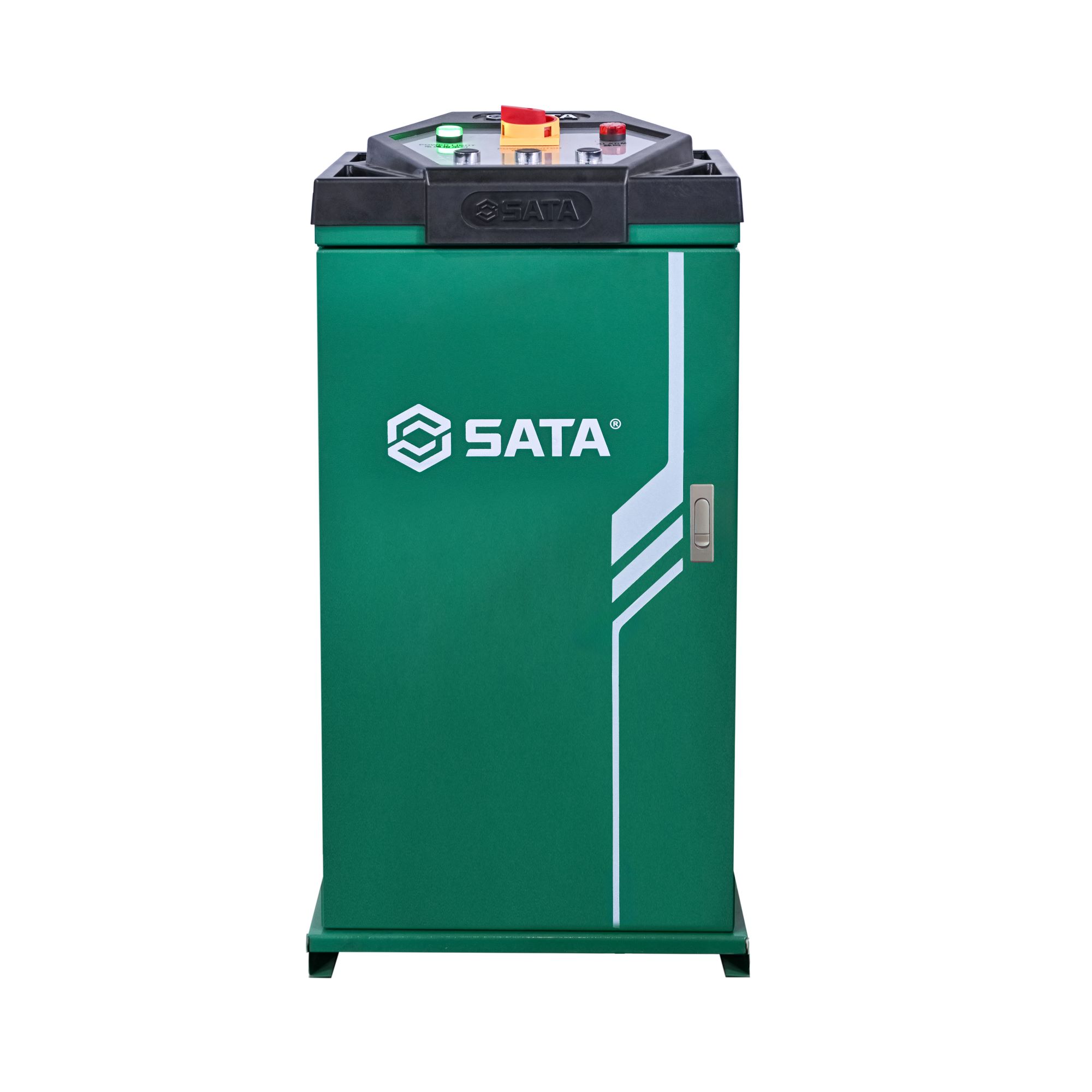

| Electric control method | 24V safety voltage control box (standard) | ||
| Number of mechanical safety teeth | 3 teeth | ||
| Turn on the insurance test | √ | ||
| Electric control mode | Drop alarm | ||
| Warranty Terms | 1 year | ||

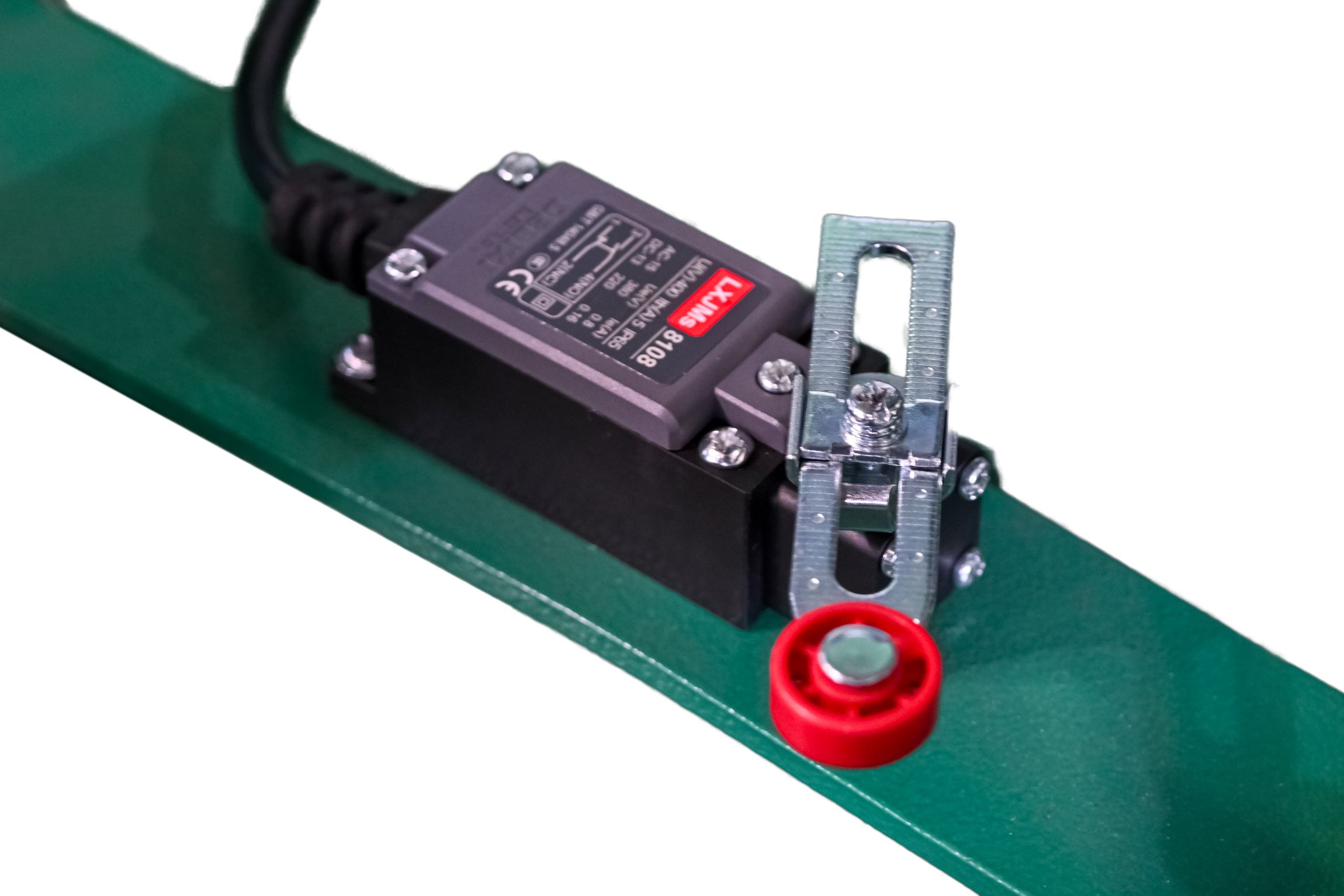

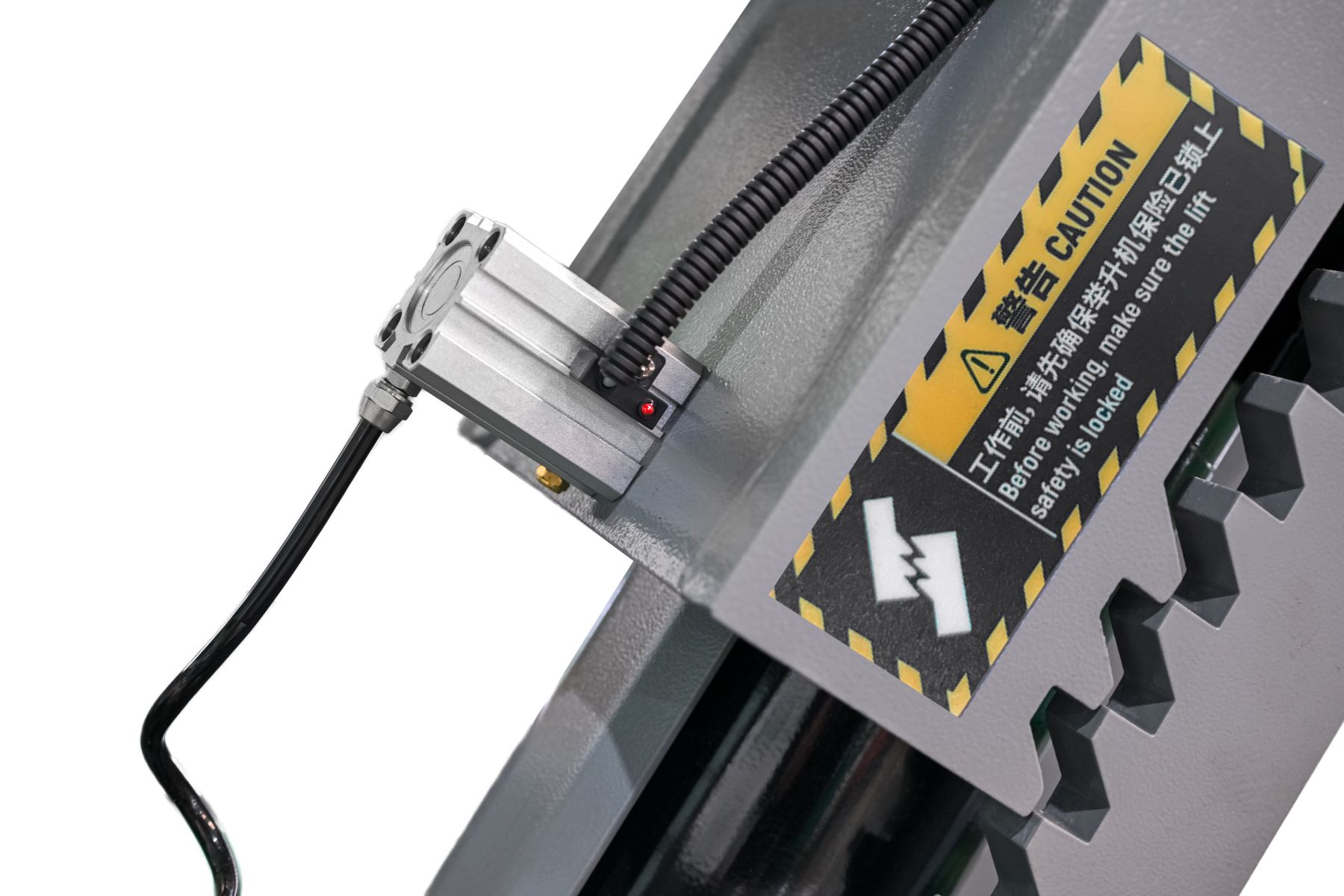

| ◆ | Electronically detect the open state of the insurance to avoid potential safety hazards caused by the insurance not being opened |

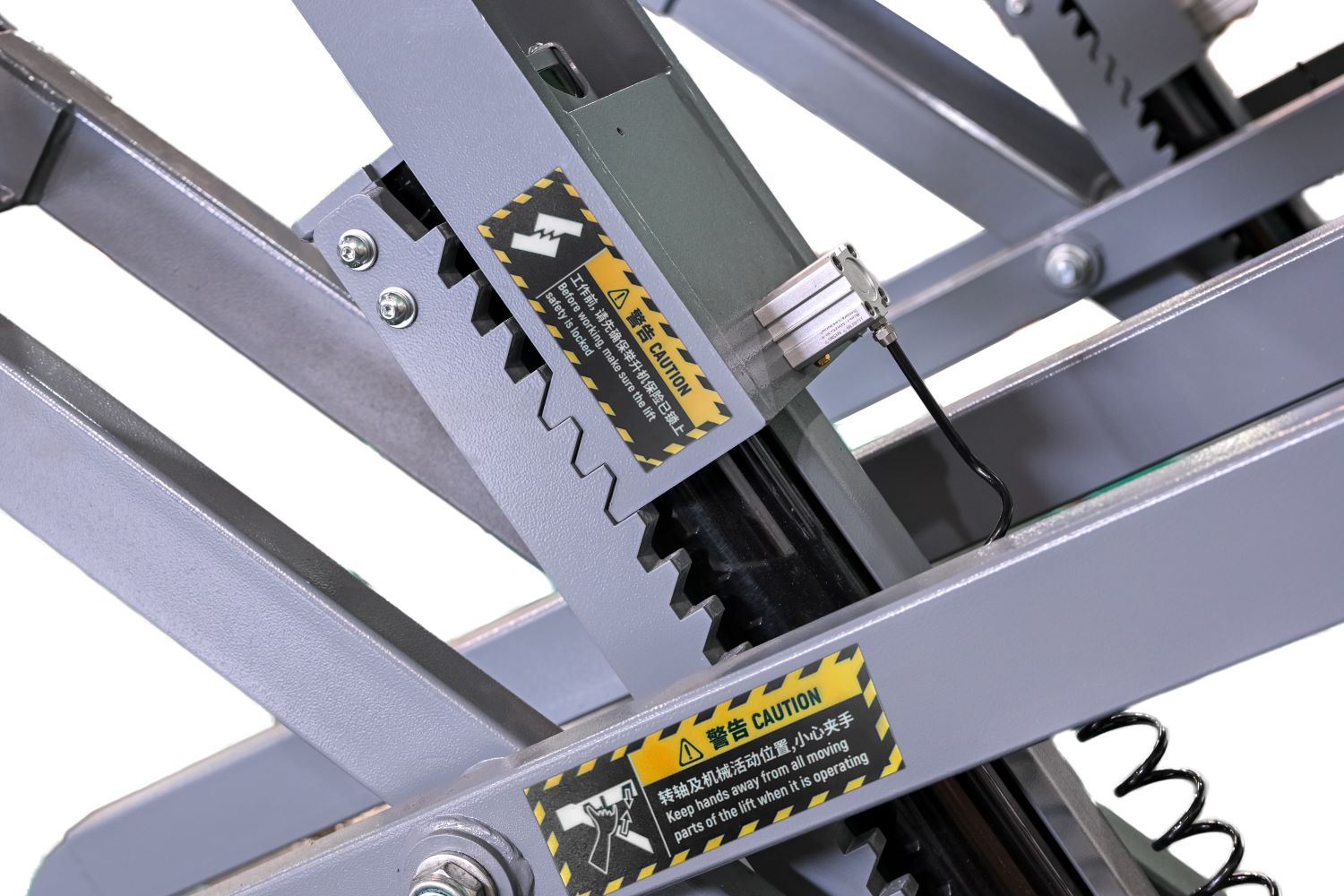

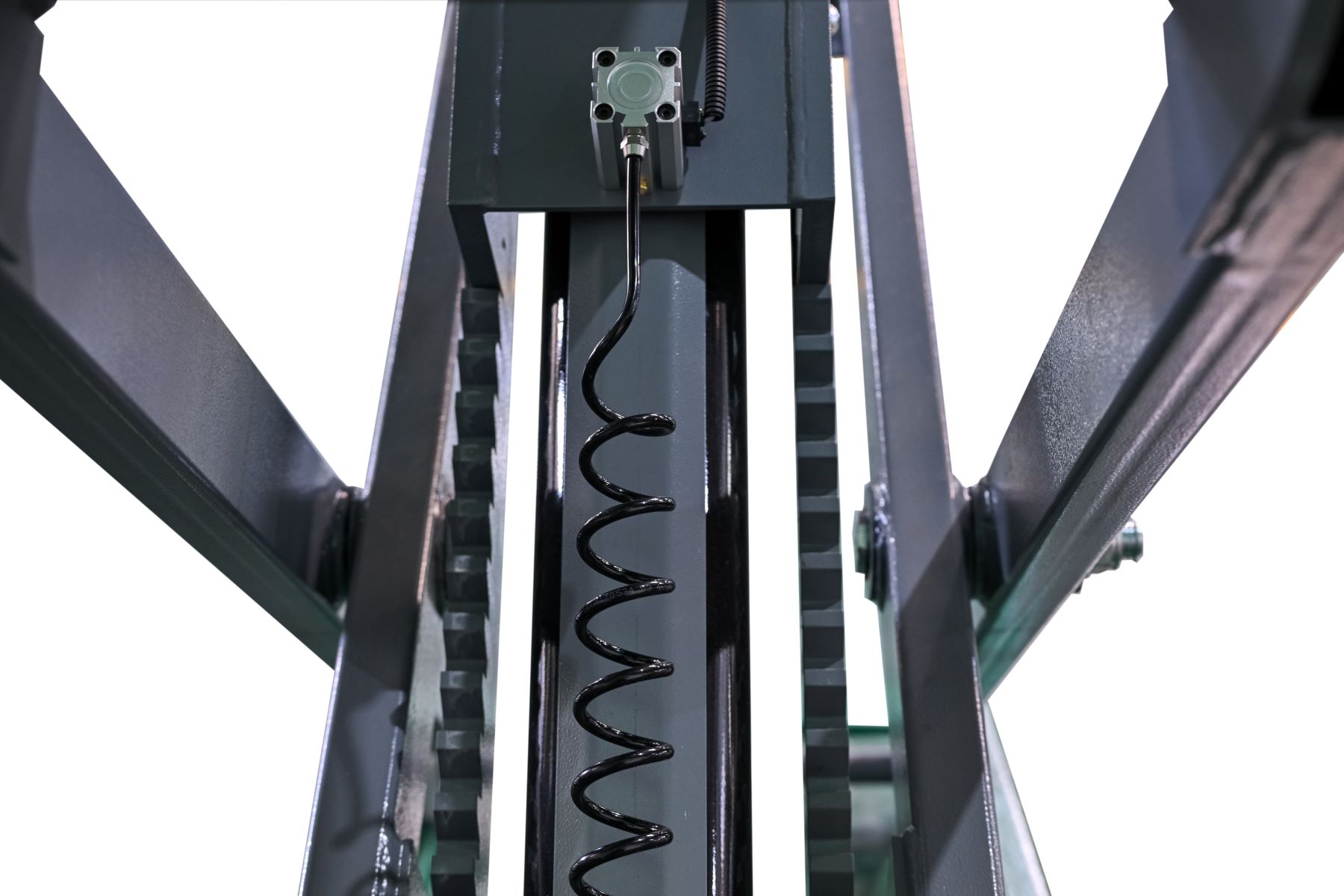

| ◆ | Three-tooth protection to improve the strength of the insurance |
| ◆ | 2.2kW aluminum-shell motor to reduce motor load rate |

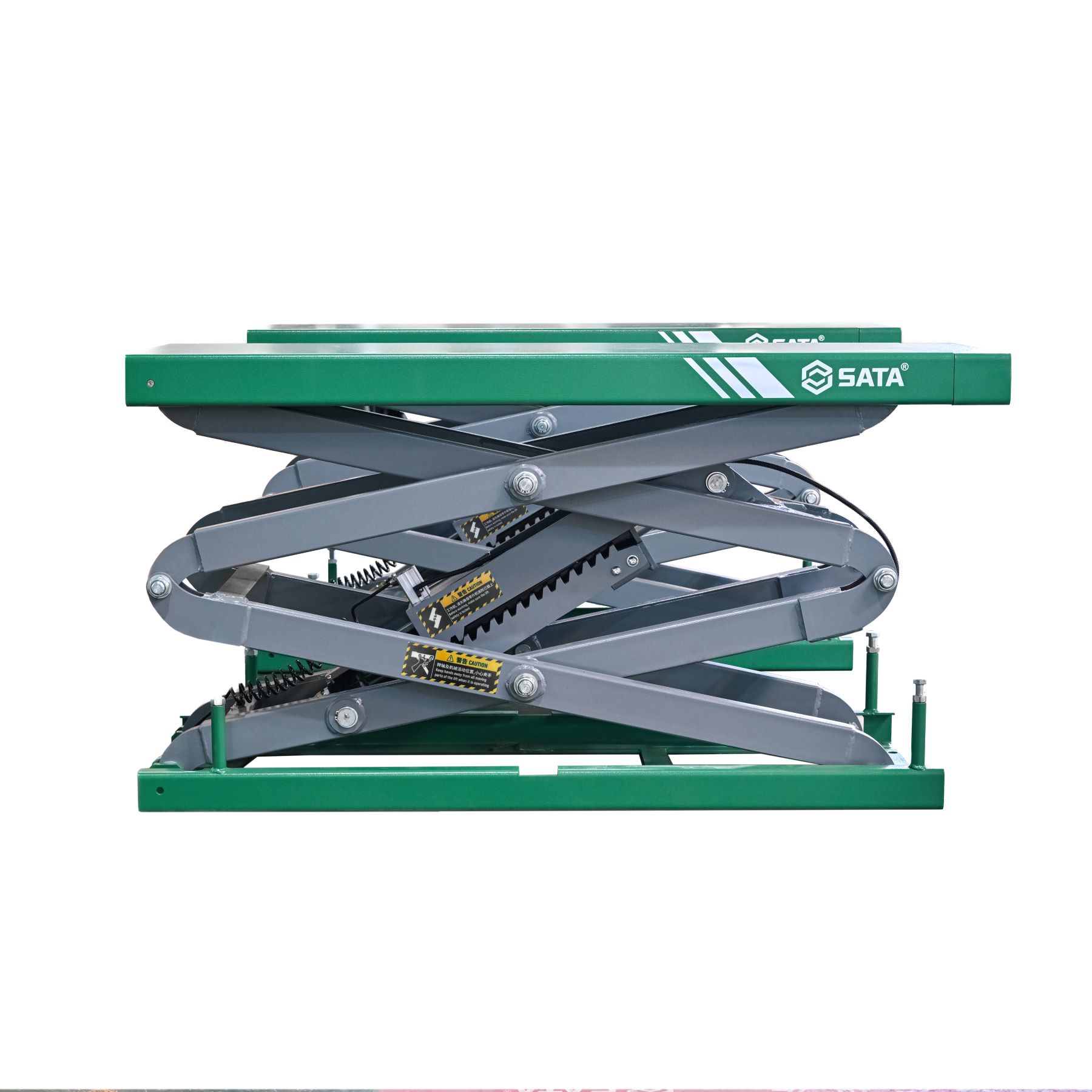

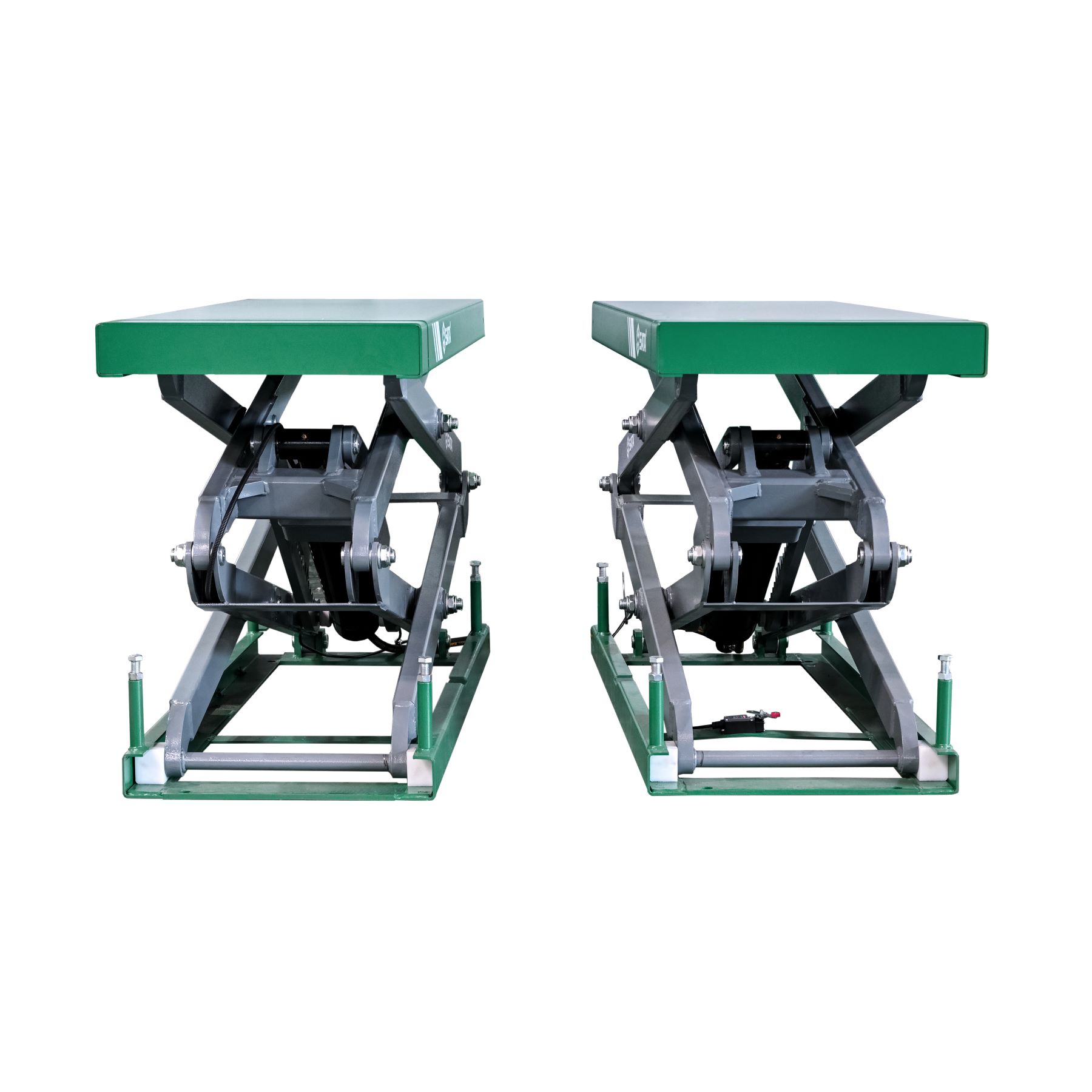

| ◆ | Single-sided pull-out telescopic platform, suitable for a wide range of models |
| ◆ | There is an alarm prompt when descending to protect personal safety |
| ◆ | The oil filling valve imported from Italy is adopted, which has good sealing and is not easy to leak oil |
