Product No. 3 51073
Voltage 380V
Rated load 5T
Minimum Height 110MM
Lifting height 1920MM
Frontal load rise time 60s
Frontal load drop time 50s

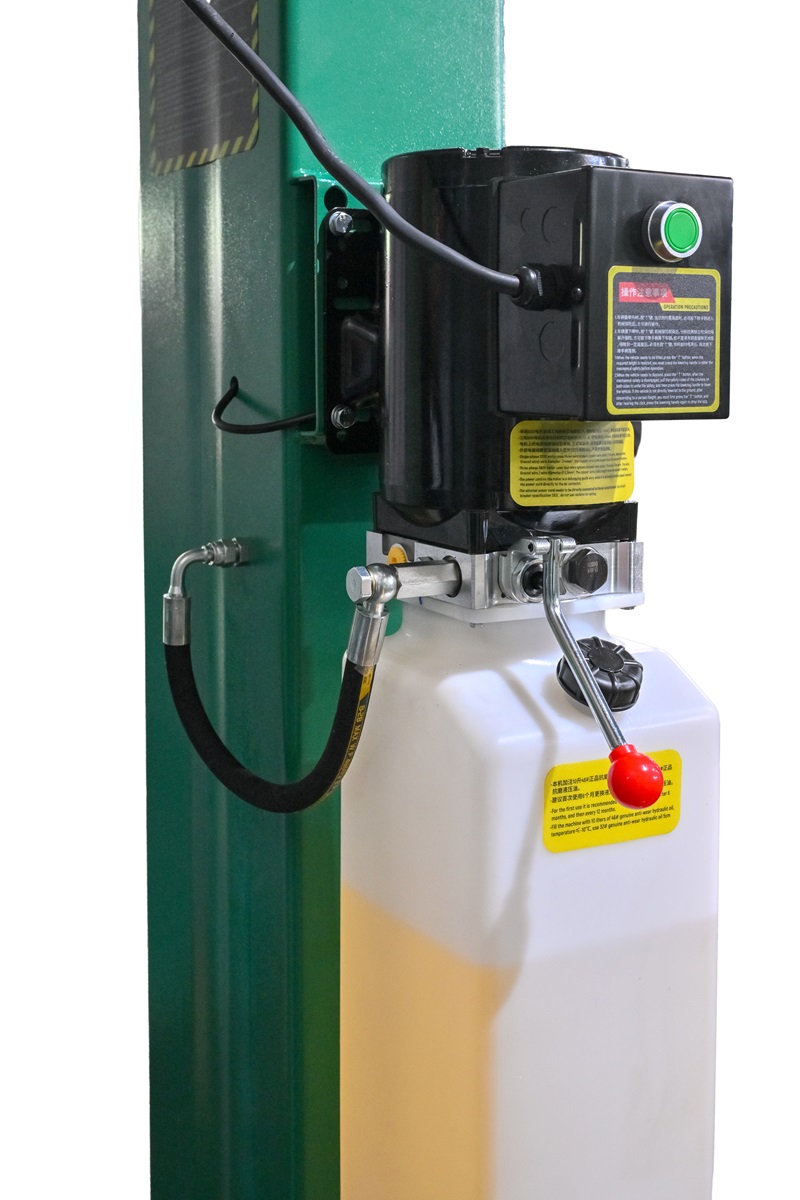

Motor power 3KW
Motor shell Iron shell
Total height 3900MM
Inside width of column 3000MM
Outside width of base plate 3586MM
Pallet Threads 3 sections of 75MM adjustable
Length of pallet raising sleeve 100MM
Bracket type 2+3 straight arms
Electric control method 24V safety voltage control box (matching)
Base plate fixing holes 10pcs
Unlocking method Manual bilateral
Warranty Terms 1 year
◆The cable and oil pipes are fully shielded, presenting an aesthetically pleasing appearance
◆Mechanical safety device, bilateral manual unlocking, manual lowering
◆The column adopts 10 bending processes, which makes the whole machine have high strength and run more smoothly

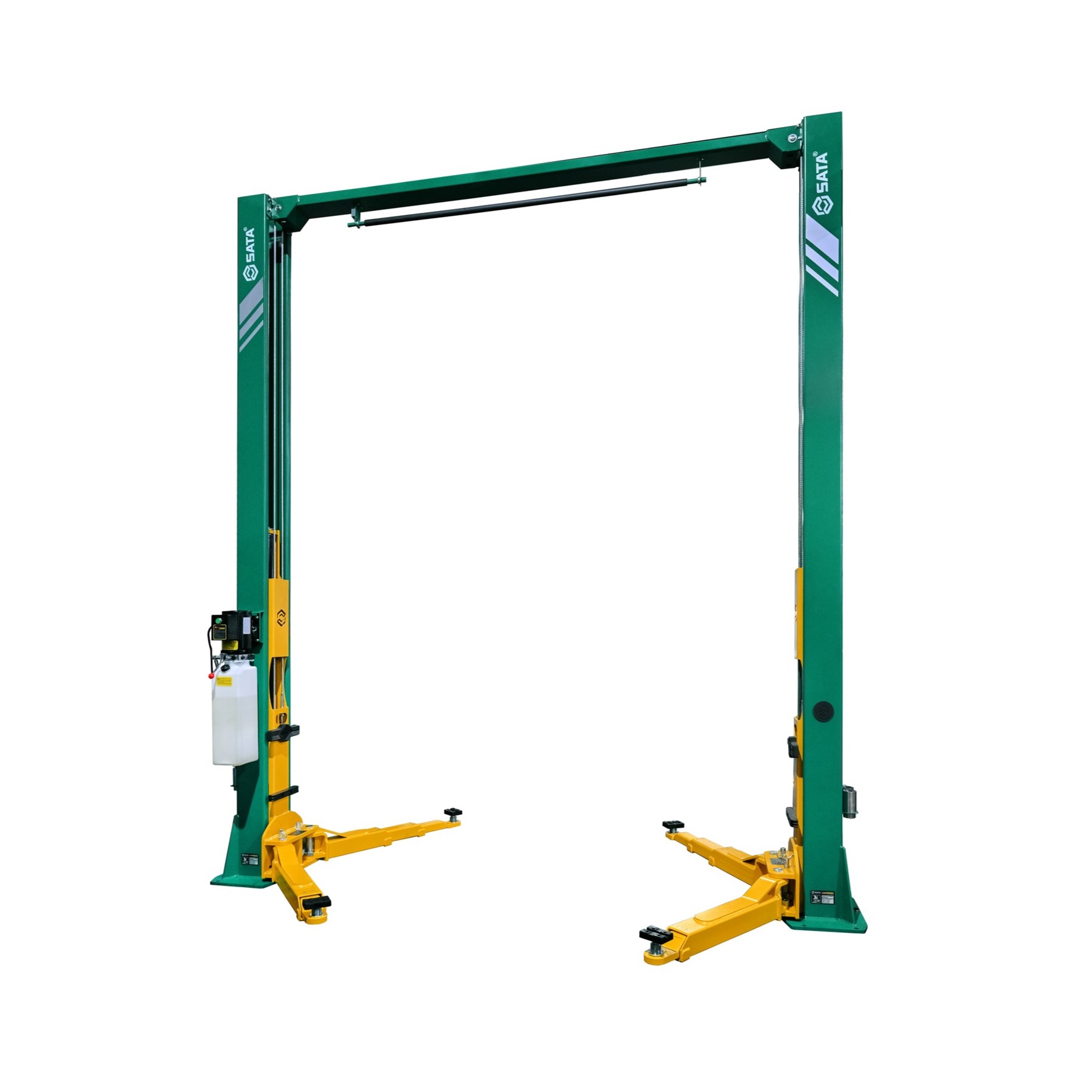

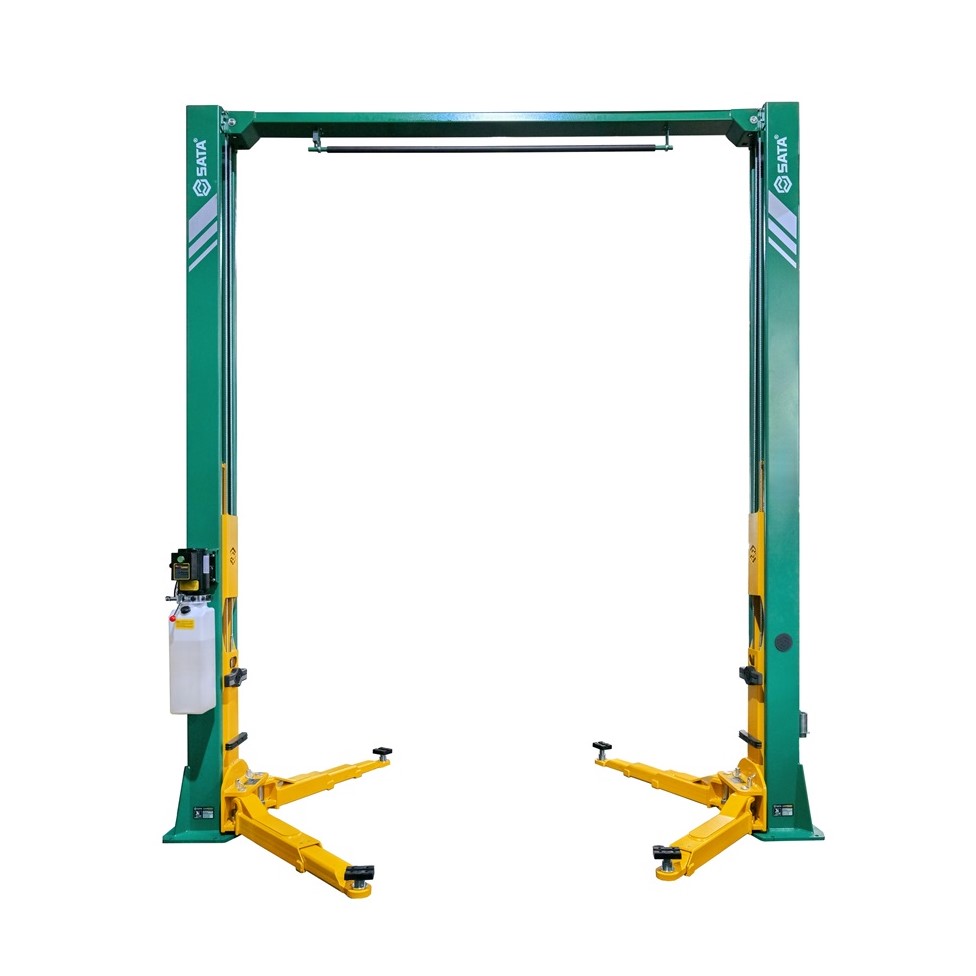

◆The column is designed to reach the top, and the crossbeam and the vertical column are directly connected, resulting in excellent overall rigidity and a more attractive appearance

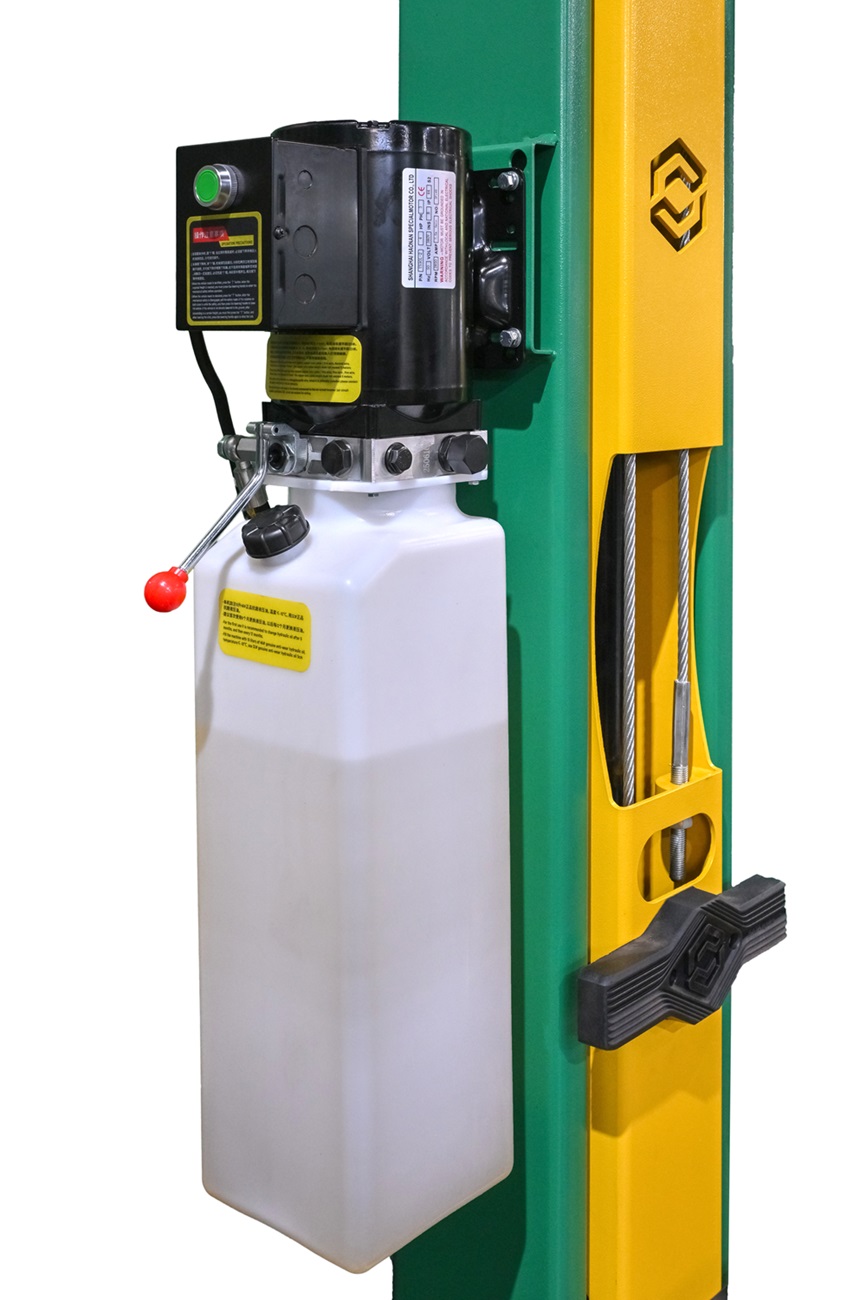

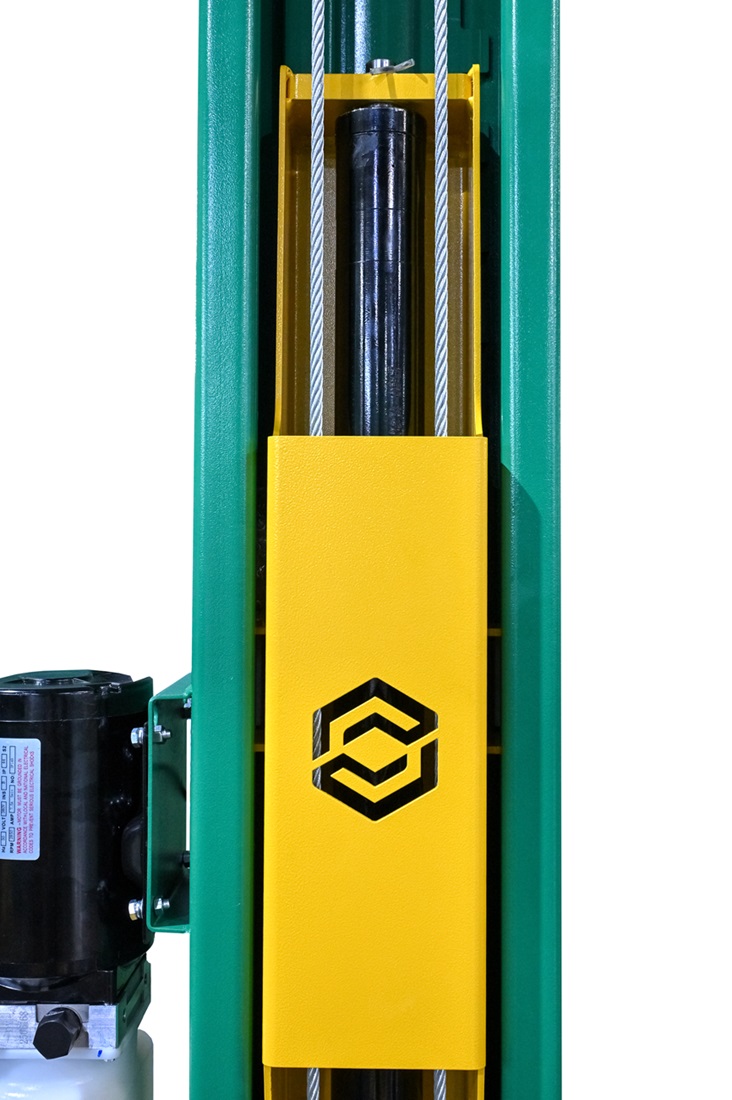

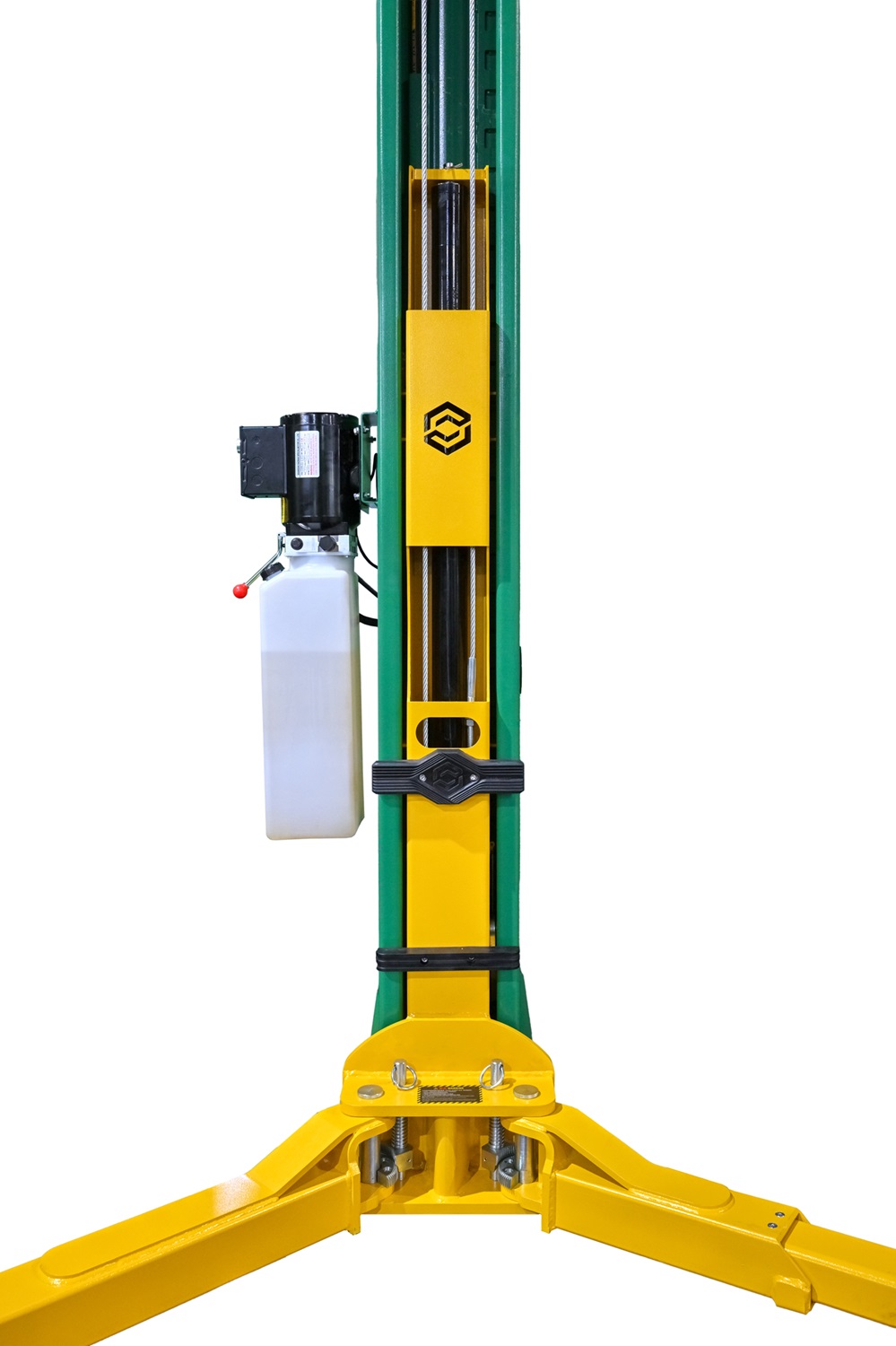

◆The oil cylinder is directly driven to avoid the potential safety hazard of chain breakage
◆Double-layer steel wire oil pipes are adopted, featuring a high safety factor

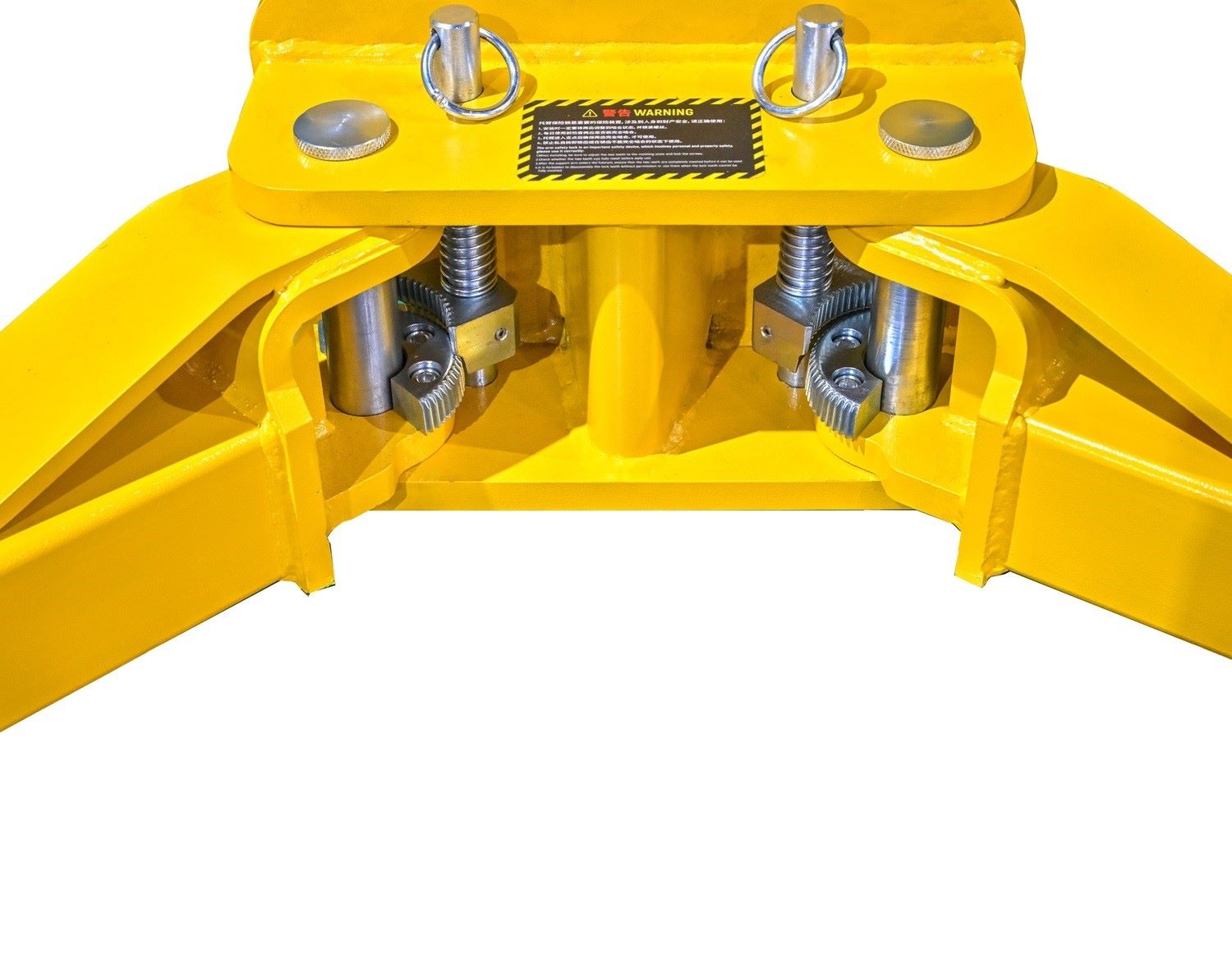

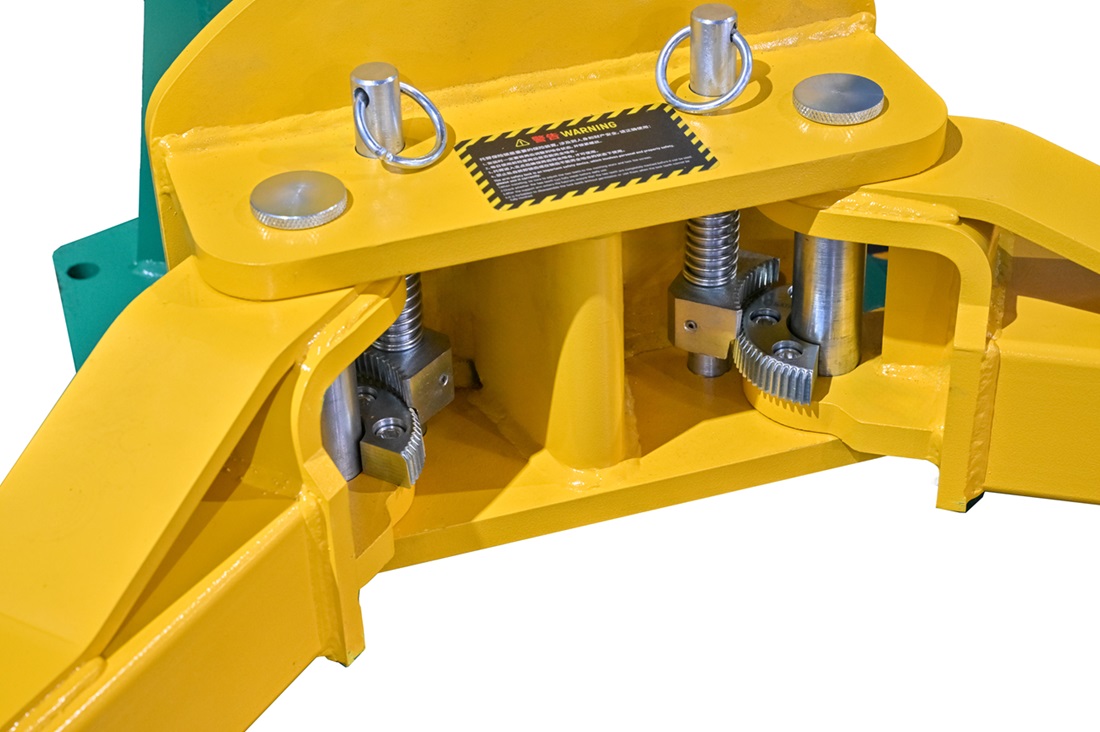

◆Strengthened bracket safety teeth, greater locking force, to protect the safety of people and vehicles

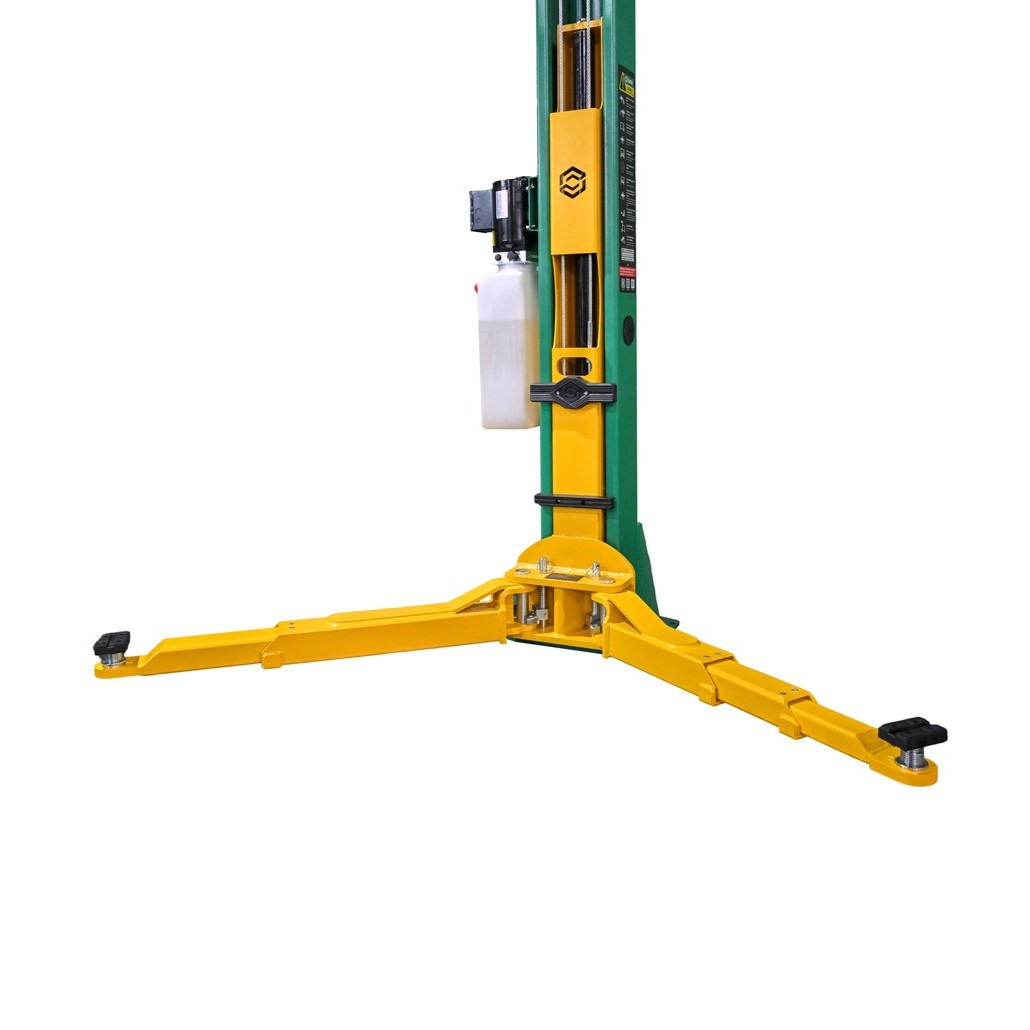

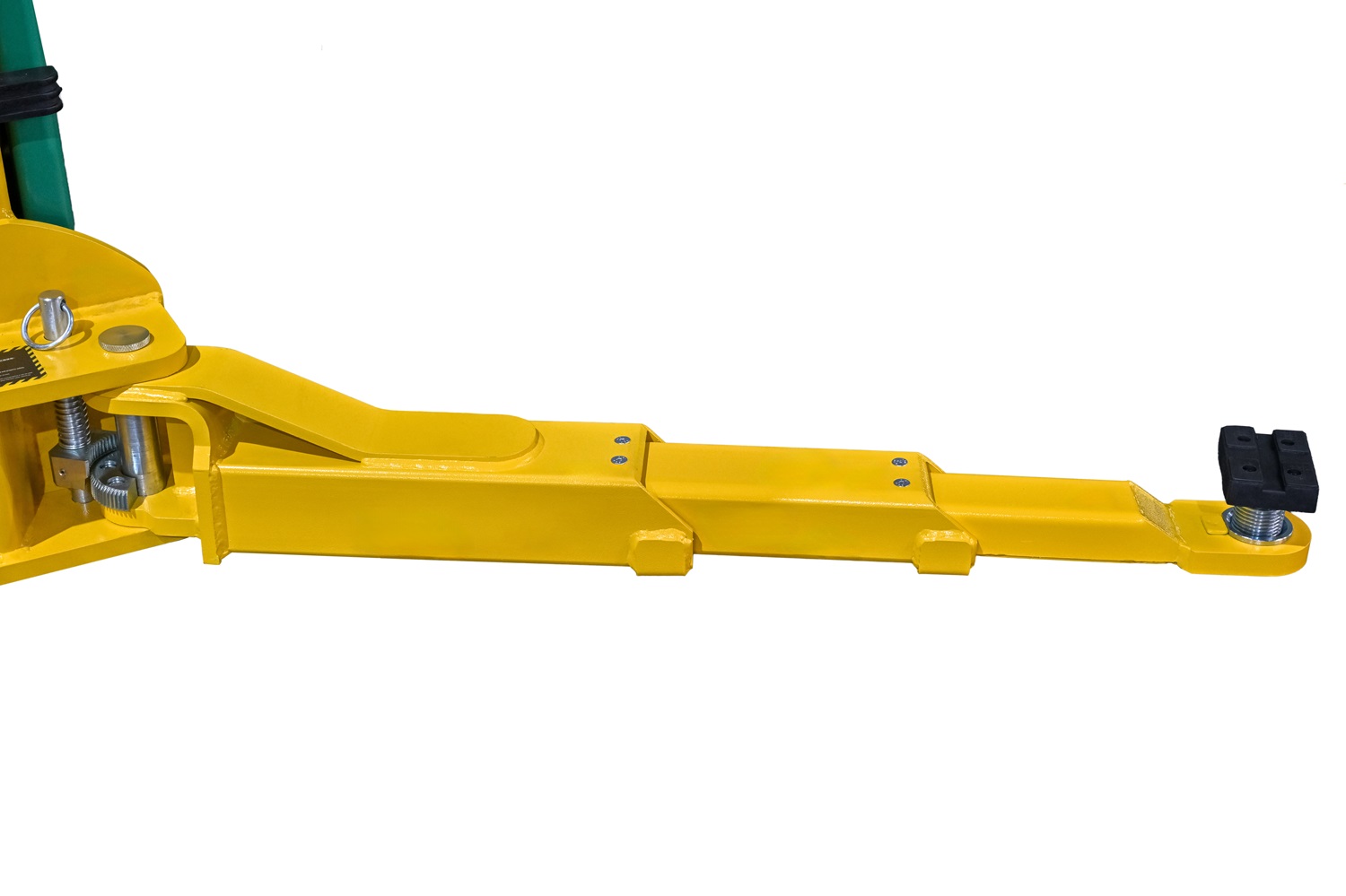

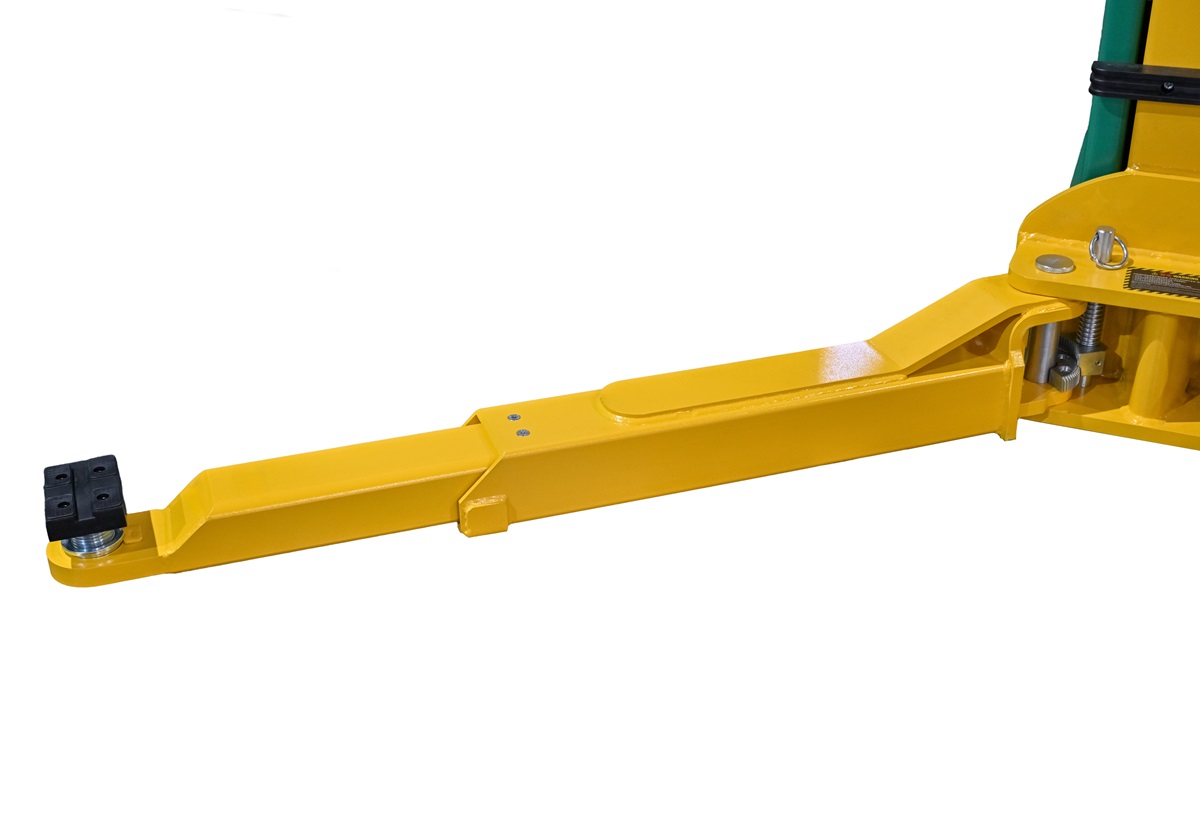

◆It adopts the design of 2+3 straight support arm, which is suitable for a wider range of models
◆The sliding table is designed with an extended length of 1993MM, which increases the force-bearing range, ensures high strength and enables stable operation

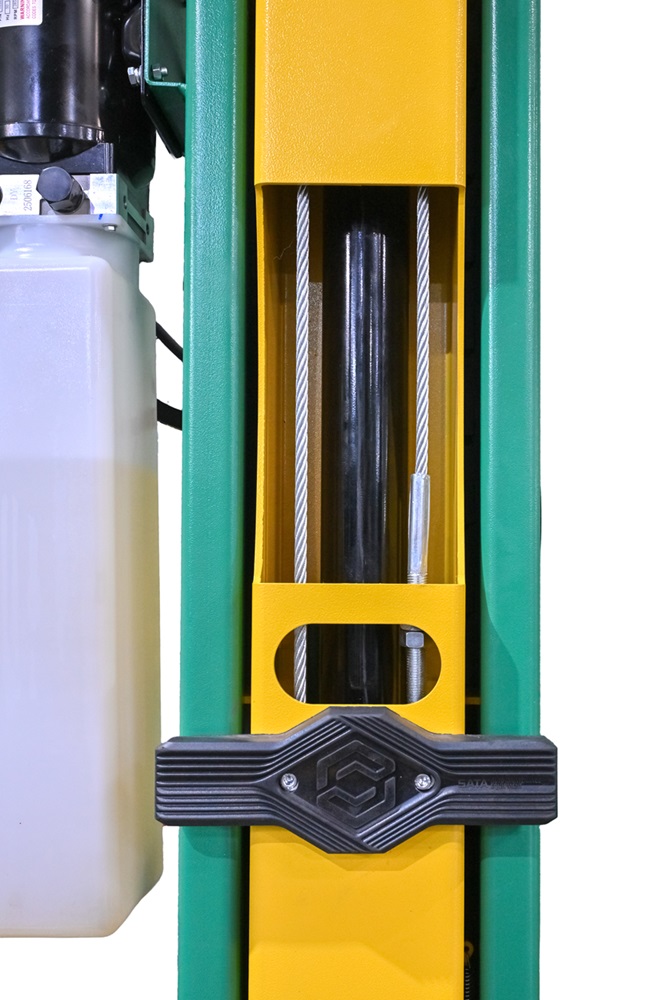

◆The slide bumper strips have been increased from 1 to 2 groups to protect against accidental collisions when the doors are opened and closed.
◆The slider is increased from 2 groups to 3 groups to increase the force area and improve stability

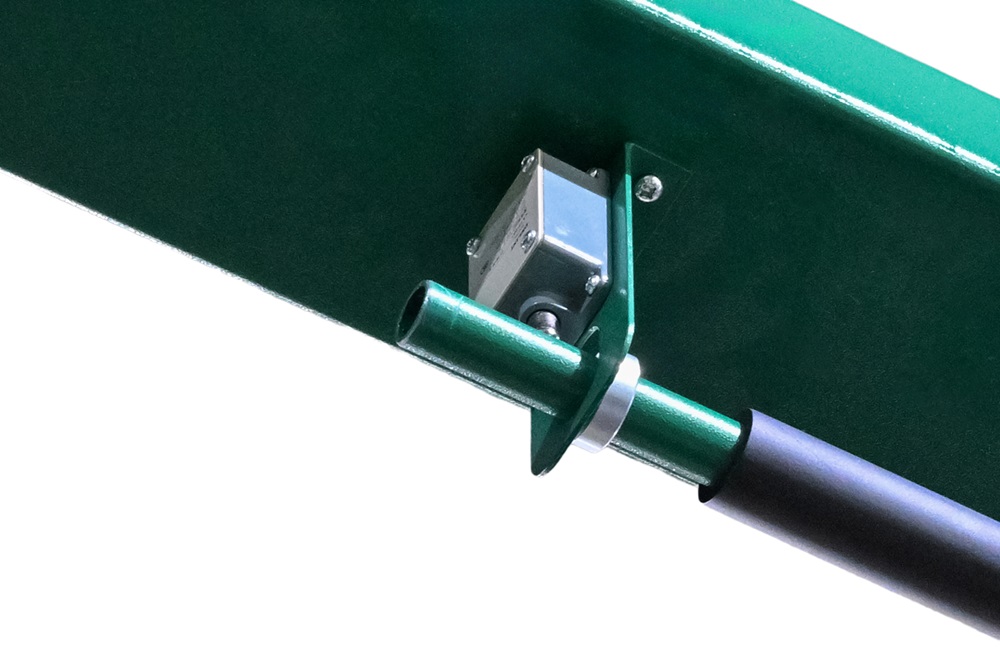

◆Set the lifting height limit of the roof beam to protect the safety of people and vehicles
◆Standard configuration includes a three-section rectangular spiral tray, and it can be used for a wider range of models

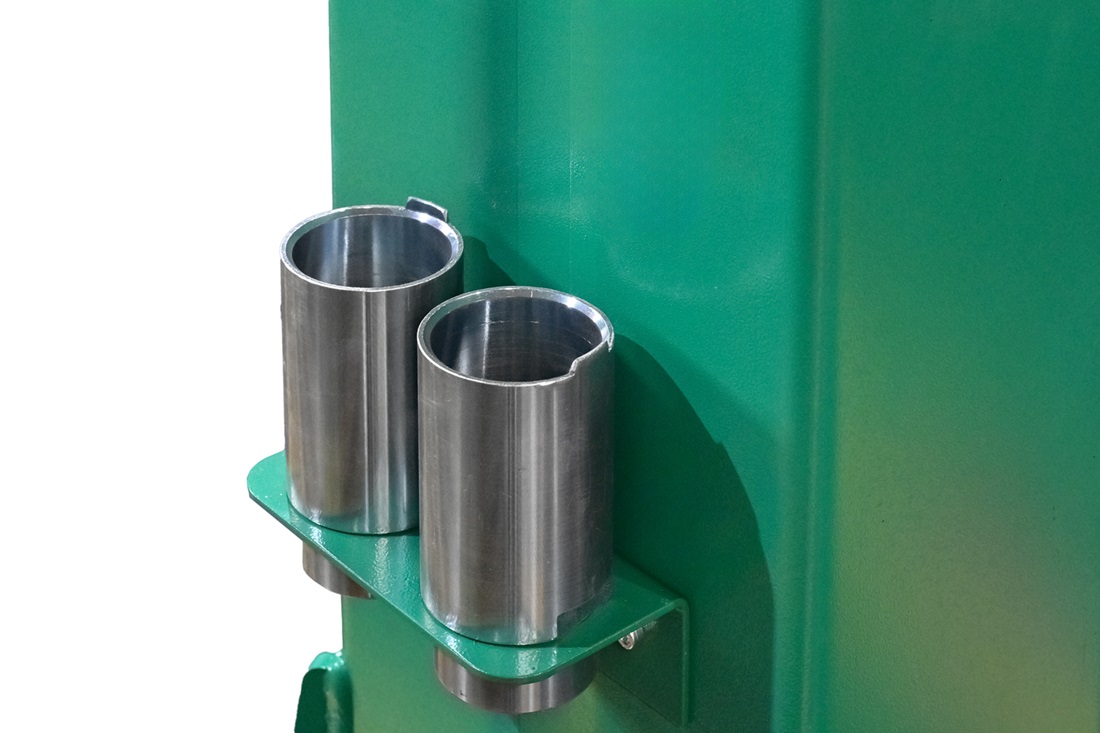

◆Equipped with a tray height sleeve as standard, suitable for SUV models
◆Equipped with 10 pieces M18X200 expansion bolts
