| Product No. | 3 35130 | ||
| Power input | AC 220V 50/60Hz | ||
| Detection method | Direct pressure | ||
| Air source | 0.2-0.6Mpa, clean, water-free and oil-free | ||
| Test Pressure Range | 2-500kPa, detection accuracy: 0.05% FS | ||
| Pressure resolution | 0.1Pa | ||
| Parameter preset | Support | ||
| Data recording | Support | ||
| Dimensions | 370x256x220mm | ||
| Net weight | 13.5kg (without accessories) | ||
| Warranty Terms | 1 year, excluding consumable parts | ||

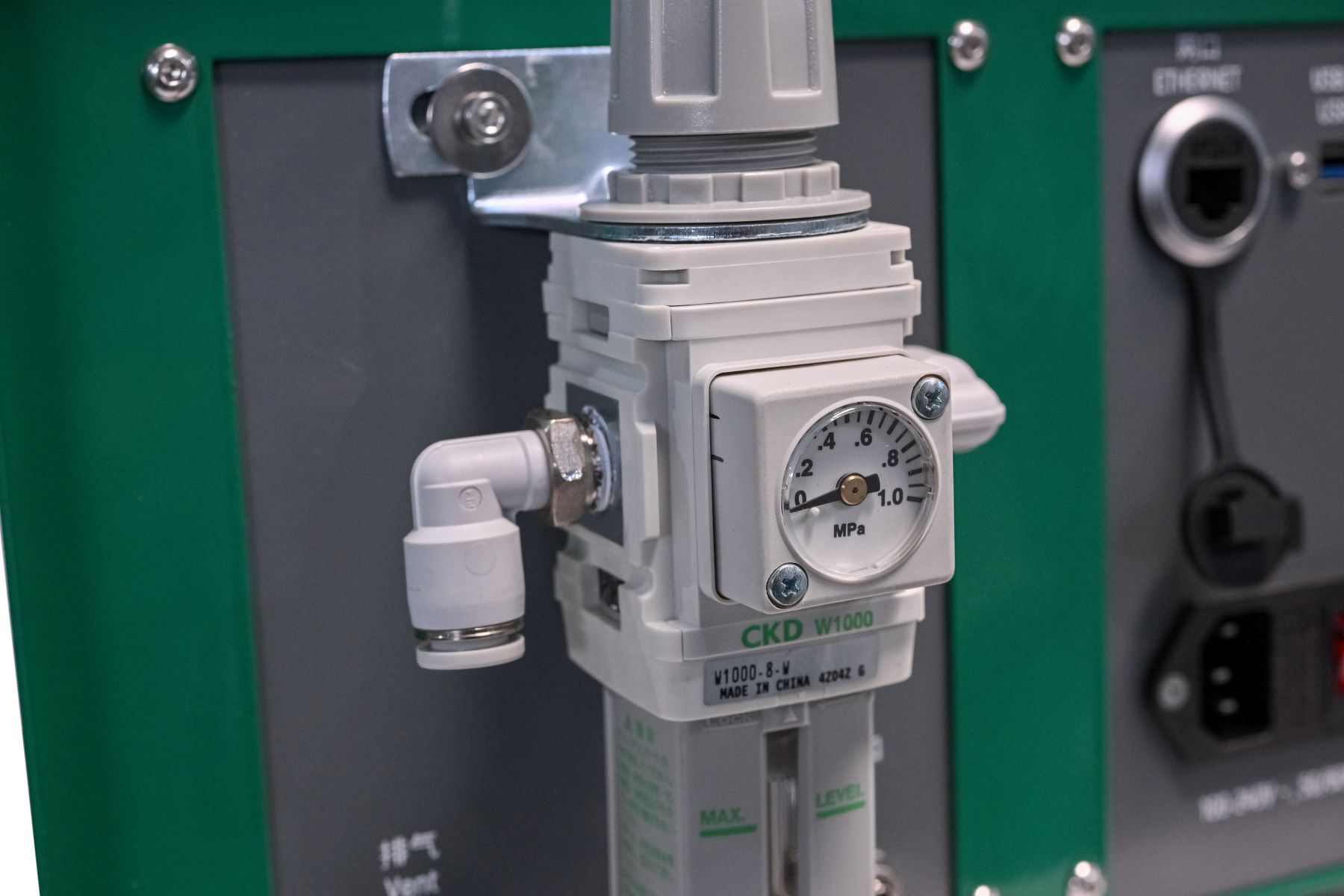

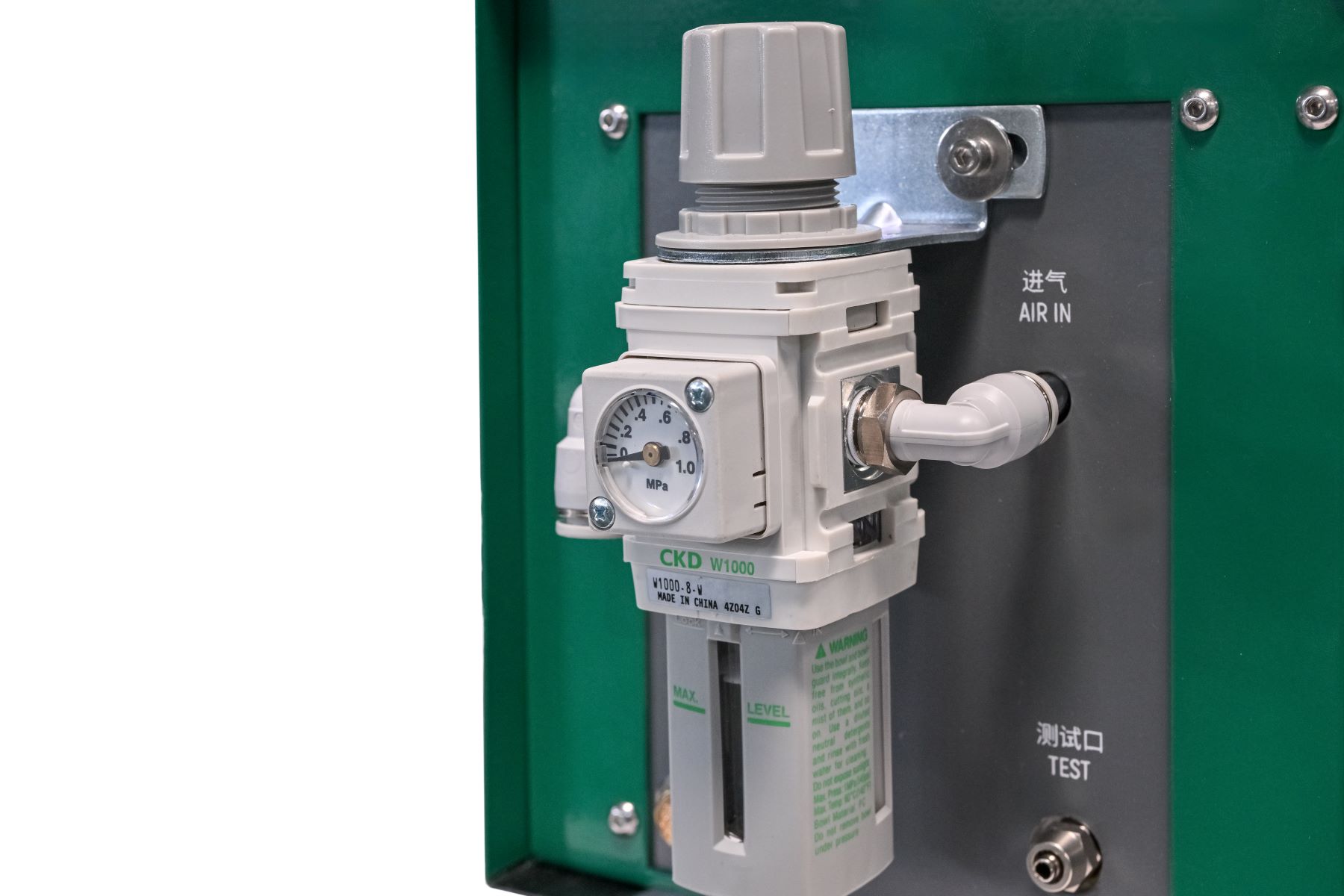

| ◆ | Automatic precision pressure regulator (2~500kPa) |

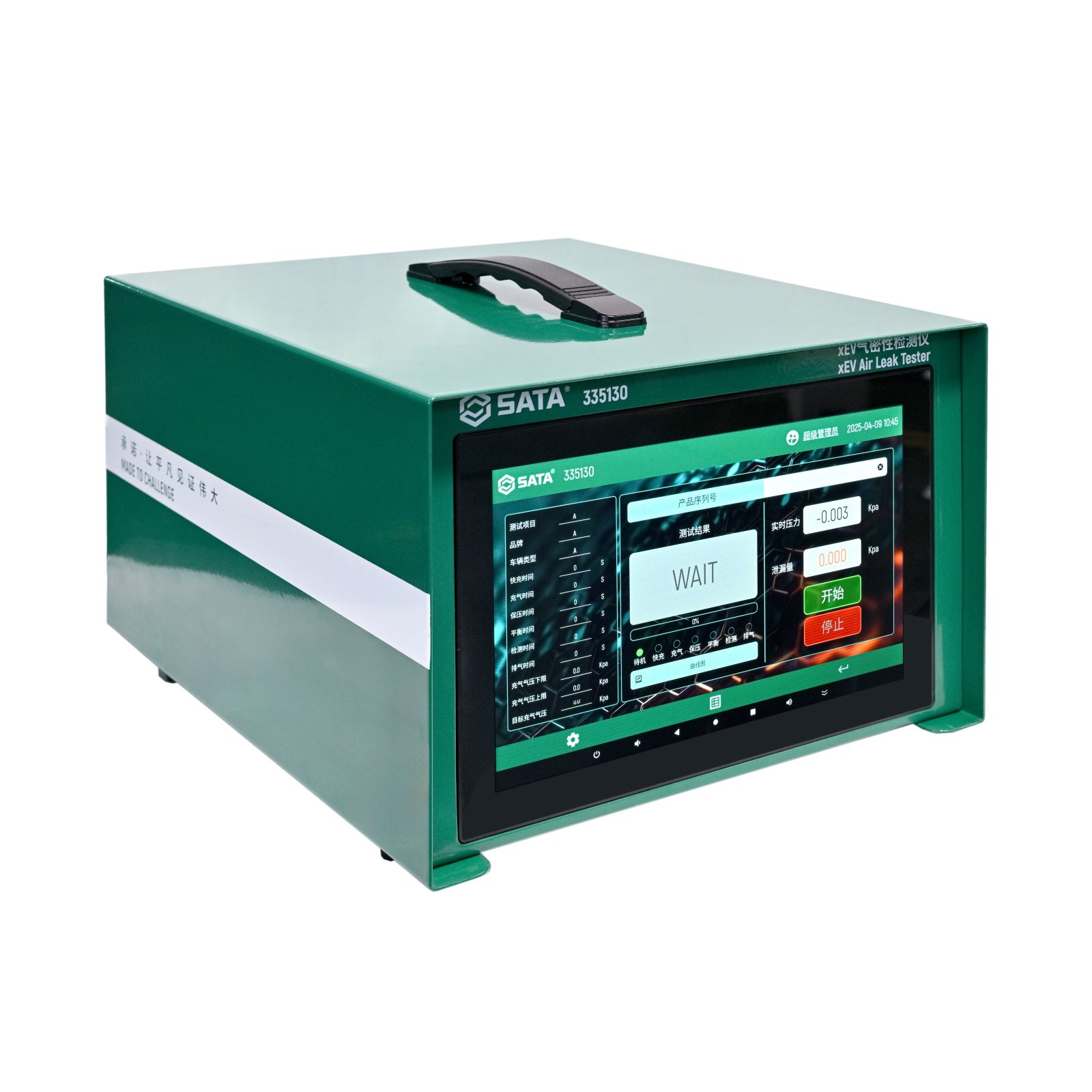

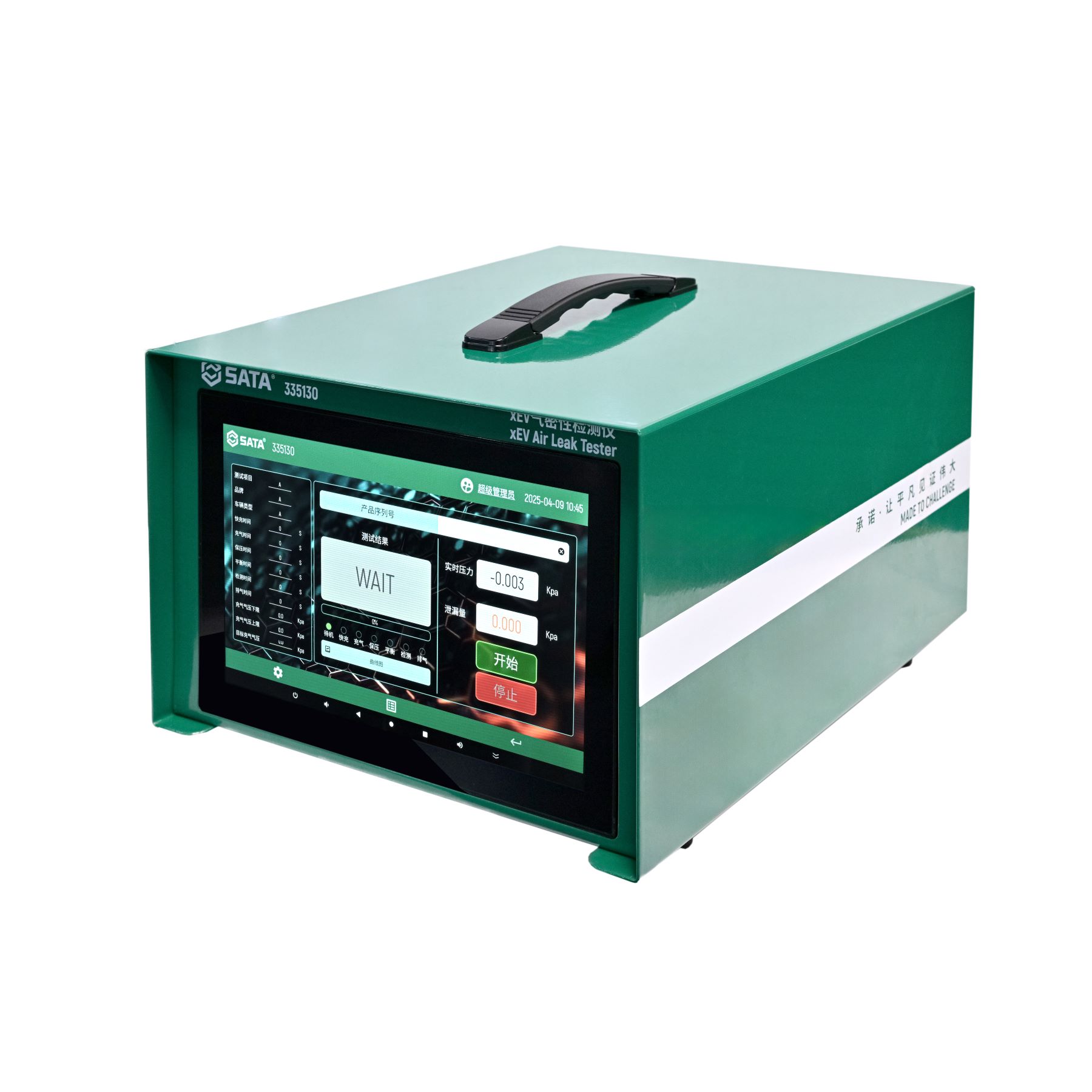

| ◆ | 10-inch touchscreen |

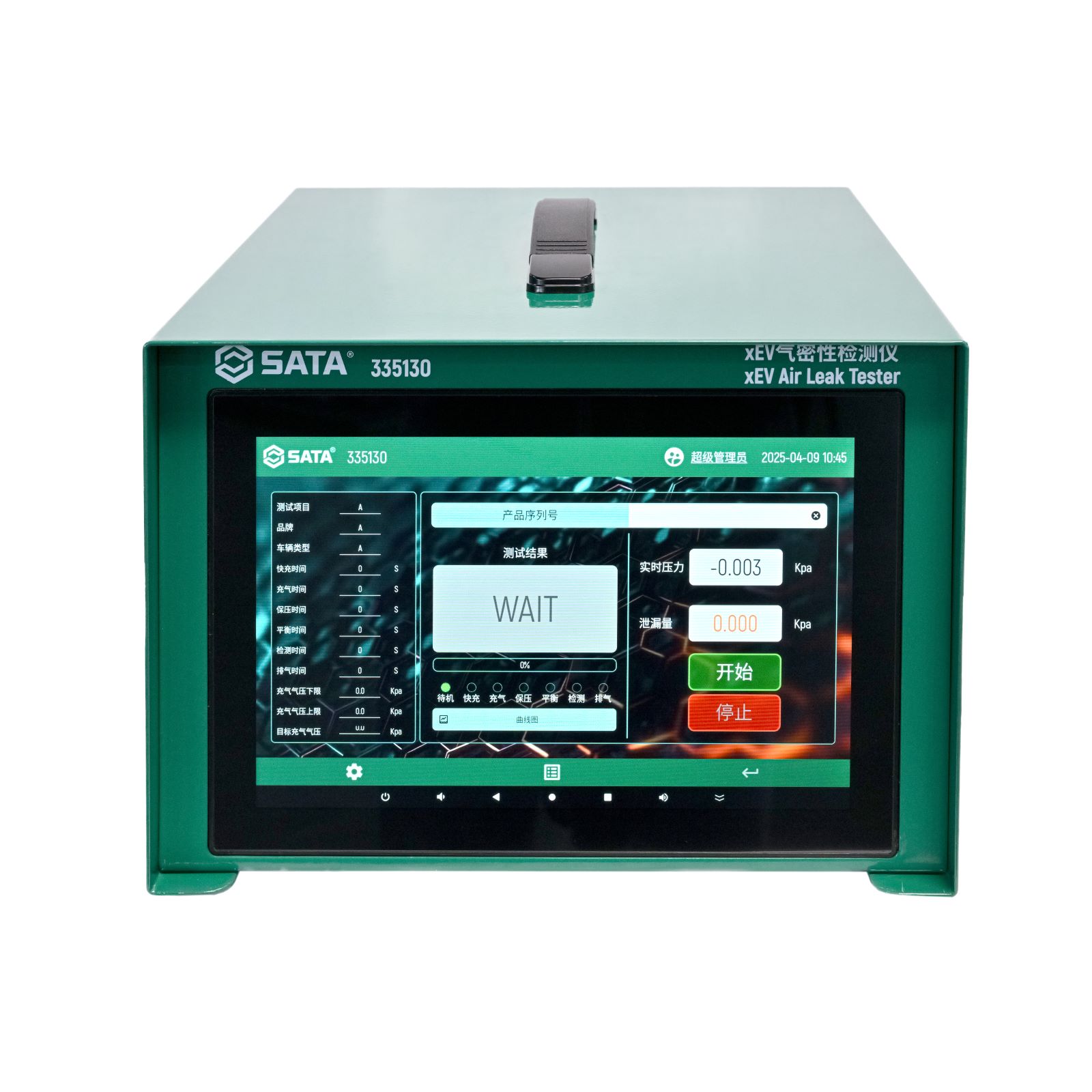

| ◆ | The testing page included current pressure,test time, tinal result,etc..info. |
| ◆ | Self-diagnosis/ Fault protection |
| ◆ | Barcode scanner compatibility |
| ◆ | Support data export from USB |
