| Product No. | 3 35110 | ||
| Power input | AC90-264V 40-60Hz | ||
| Maximum power | 600W | ||
| Balanced charge and discharge voltage range | 1.8-4.2V (can be set to 0-5V) | ||
| Test voltage accuracy | ±0.1%FS+2mV, resolution: 0.001V | ||
| Balanced charge and discharge current range | 0.1-5A | ||
| Test current accuracy | ±1%FS±0.05A (maximum range 5A) | ||

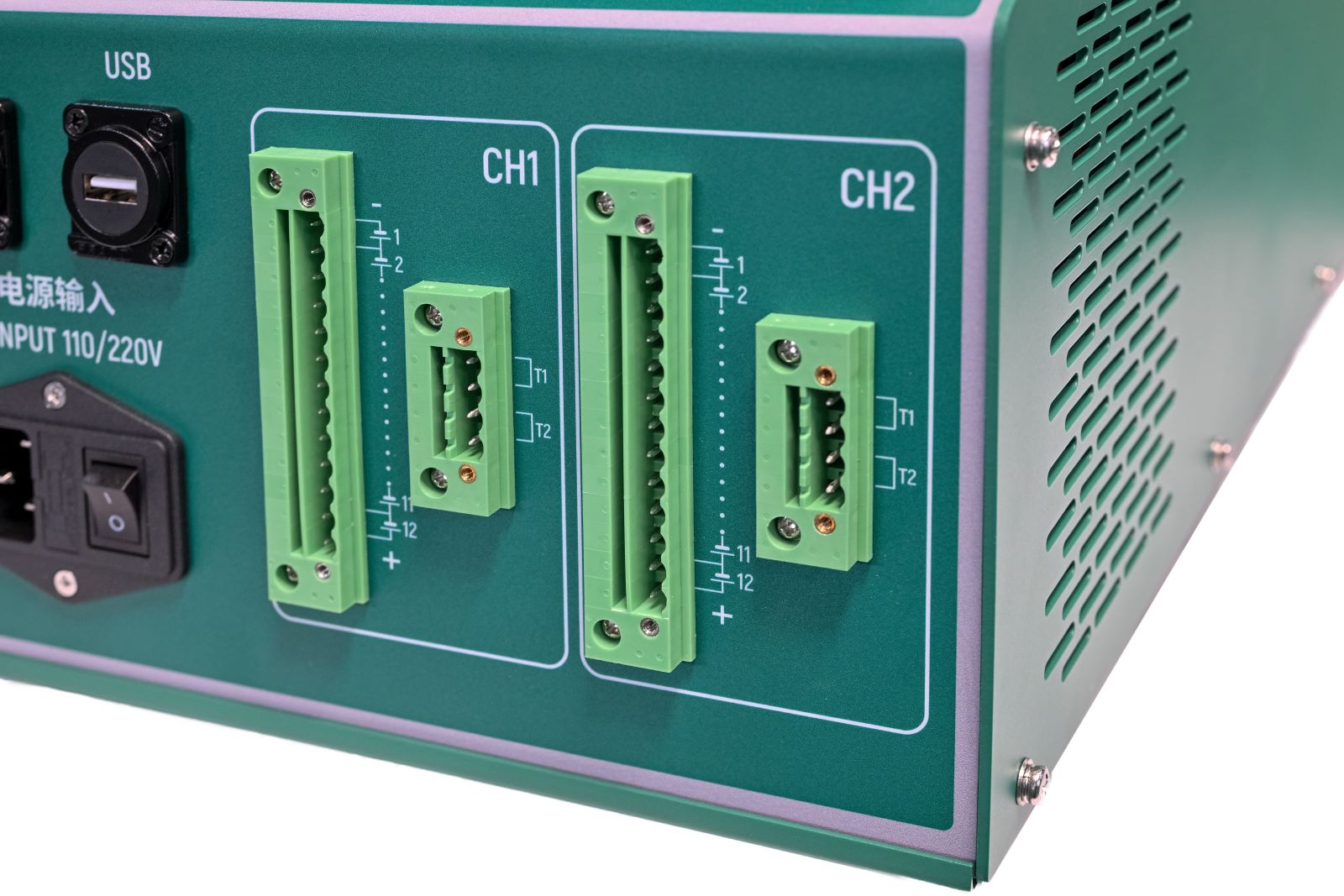

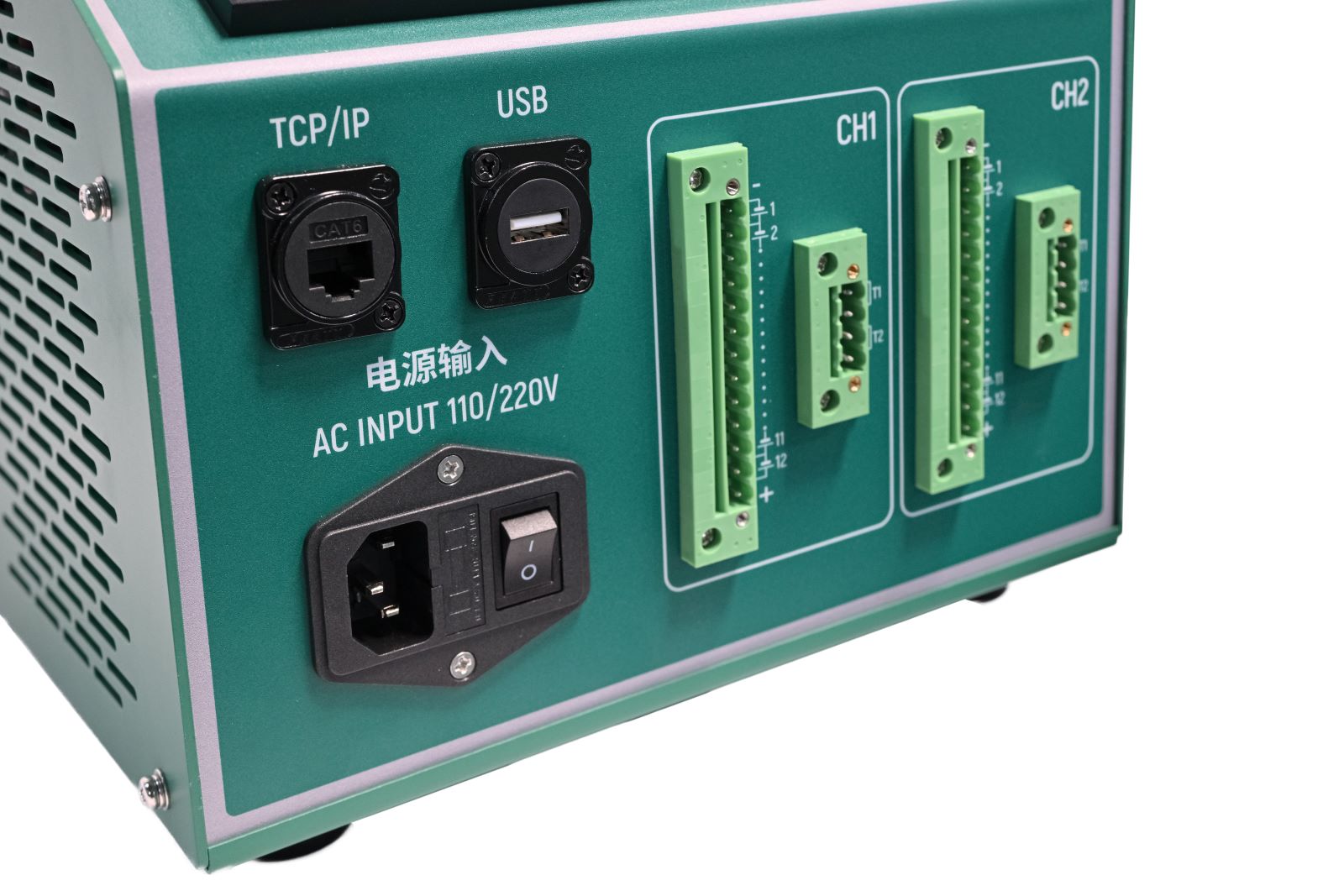

| Equalization Channel | 2x12 CH | ||

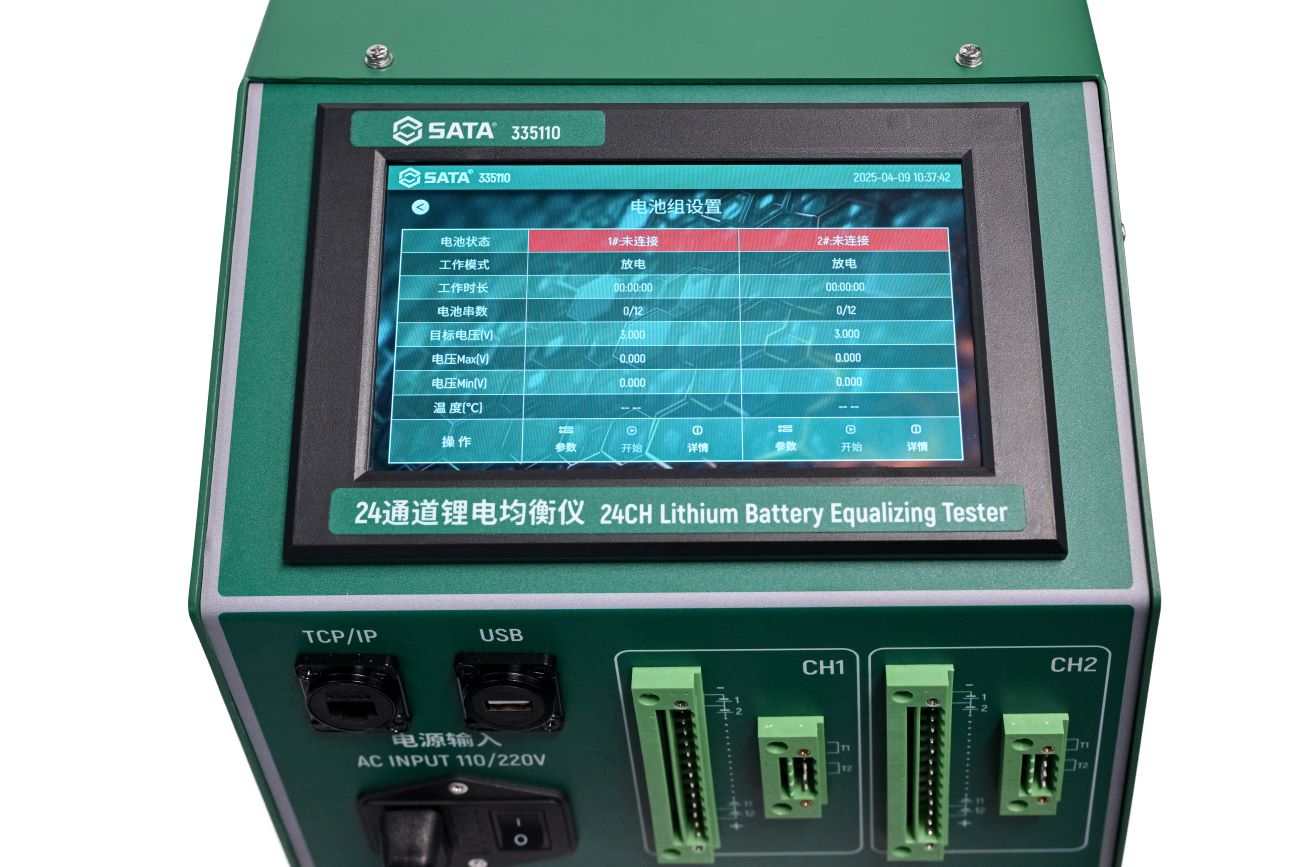

| Display | 7-inch color touch LCD screen | ||
| Dimensions | 515x246x247mm | ||
| Net weight | 12kg | ||
| Warranty Terms | 1 year, excluding consumable parts | ||
| ◆ | True balancing technology to ensure balance quality without obstuct BMS |
| ◆ | Intelligent balancing with programming included |
| ◆ | Balancing end condition: By voltage deviation below a threshold or current threshold |
| ◆ | Voltage/current calibration and correction function |
| ◆ | Data logging (direct view or export via USB port) |
| ◆ | Multiple protections & alarms |
