| Product No. |
3 35090
|

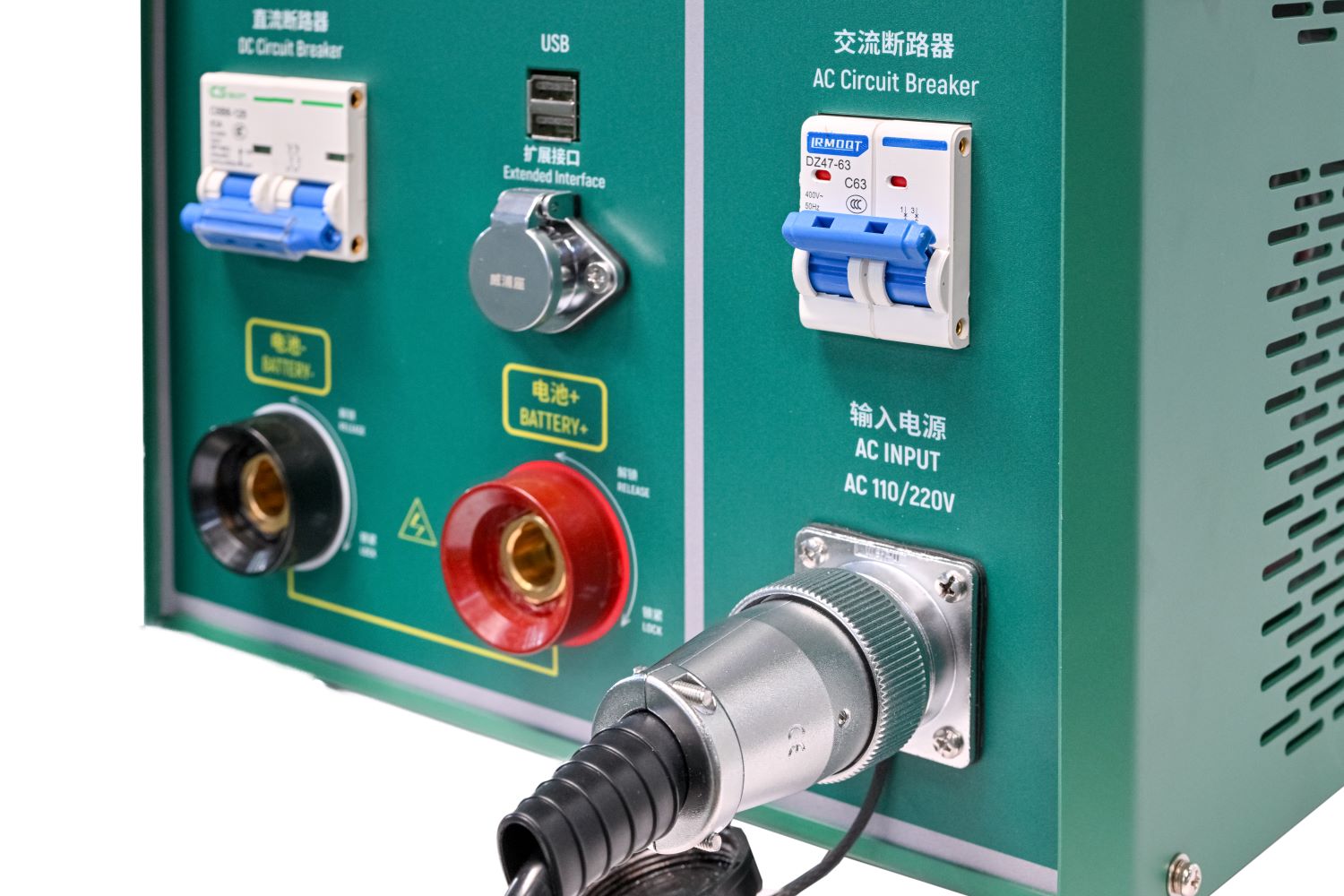

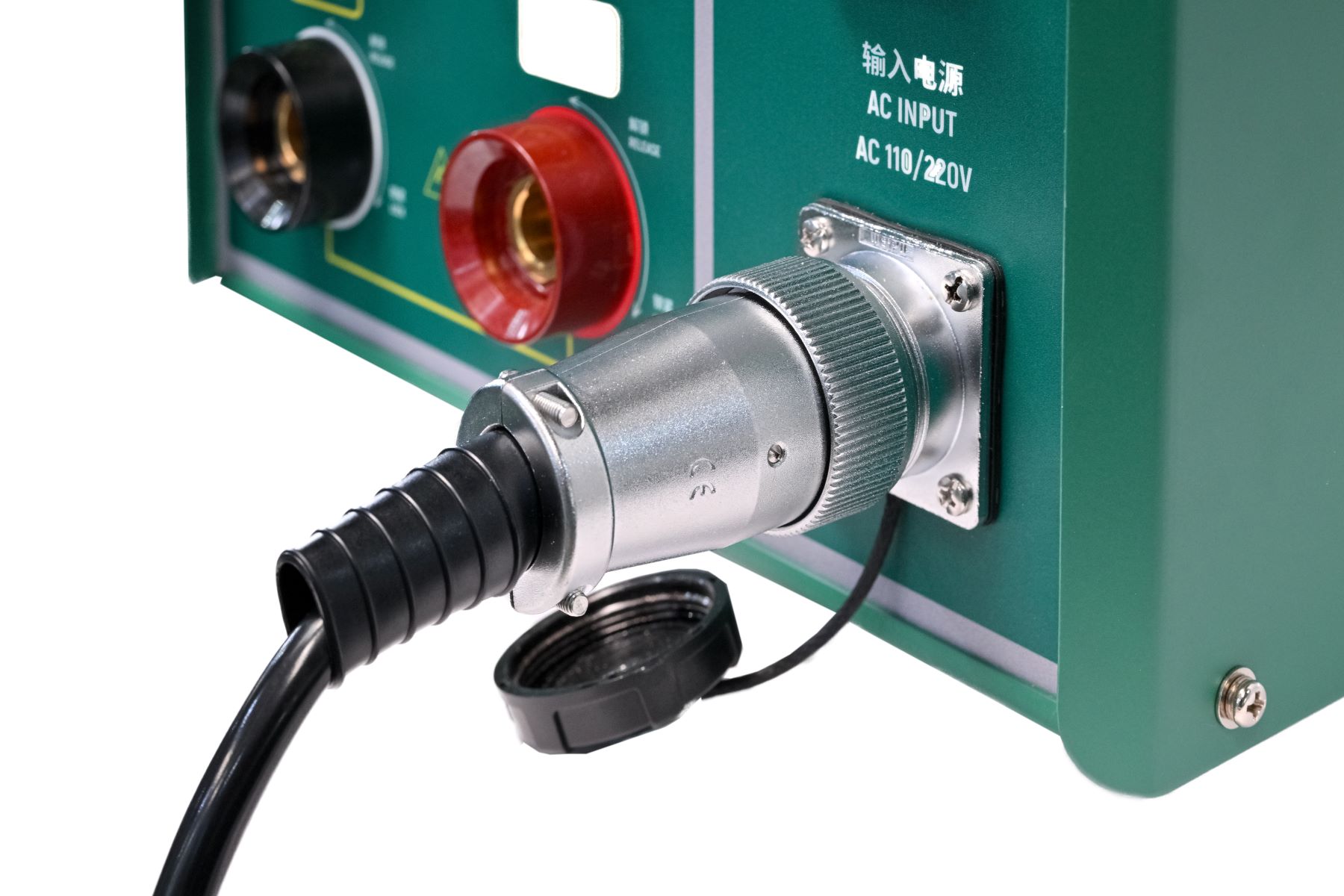

| Power input |
AC90-264V 40-60Hz |
| Charging/ discharging voltage range |
DC 2-120V |
| Module voltage sampling accuracy |
±0.5%FS+0.3V, resolution: 0.1V |
| Cell voltage sampling accuracy |
±0.2%FS+5mV, resolution: 0.01V |
| Test current accuracy |
±1%FS+0.2A, resolution: 0.1A |
| Charging power |
1-50A@2-120Vdc/6kW max |
| Discharge power charge and discharge control |
1-20A@2-15Vdc
1-50A@10-120Vdc/6kW max |
| Charge and discharge method |
Constant current charge and discharge + constant voltage charge |
| Battery sampling box |
24 CH |
| Dimensions |
512x295x339mm |
| Net weight |
25kg |
| Warranty Terms |
1 year, excluding consumable parts |
