Product No. 3 10023
L (CM) 247.5
W (CM) 171
H (CM) 214
Suitable for rim diameter 12"-32"
Maximum tire diameter 1140MM

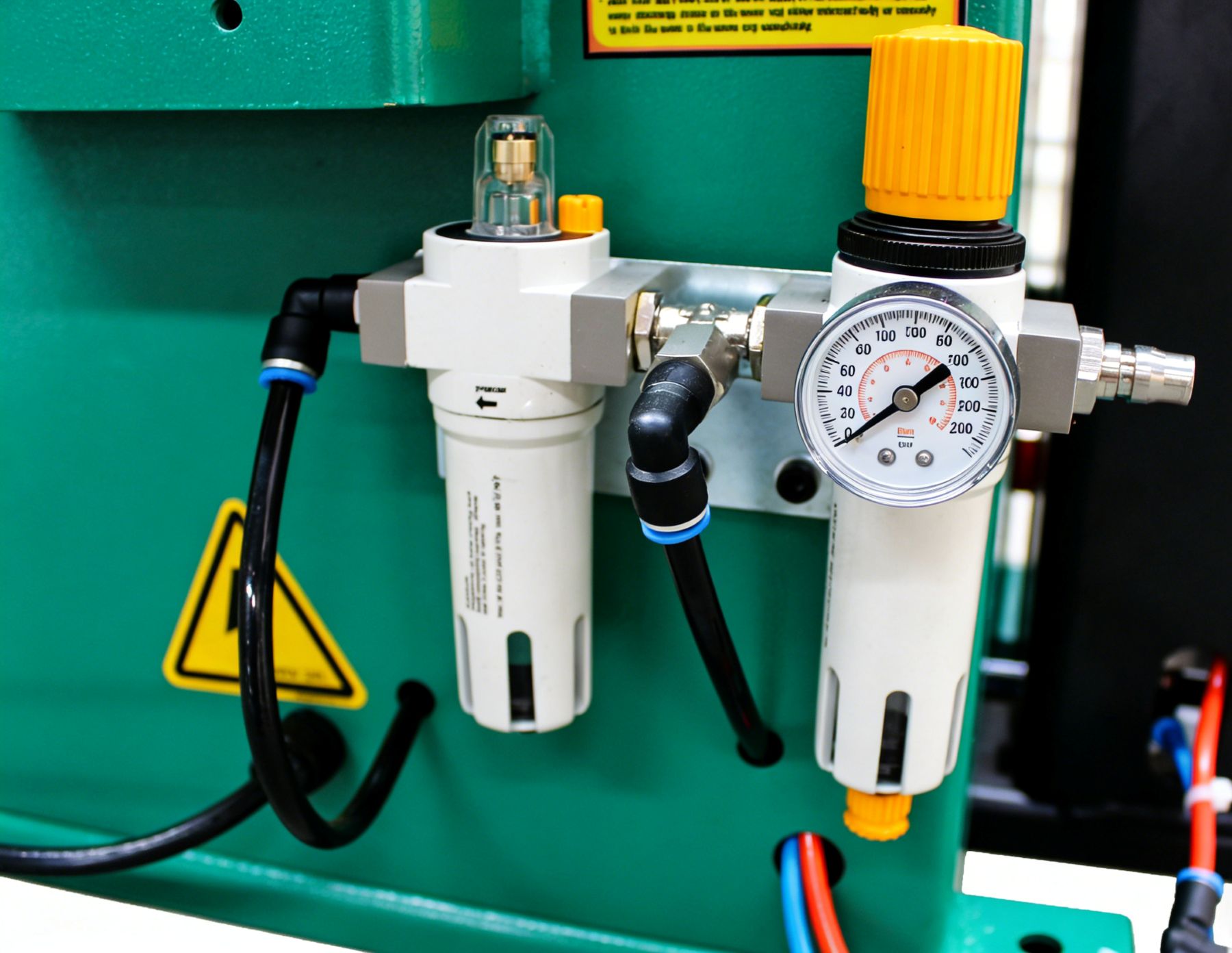

Working air pressure 8-10bar
Voltage 380V
Motor power 1.1kW
Large disc rotational speed 0~15rpm
Rated Lifting Capacity (Tire) 80kg
Operating noise <70dB
Net Weight (kg) 400
Warranty Terms 1 year (except consumables)

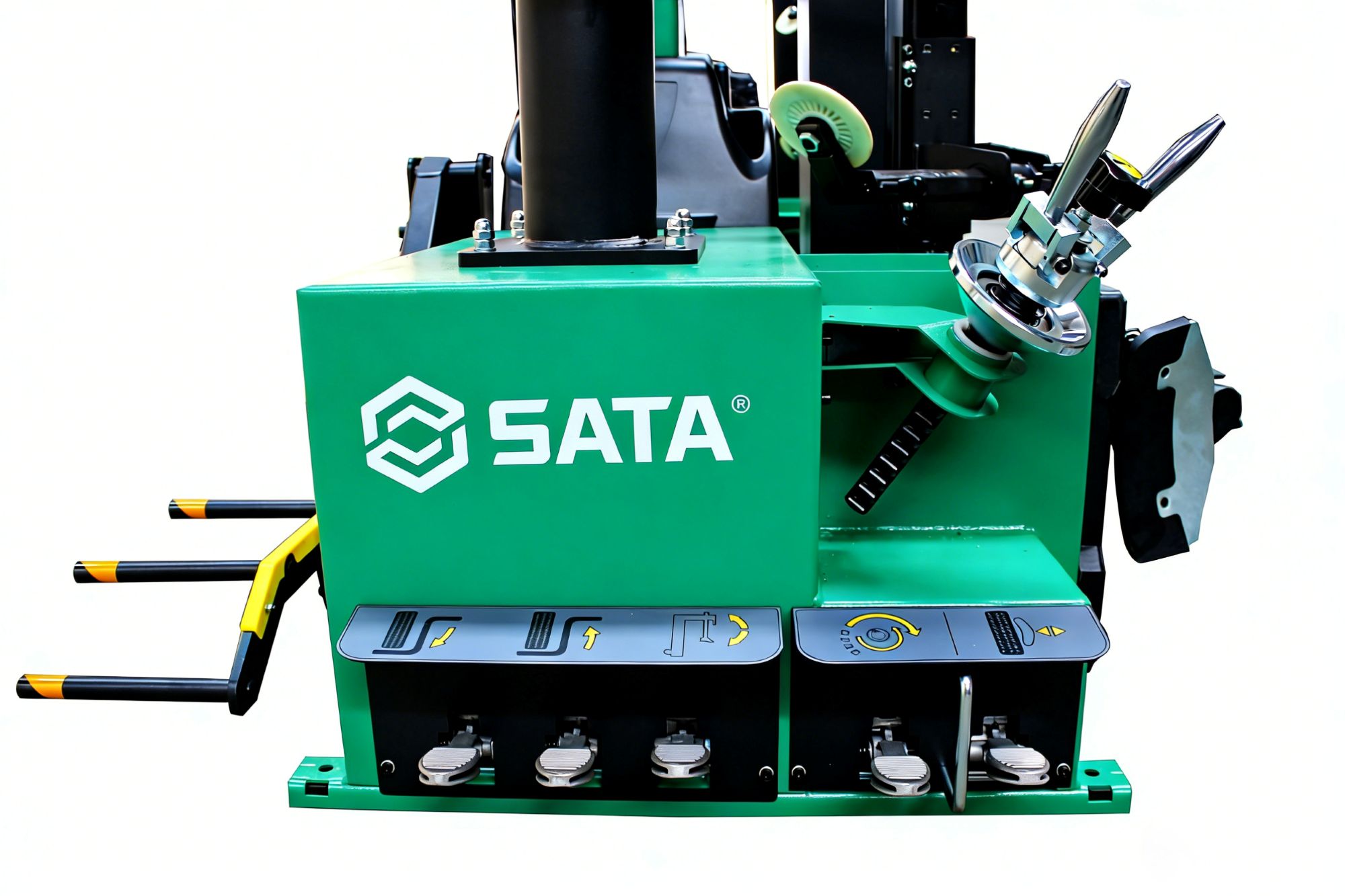

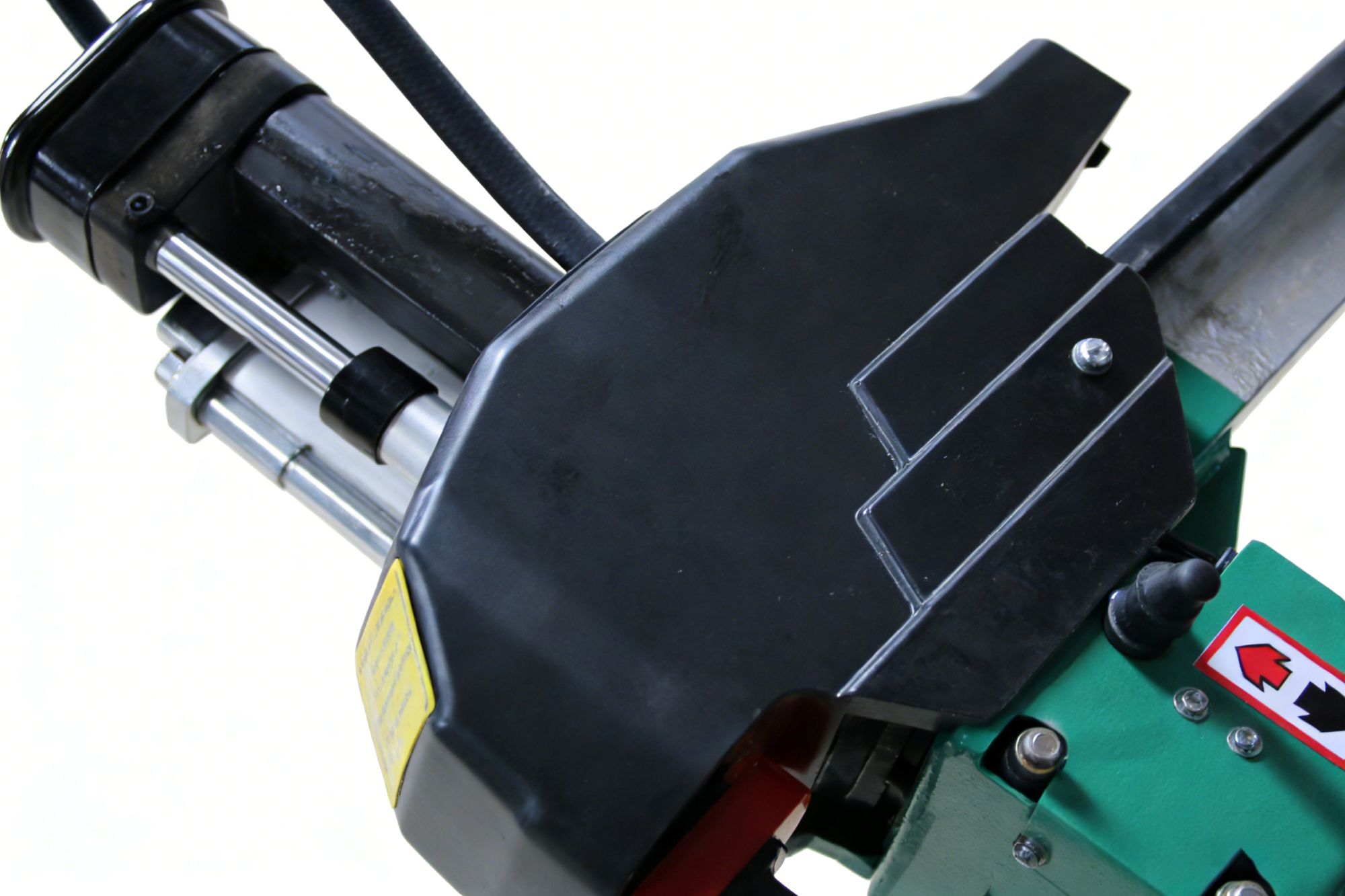

The non-pry module adopts pneumatic control for simple and convenient operation, making the removal and installation of low-profile tyres and run-flat tyres much easier

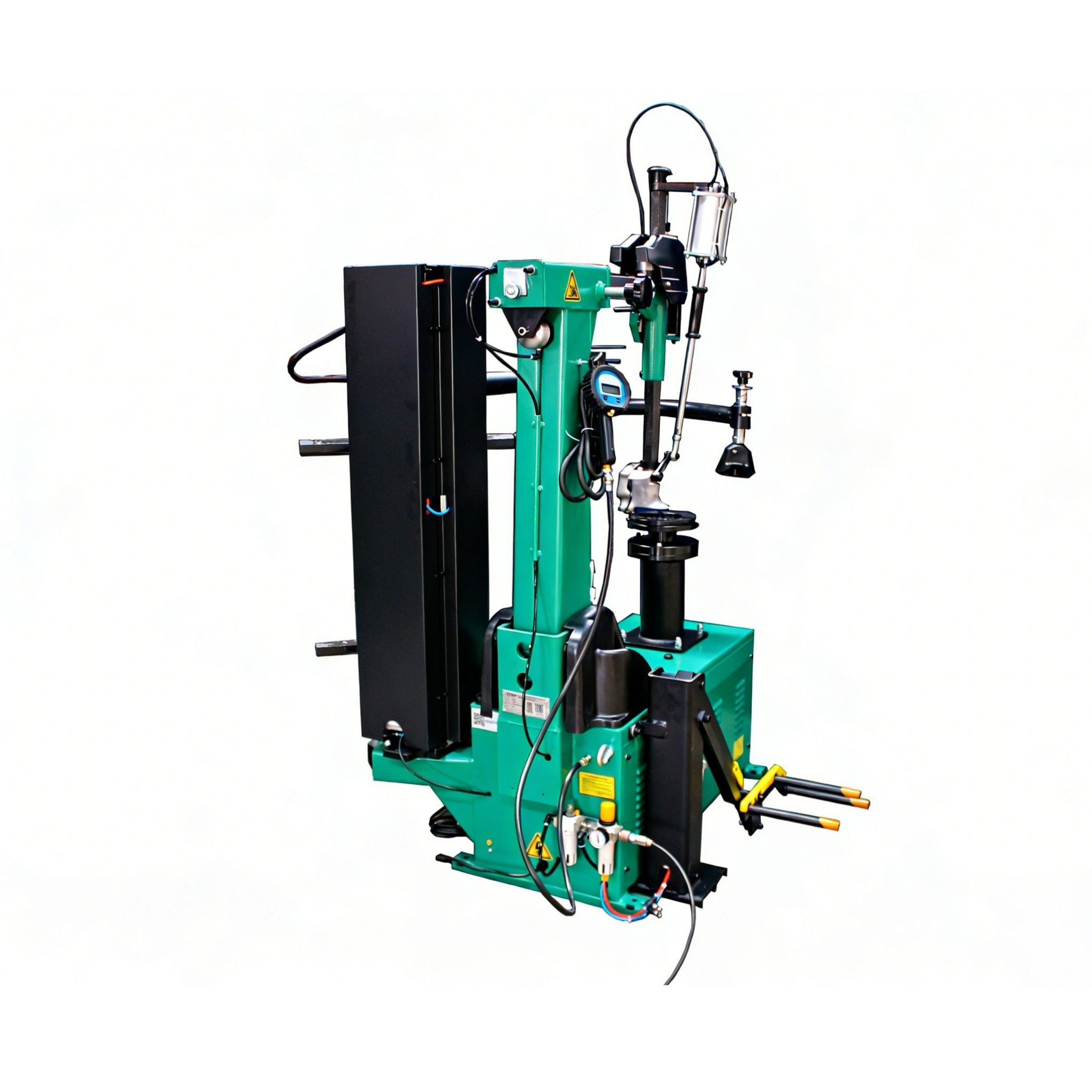

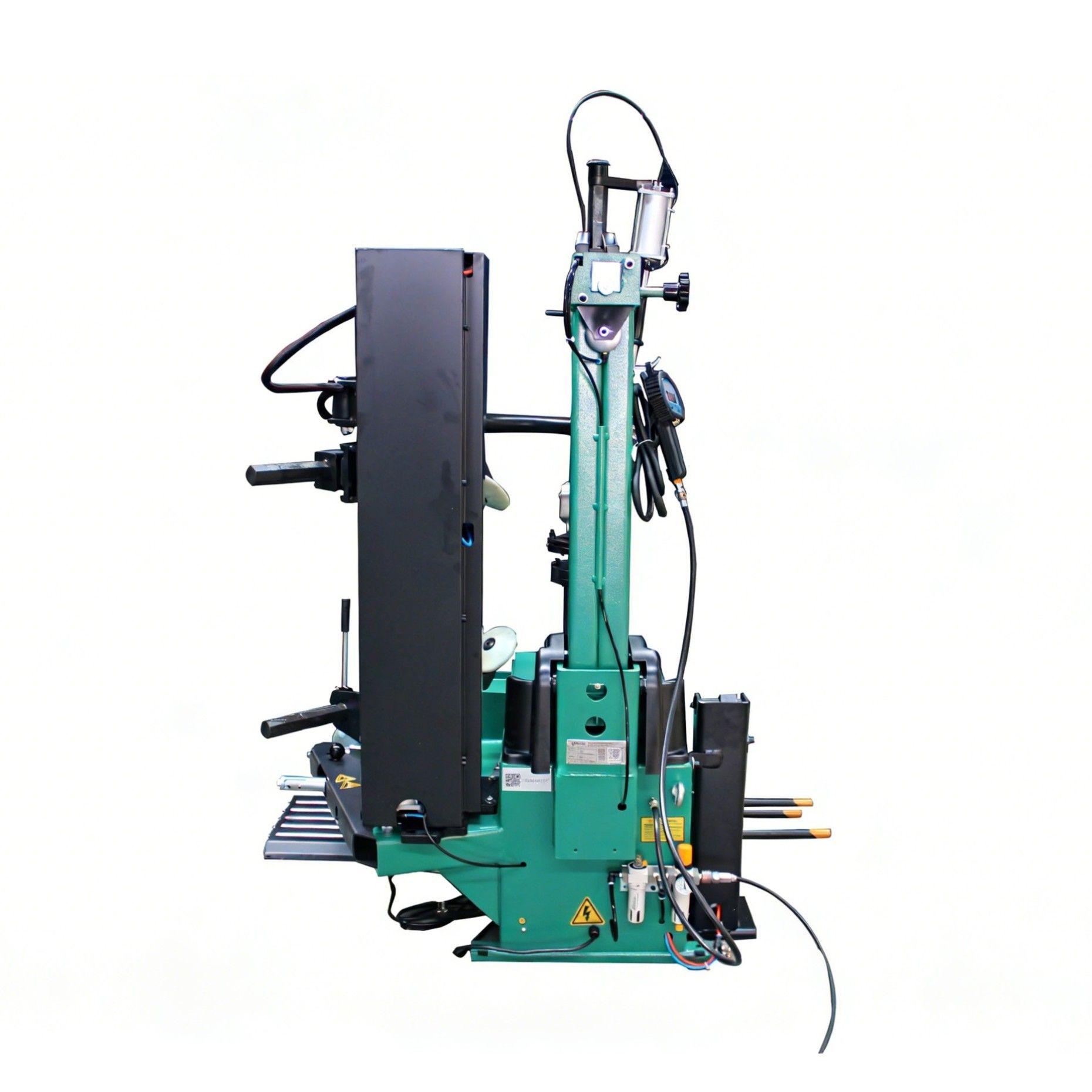

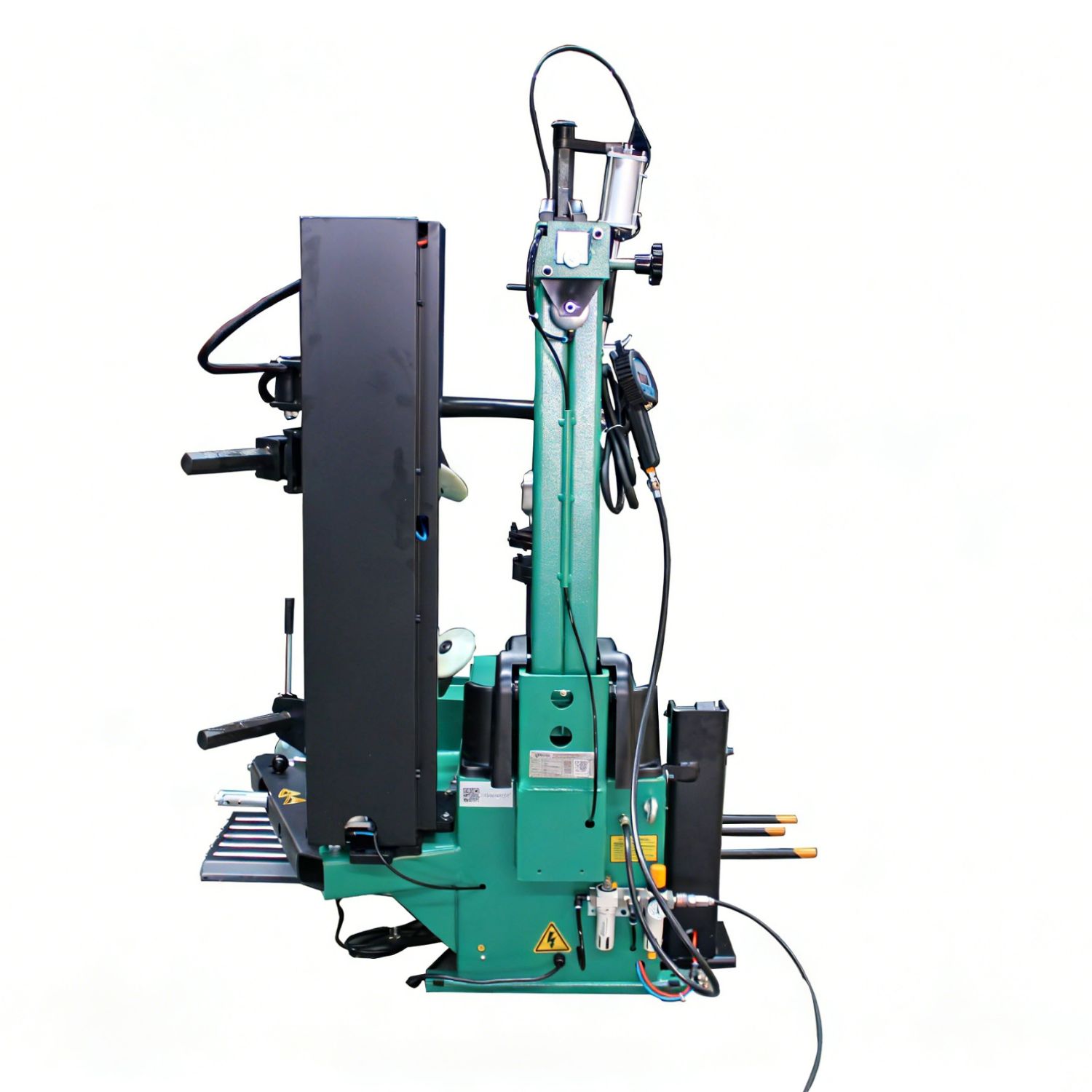

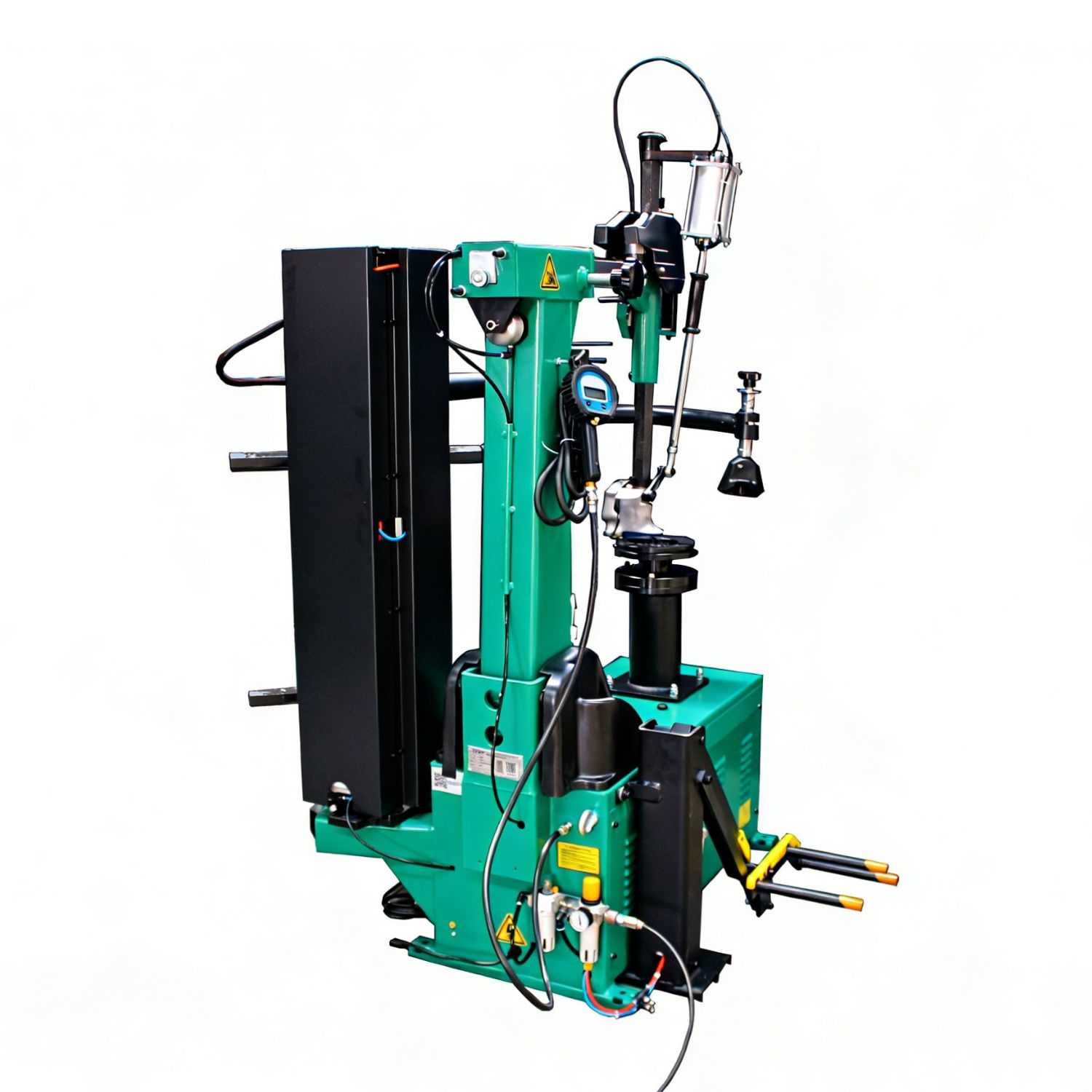

The tyre changer features a tilting-column structure. The forward tilting and backward tilting of the column are fully pneumatically controlled and locked

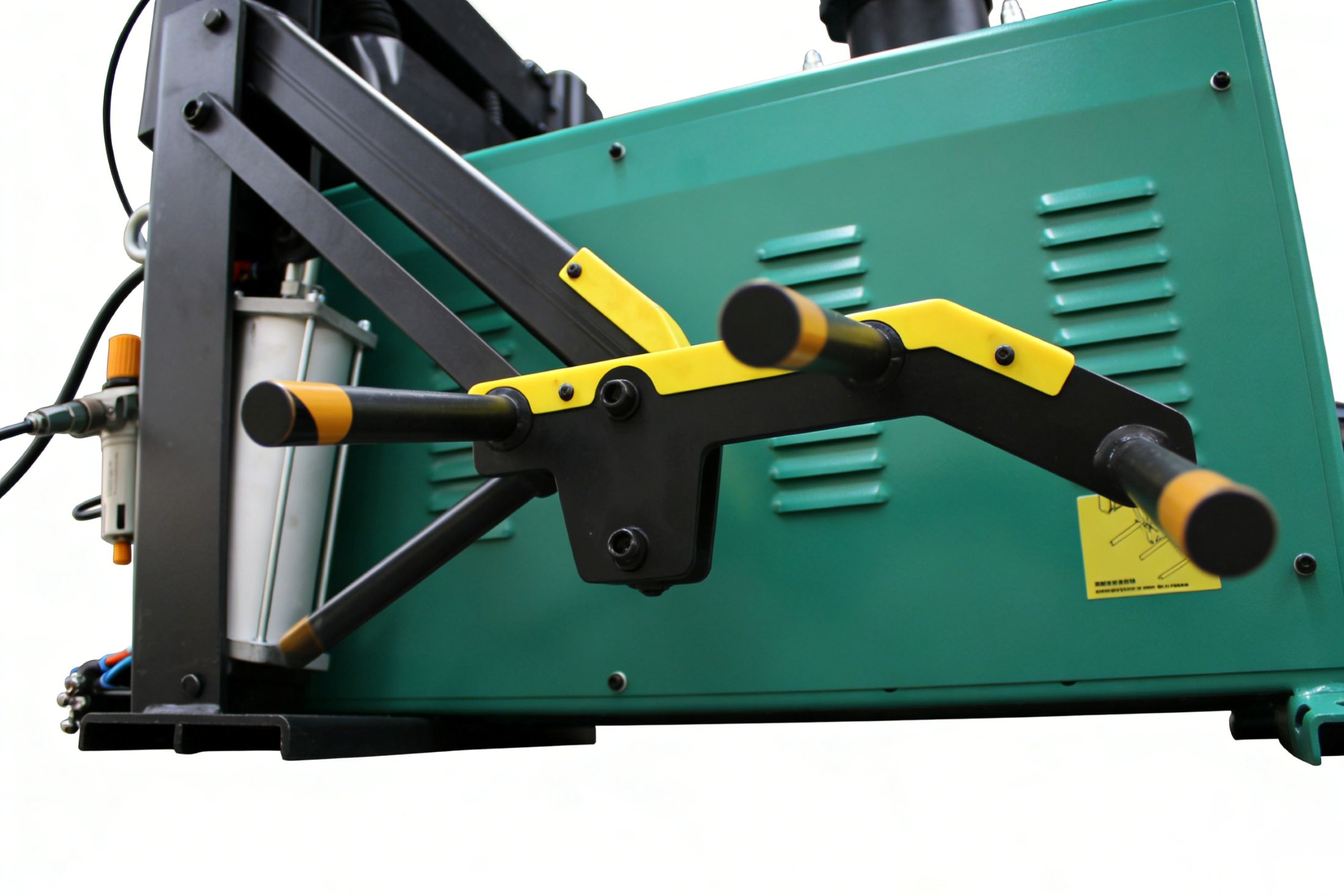

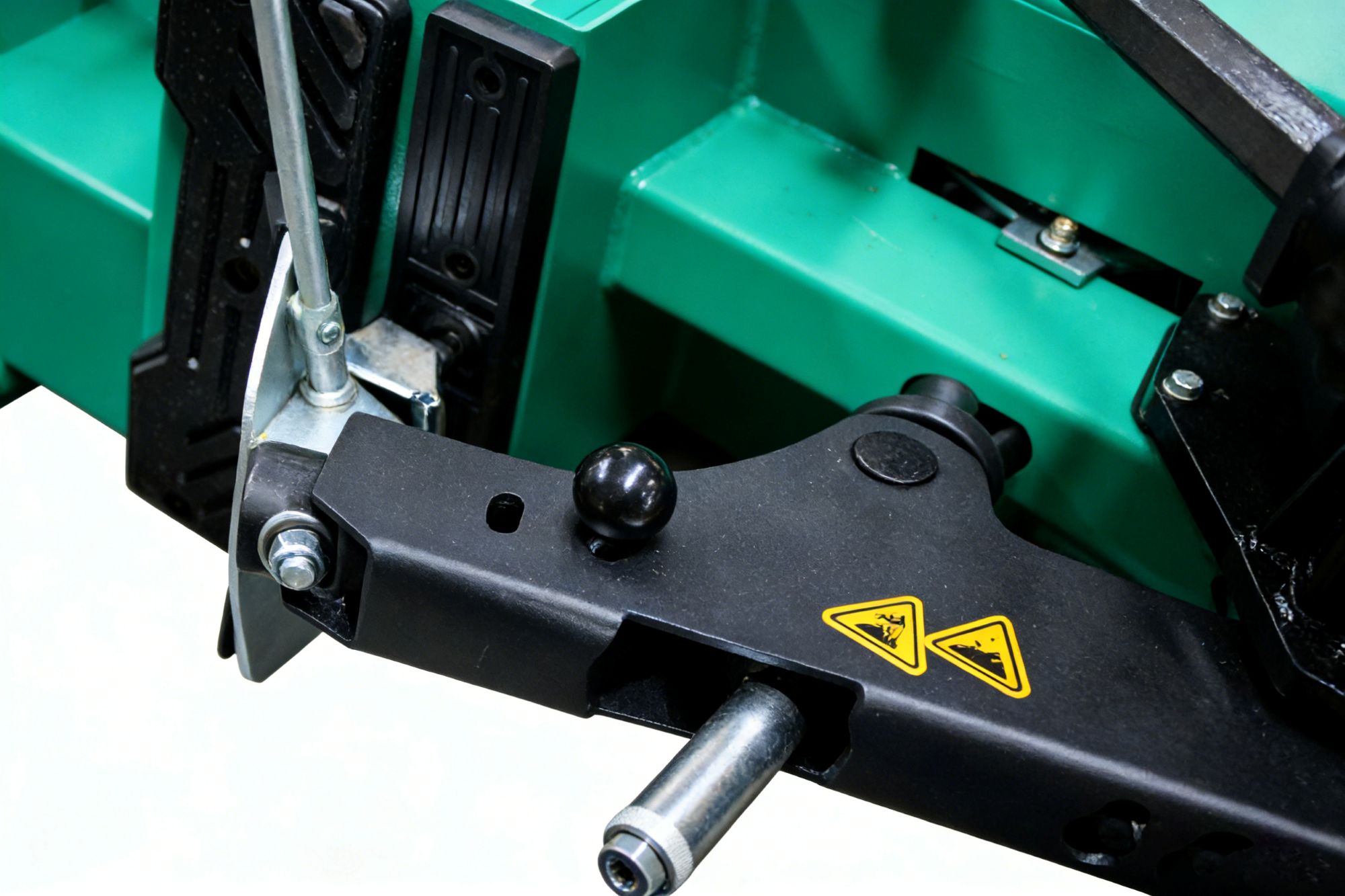

Equipped with a standard tyre lifting arm for assisted tyre mounting and demounting

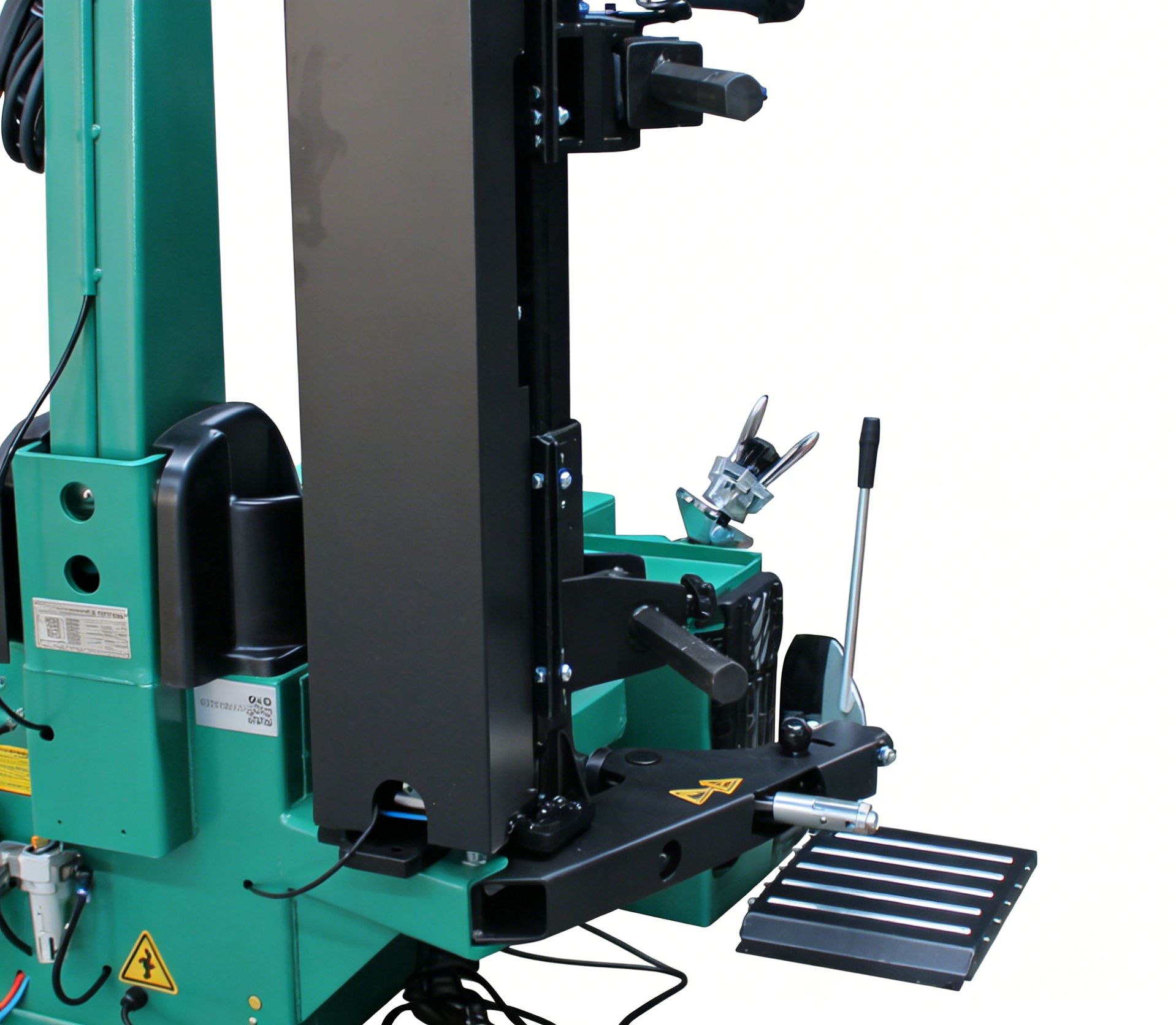

Standard 200 mm large cylinder with variable-torque assist arm provides stronger tyre-pressing force, suitable for various stiff-sidewall tyres and run-flat tyres

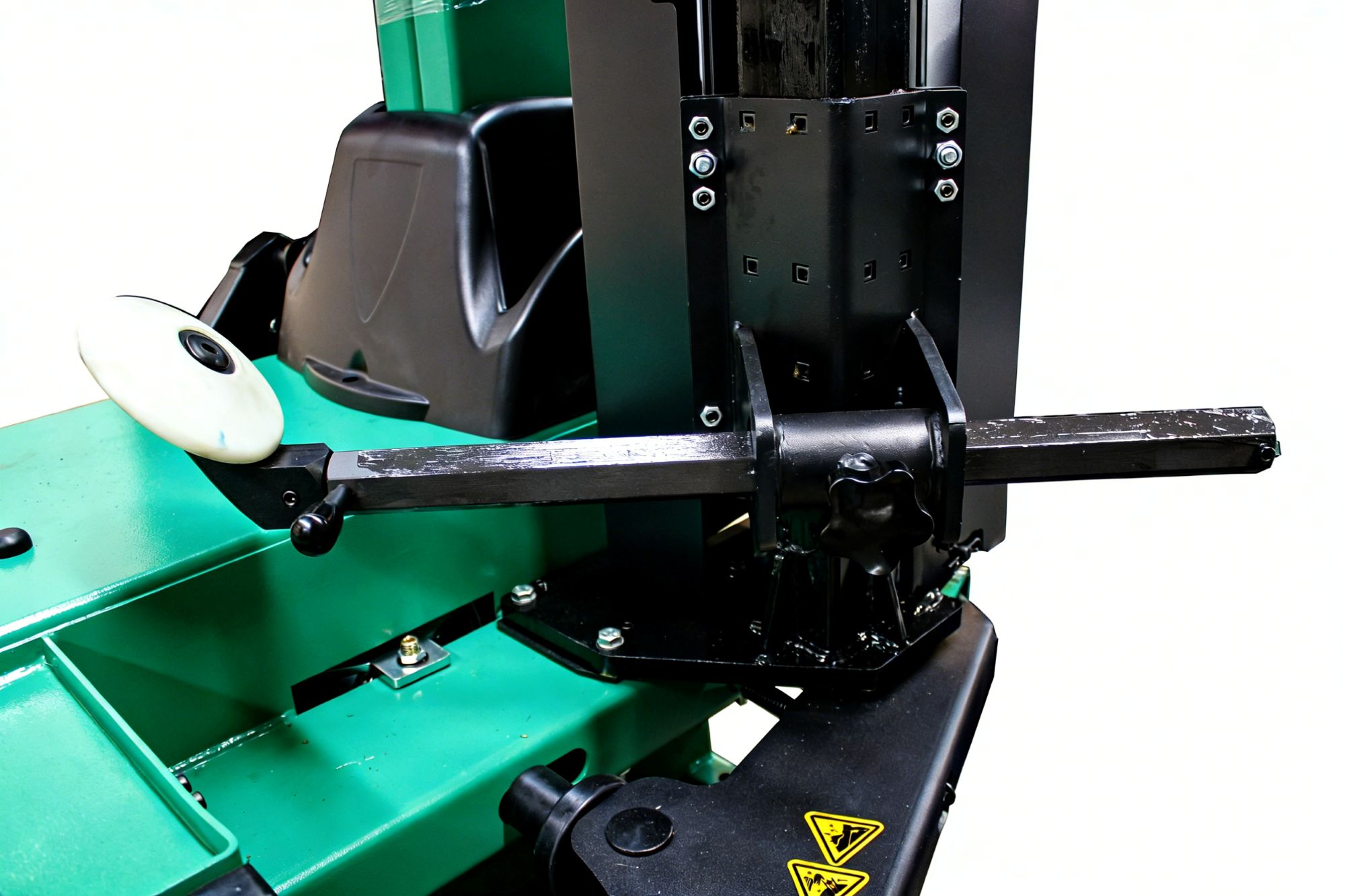

Special assist arm with independently operated upper and lower tyre rollers for easy operation and high efficiency
