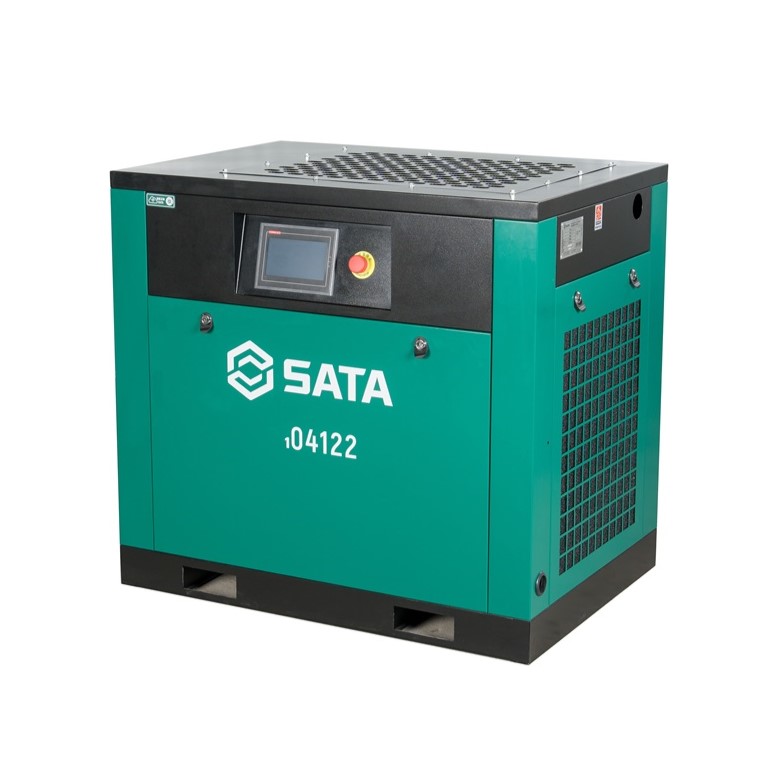

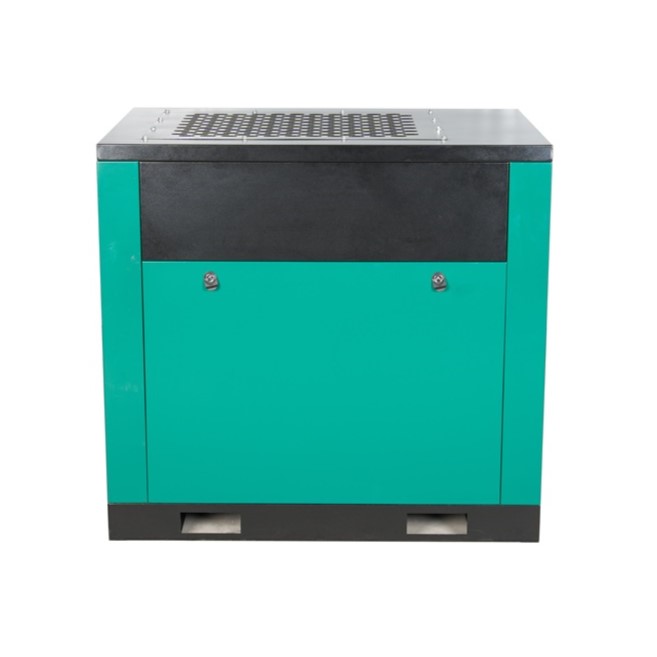

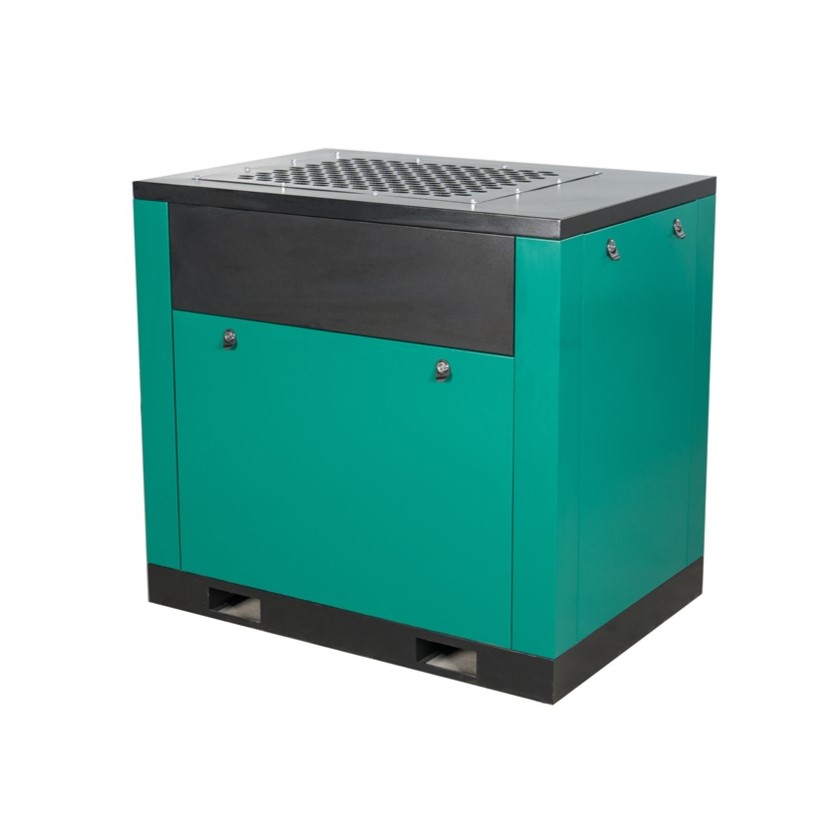

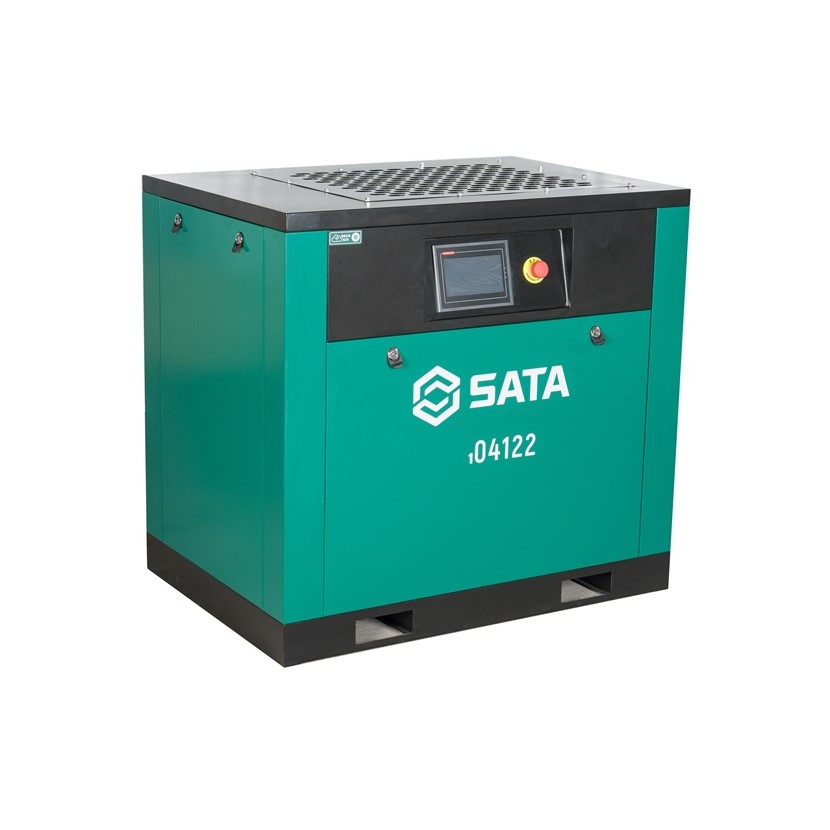

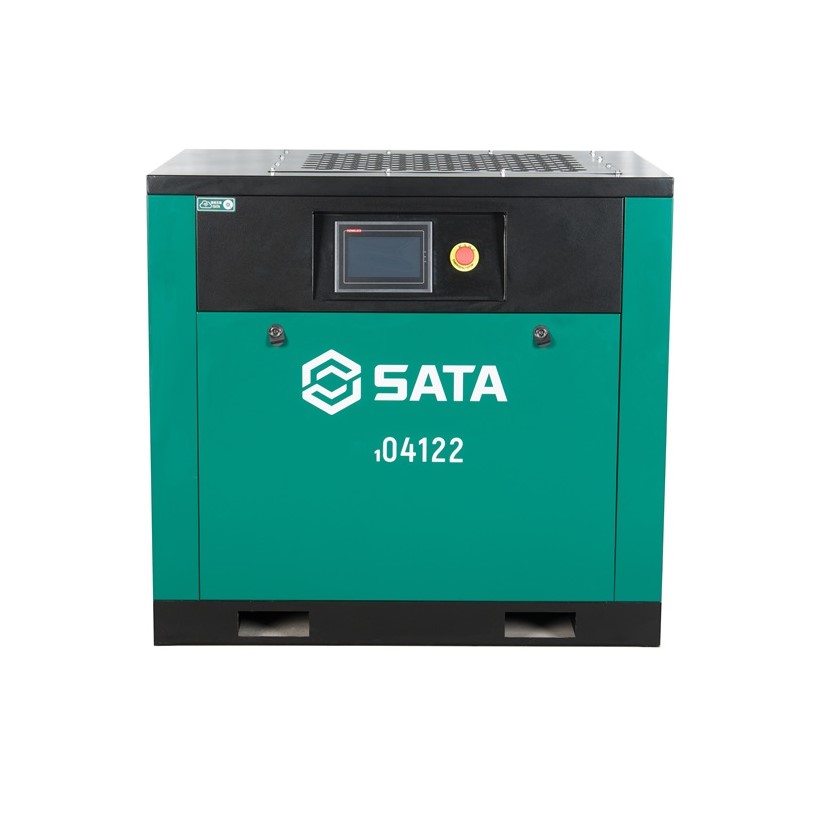

Product No. 1 04122

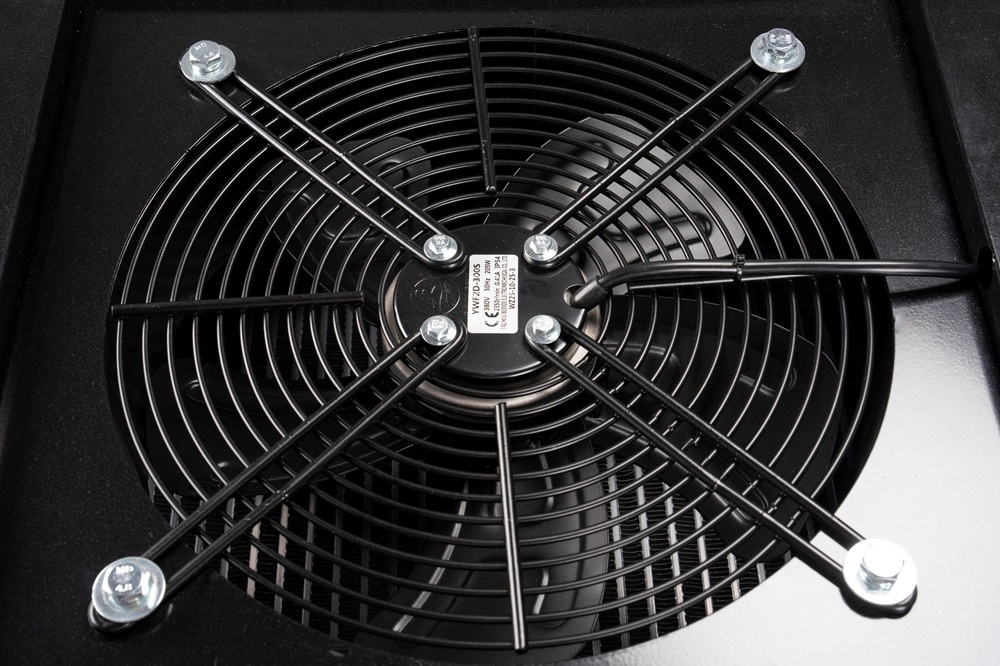

Cooling Method Air-cooled
Displacement (M³/min) 2.2
Discharge Pressure (MPa) 0.8
Noise (dB) 70±2
Power (kW) 15
Rotation speed(RPM) 3400
Dimensions(L×W×H)(MM) 1080x750x1000
Net Weight(kg) 213
Warranty Terms One-year warranty for the whole machine (excluding wearing parts), and two-year warranty for the screw airend
Hanbell screw, SKF bearings, featuring high efficiency, low noise and low energy consumption
High-efficiency permanent magnet synchronous motor with integrated coaxial design and excellent transmission efficiency
Vector frequency conversion, wide-frequency regulation and temperature control algorithm for higher stability
Hongxing intake valve for efficient intake air volume adjustment

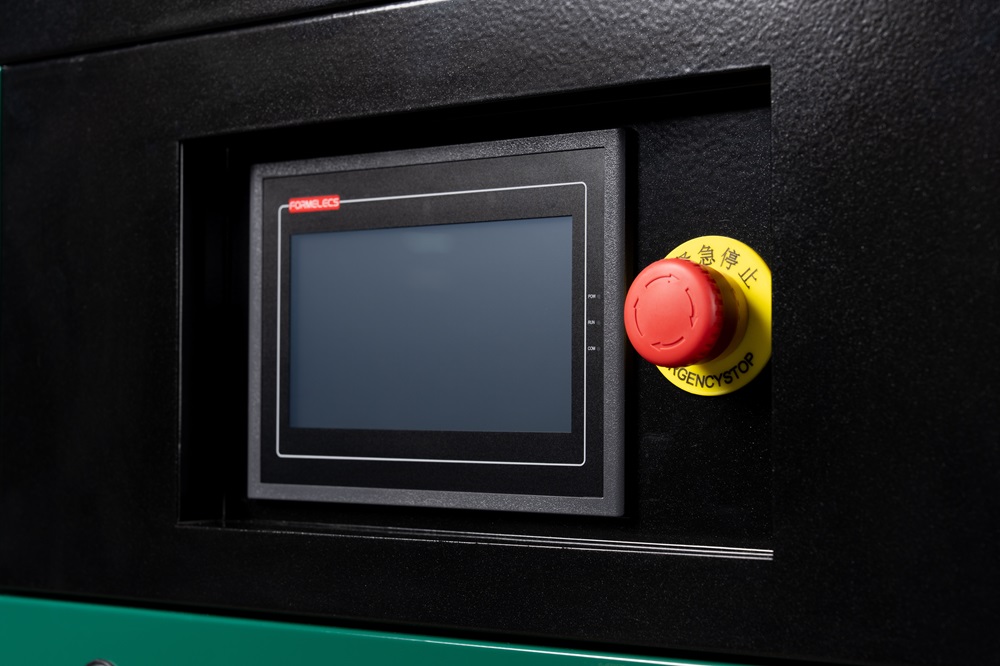

7-inch color touch screen with SATA-exclusive UI for more user-friendly operation

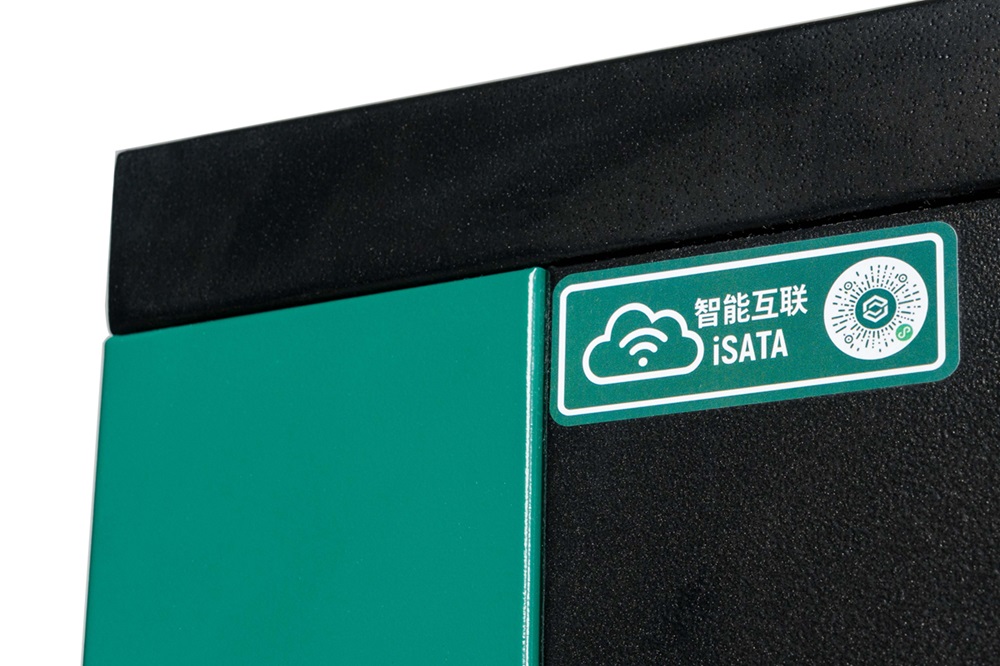

Standard-equipped intelligent interconnection: Empowered by functions such as real-time monitoring, remote control, fault early warning, maintenance reminder and scheduled maintenance, the overall intelligence level is comprehensively upgraded
