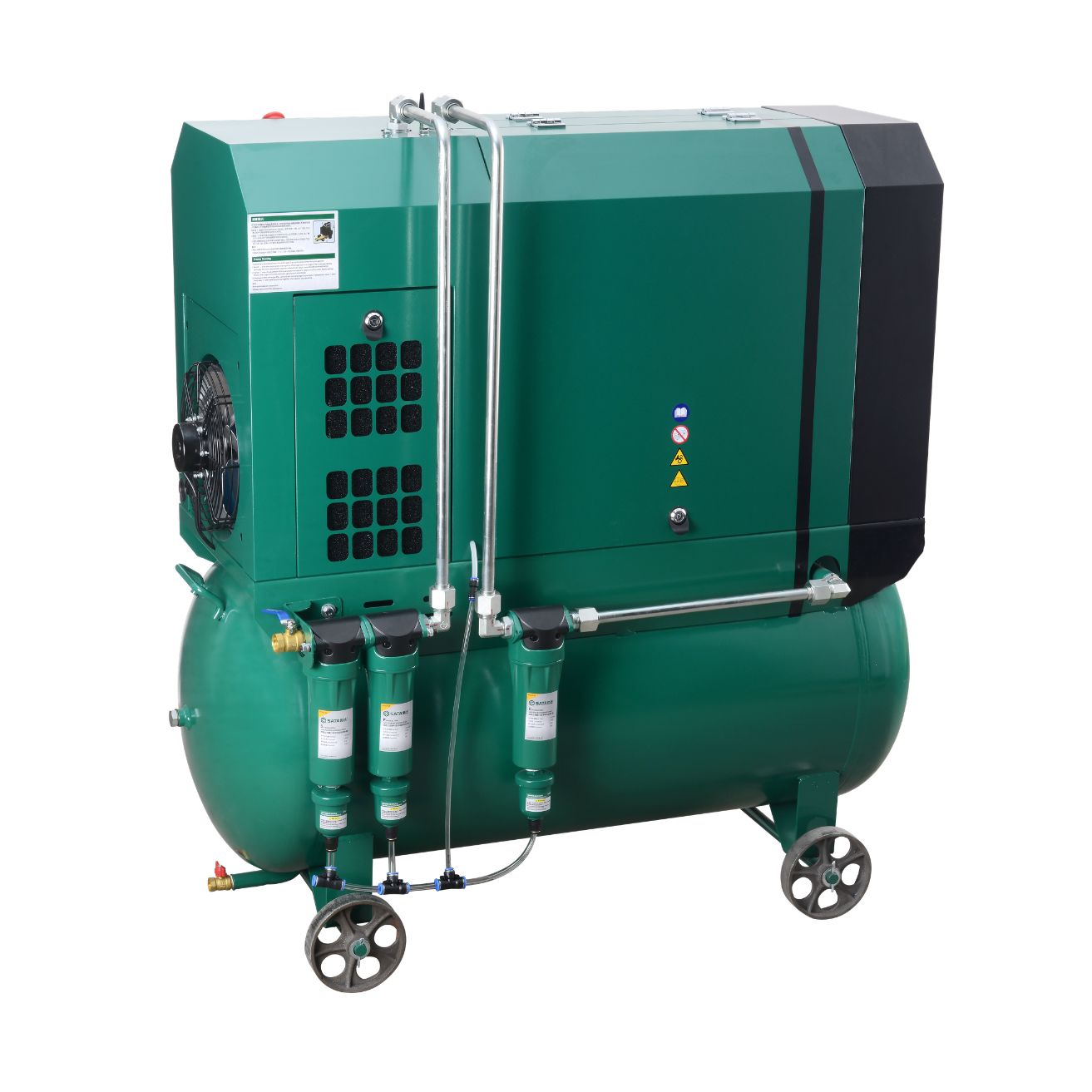

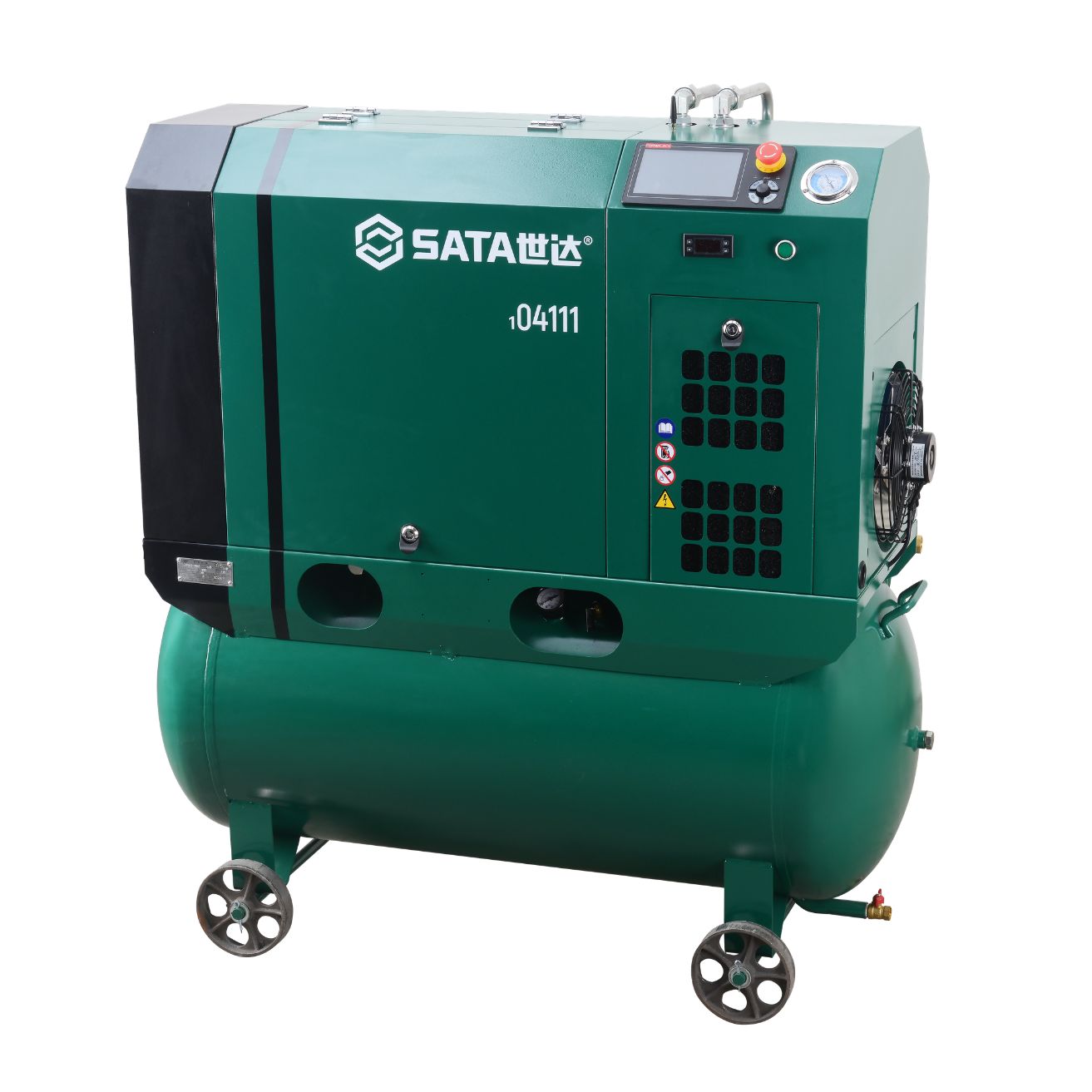

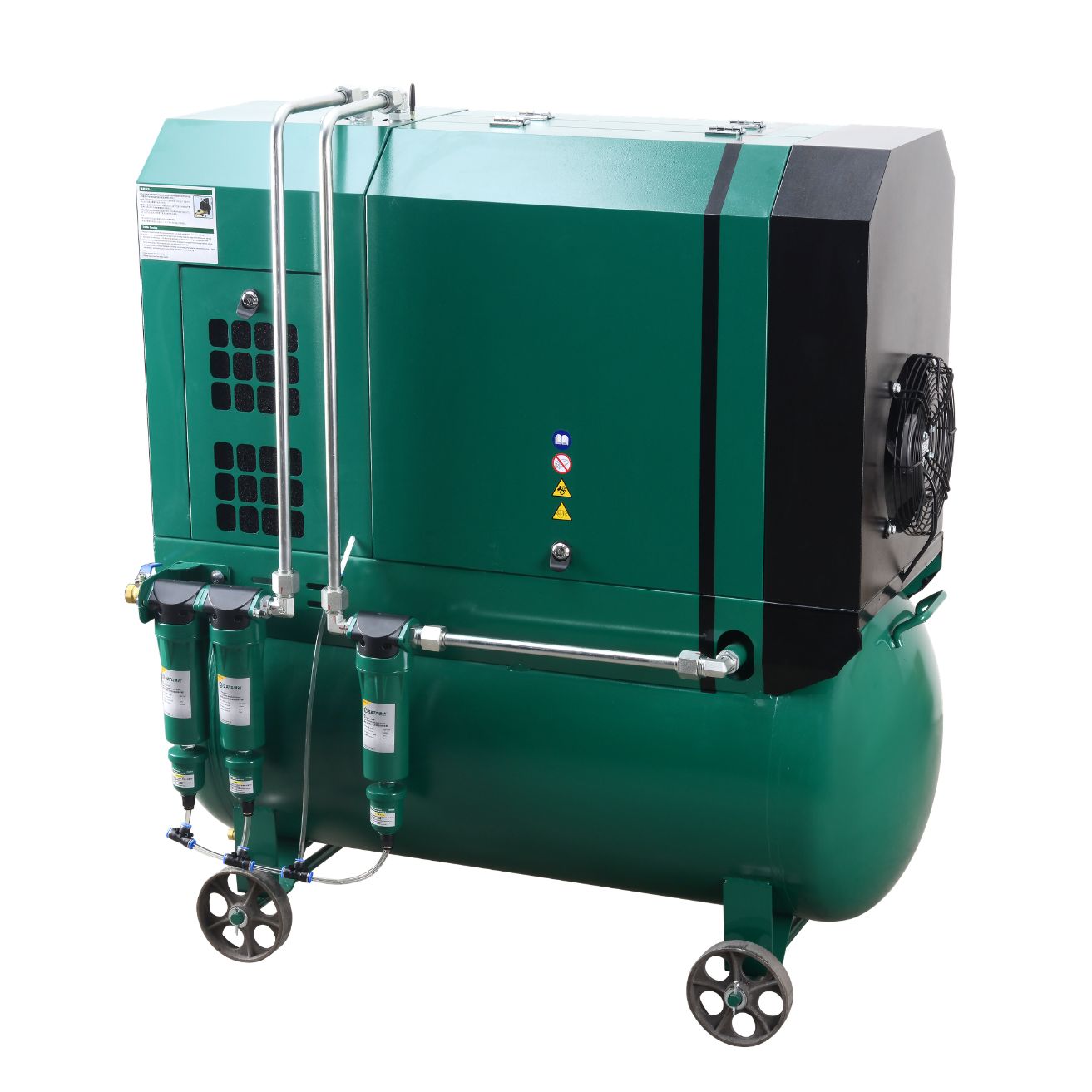

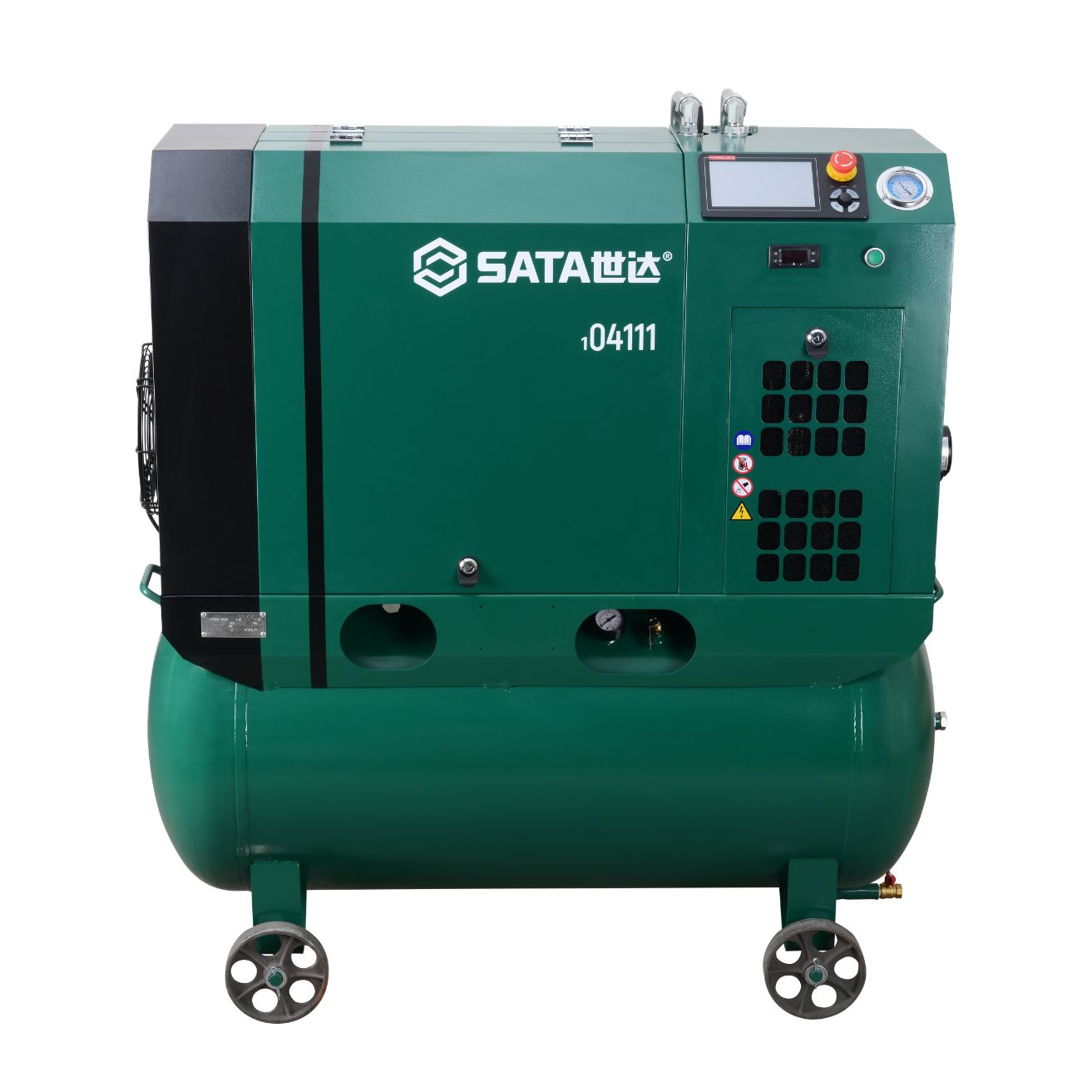

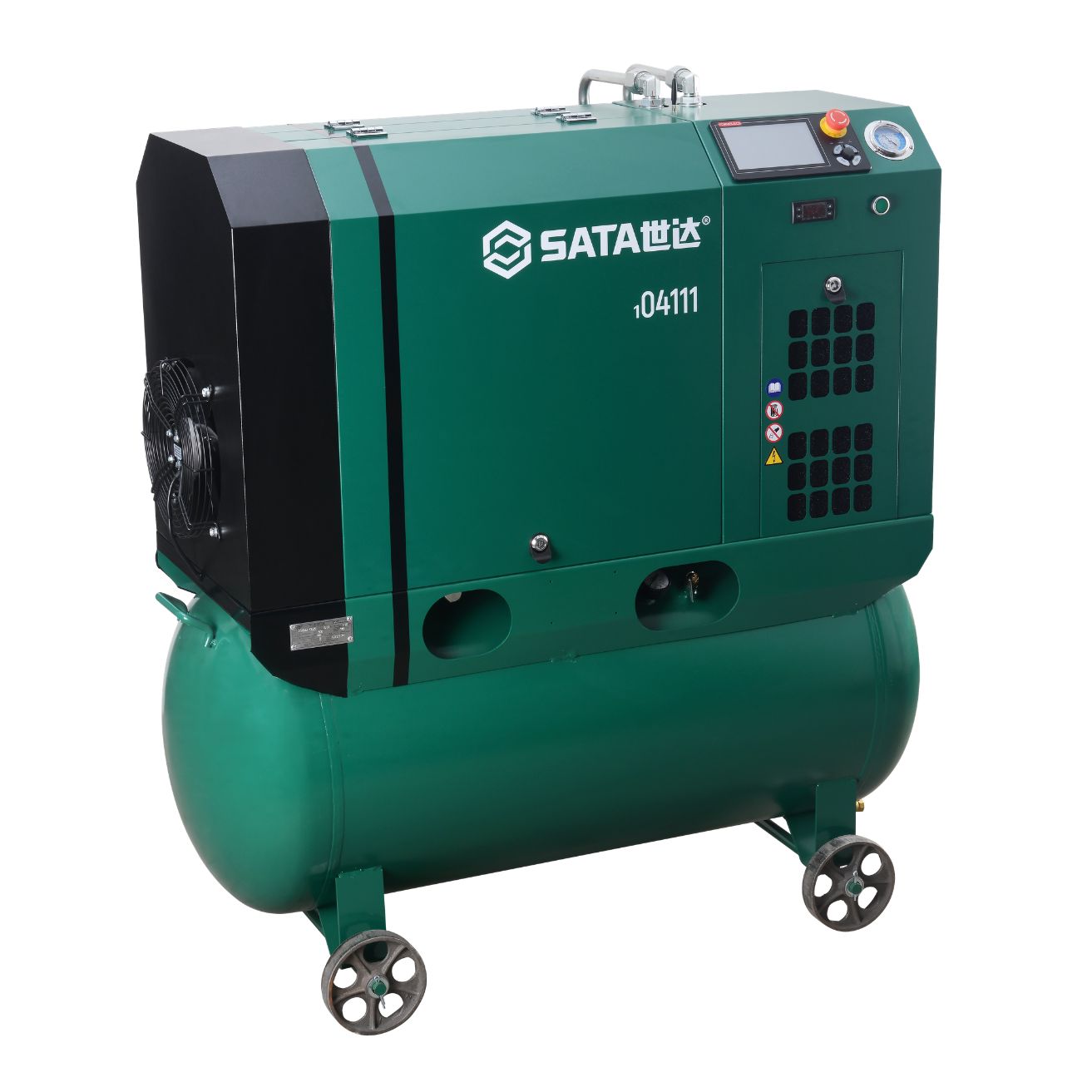

Product No. 1 04111
Power (kW) 7.5
Displacement (M³/min) 0.85
Discharge Pressure (MPa) 1
Rated Voltage(V) Dryer 220V/50Hz
Compressor 380V/50Hz
Volume (L) 300
Air Dryer Inlet Air Temp. (℃) ≤65
Refrigerant Compressor Power (kW) 0.26
Dew Point (℃) 2~10
Dust Content (um) 0.01
Oil Content (ppm) 0.01
Dimensions (MM) 1360x678x1450
Net Weight (kg) 265
Warranty One-year warranty for the whole machine (excluding wearing parts), and two-year warranty for the screw airend

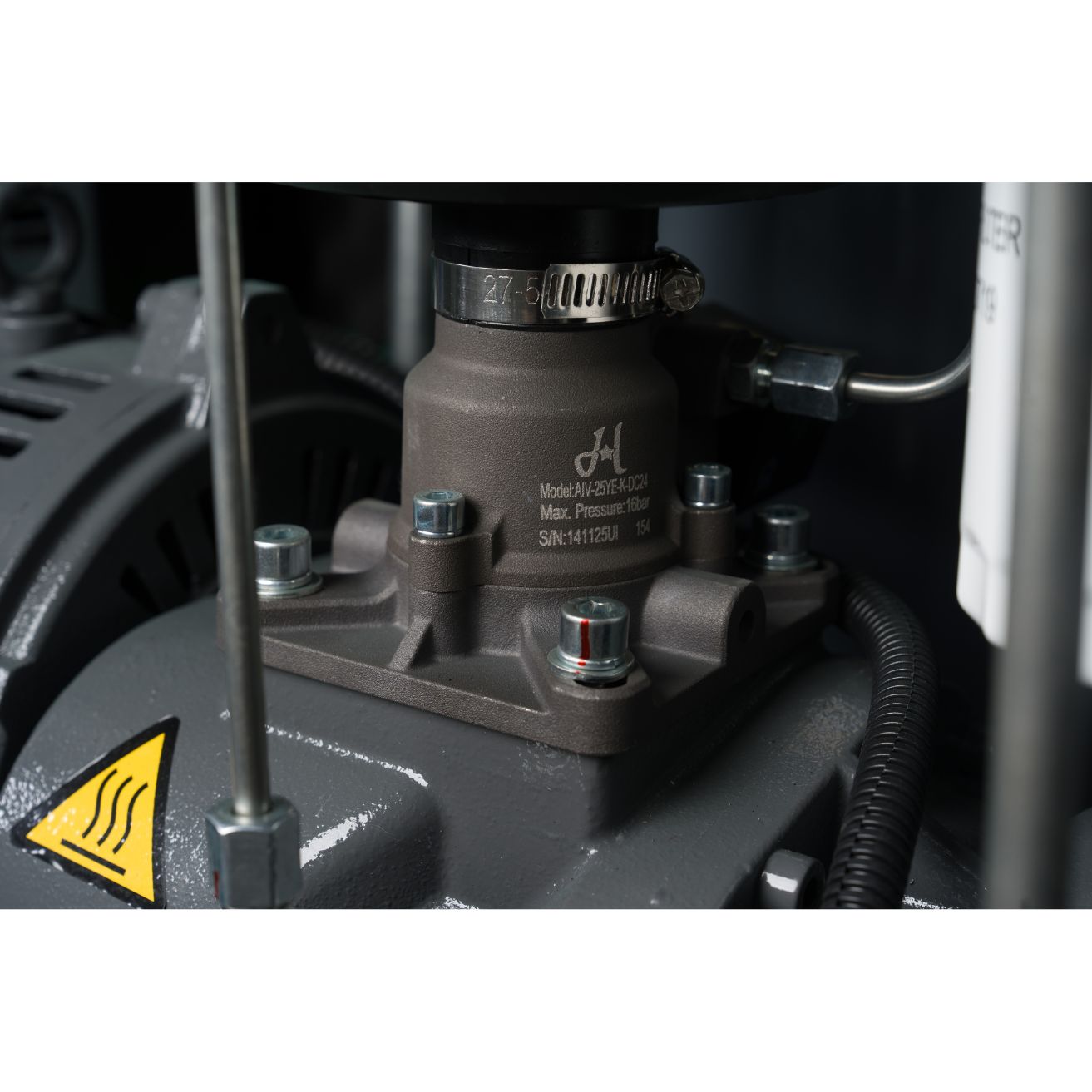

High-efficiency screw rotor, low vibration, noise & temperature rise
High-efficiency PM motor, integrated coaxial structure, high transmission efficiency

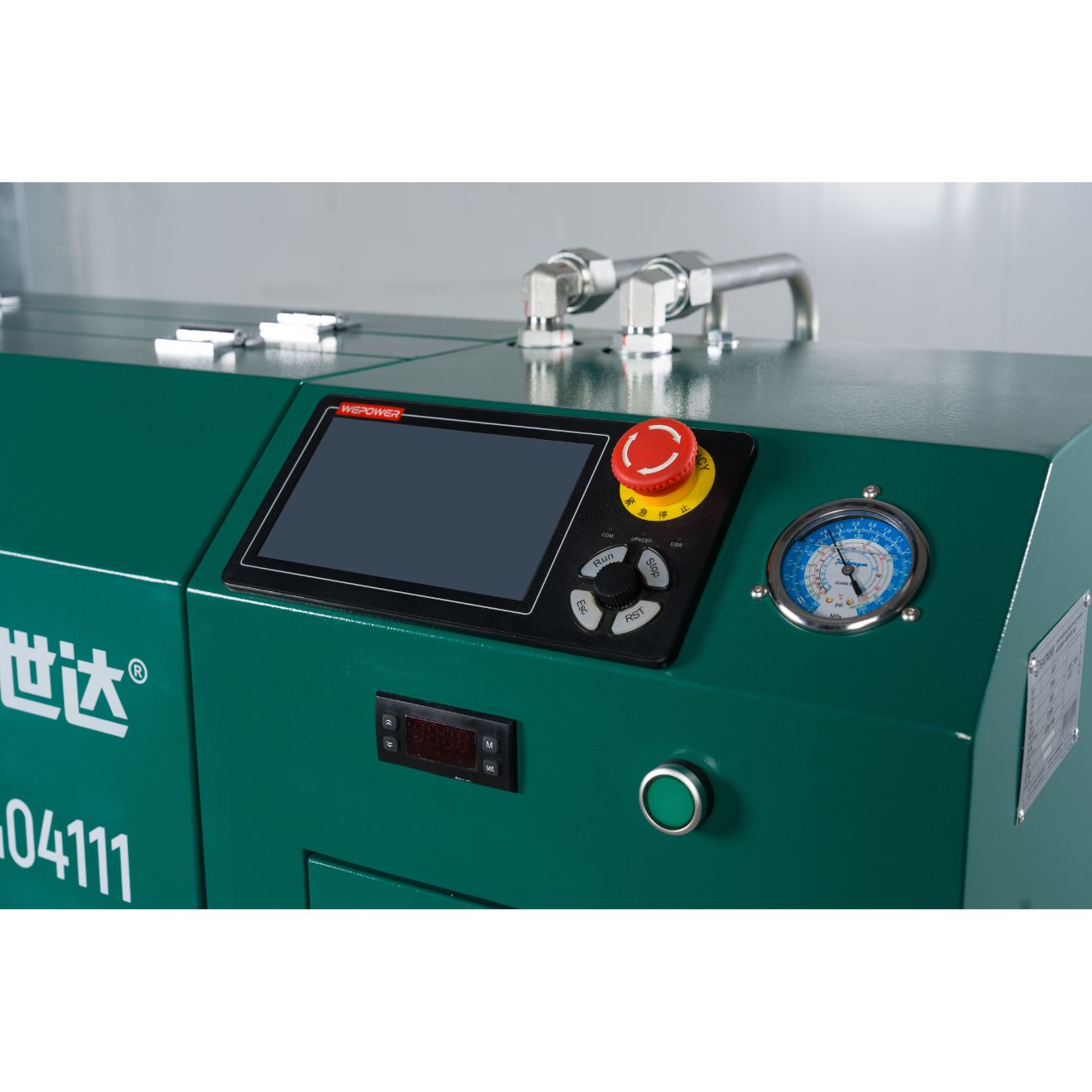

7-inch color touch screen with SATA UI, user-friendly operation
Vector frequency control, wide adjustment & stable temperature control

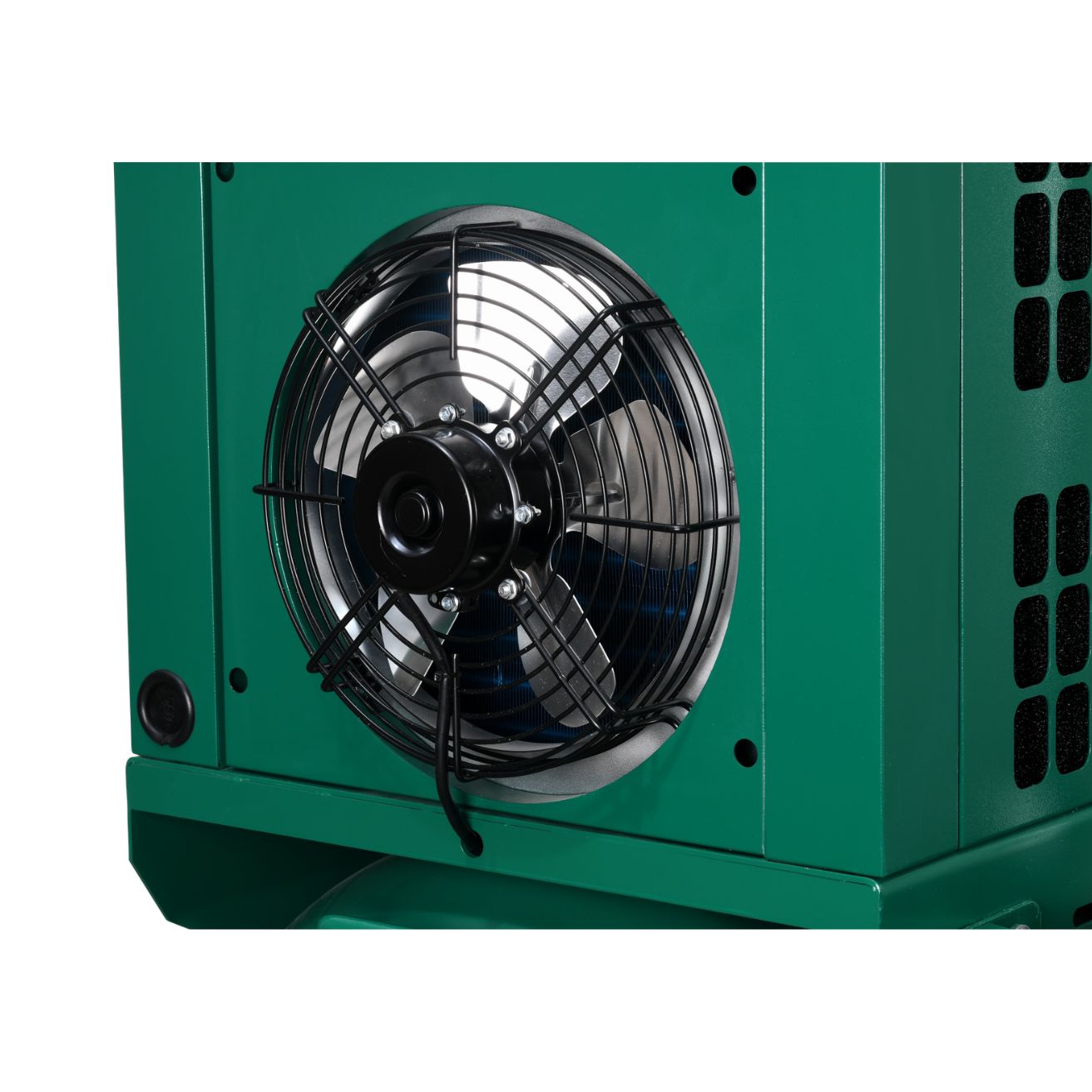

High-temperature refrigerated air dryer for harsh working conditions

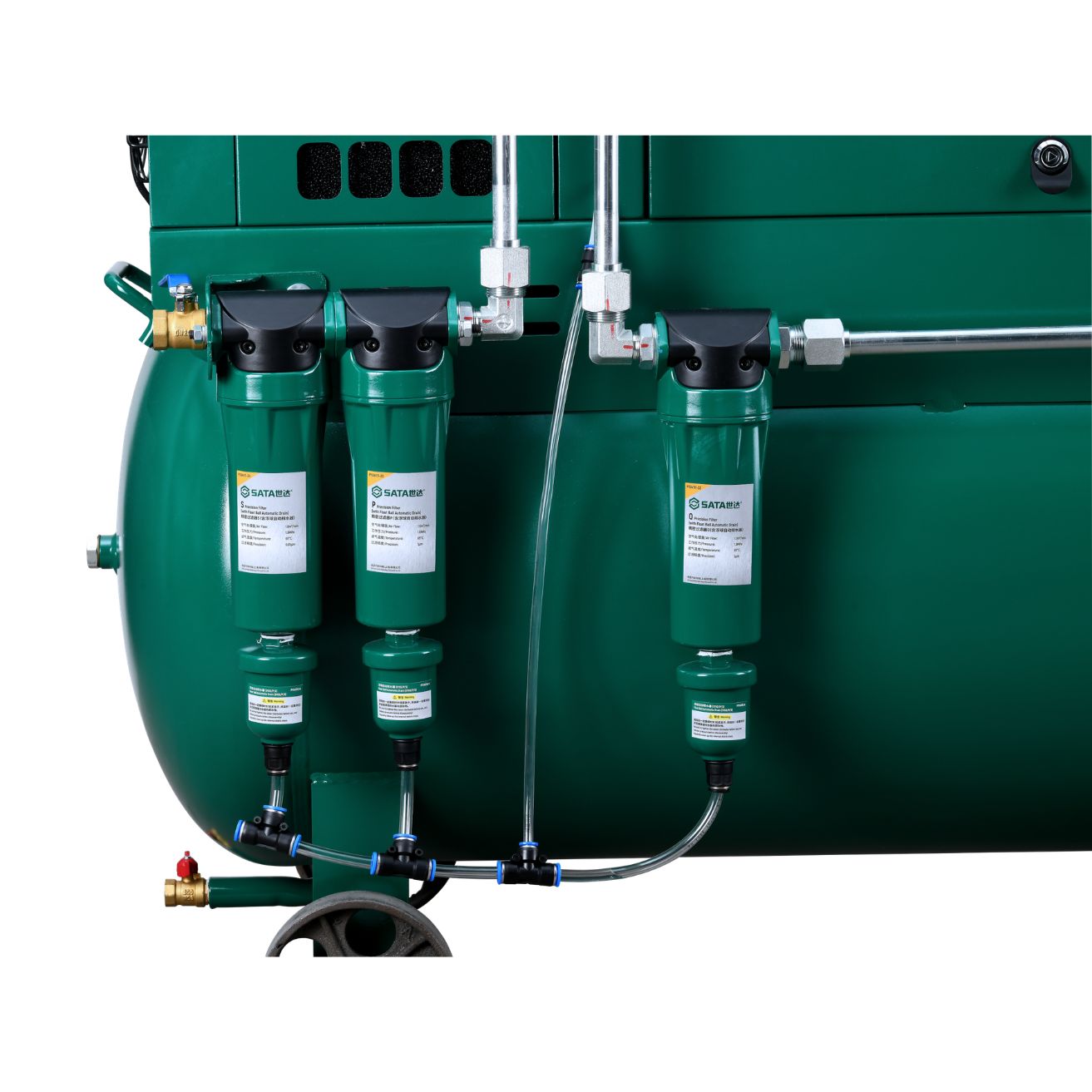

Q/P/S 3-stage filtration, precision up to 0.01μm, clean & dry air

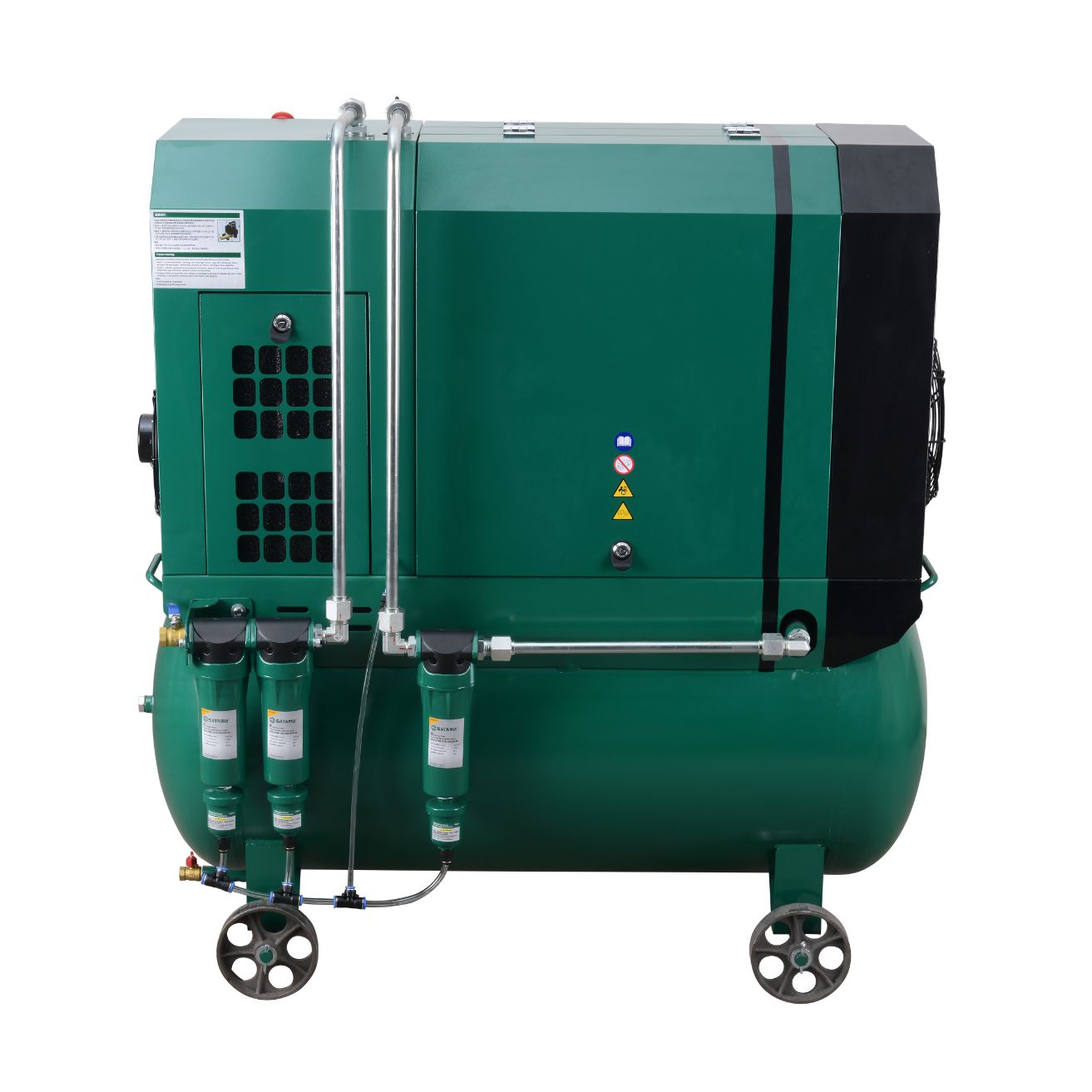

Integrated design, plug-and-play, 70% smaller footprint
New-gen intelligent interconnection: real-time monitoring, remote control, fault & maintenance alerts

*Spare Parts for the AE5818 Remain Available
